Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 197302 |

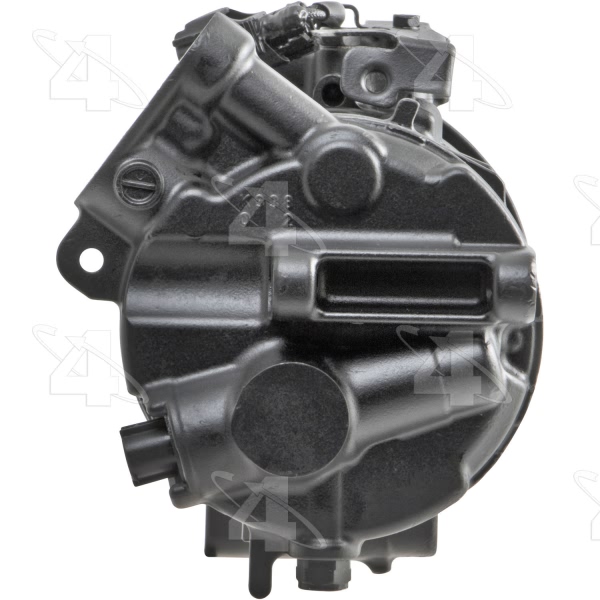

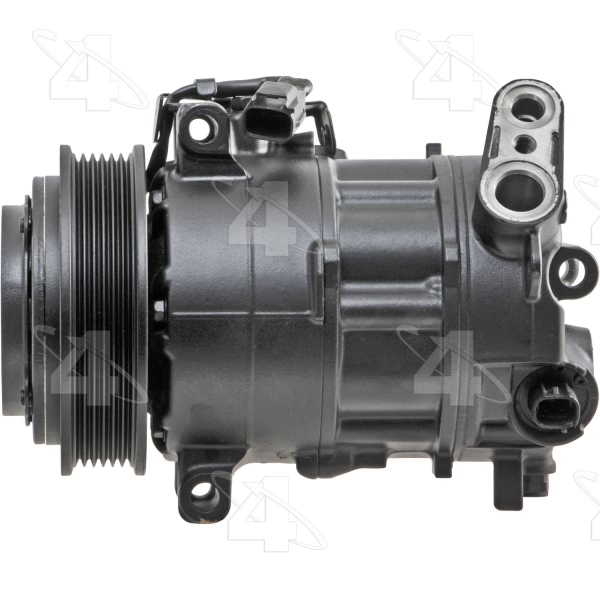

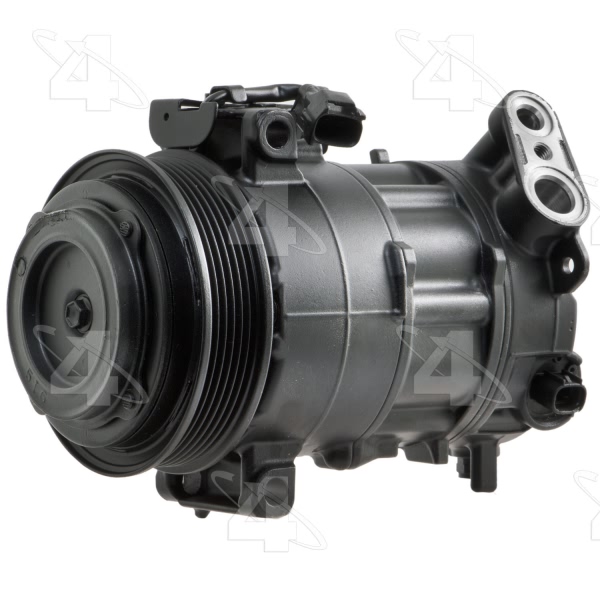

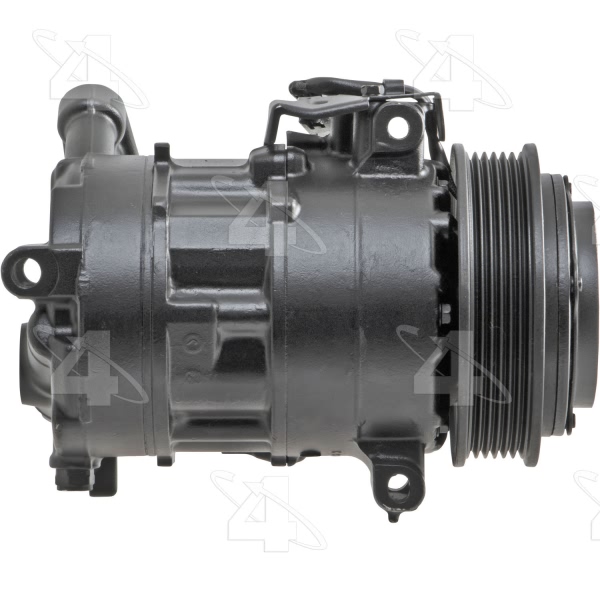

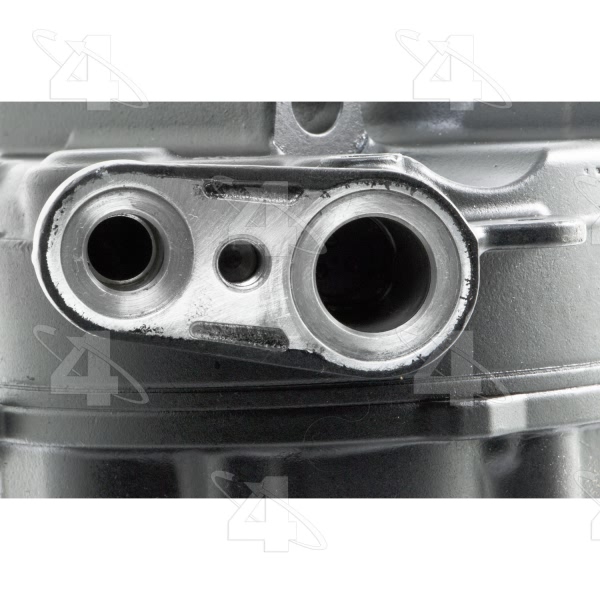

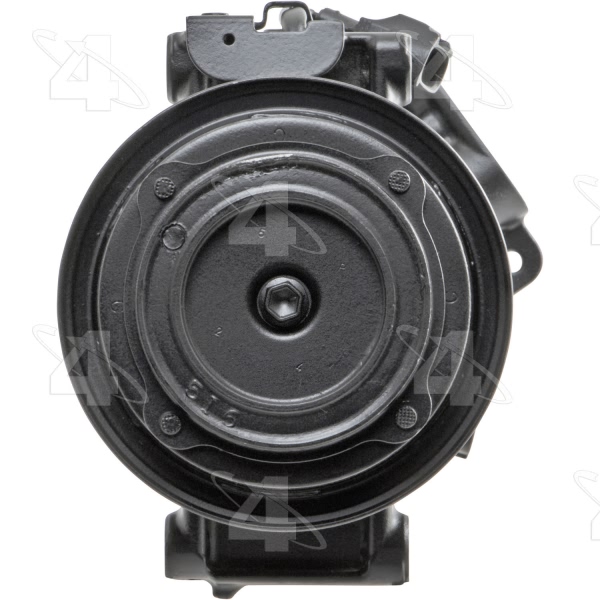

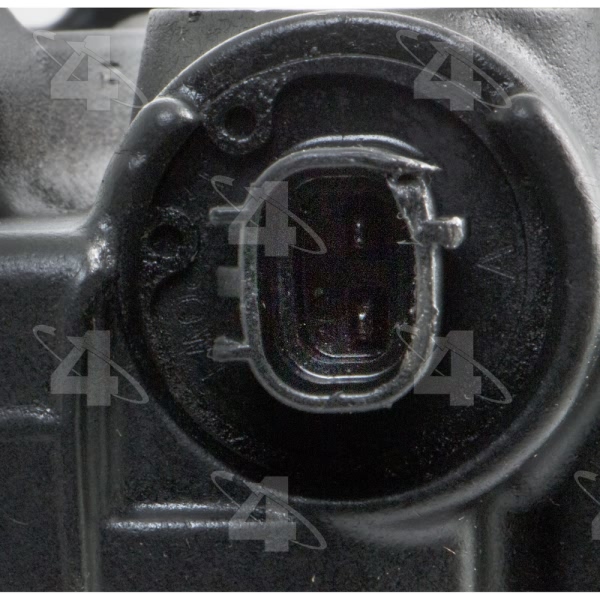

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | Lead Wire |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 6SBU16C |

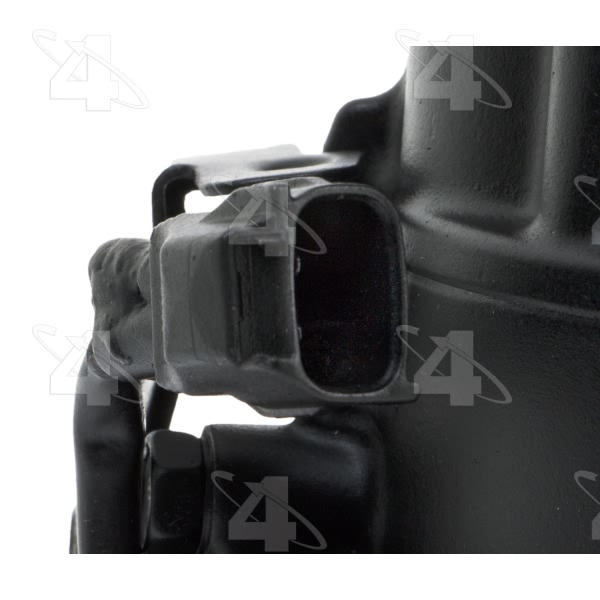

| ECV Harness Connector | Compressor SE10F, Vehicle SE10M |
| Mounting Hardware | Not Included |
| Mounting Type | 3 Tangent One on Rear Head |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | 24402 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24404 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | Lead Wire |
| Pulley Outside Diameter | Lead Wire |
| Pulley Ridge Diameter | Lead Wire |
| Refrigerant Type | R134a |
| Terminal Type | Lead Wire |
| UPC | 096361629240 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013 Dodge Dart | All Trims | 4 Cyl 1.4L |
| 2013-2016 Dodge Dart | All Trims | 4 Cyl 2.0L |
| 2013-2016 Dodge Dart | All Trims | 4 Cyl 2.4L |
