Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 197334 |

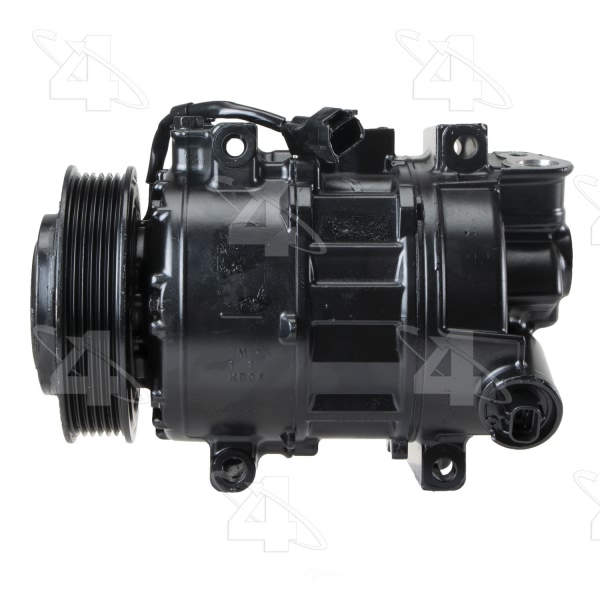

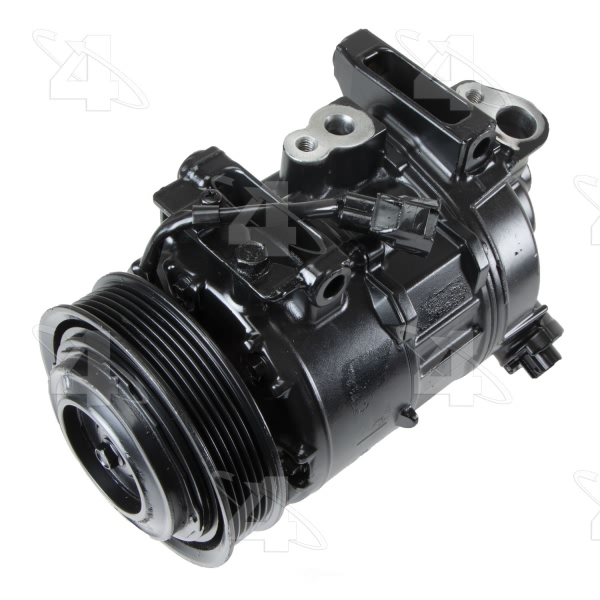

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.70 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | 7SBH17C |
| Distance From Clutch To Mounting Flange | 0.90 |
| Mounting Hardware | Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | 24402 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24404 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.70 |
| Pulley Outside Diameter | 4.70 |
| Pulley Ridge Diameter | 4.70 |
| Refrigerant Type | R-134a or R1234yf |
| Terminal Type | Lead Wire |
| UPC | 096361098244 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2014-2019 Ram 1500 | All Trims | 6 Cyl 3.6L |
| 2019 Ram 1500 Classic | All Trims | 6 Cyl 3.6L |
