Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57229 |
| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.500 |
| Coil Clock Position | 12 |
| Coil Type | Spade |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | R4 Heavy |

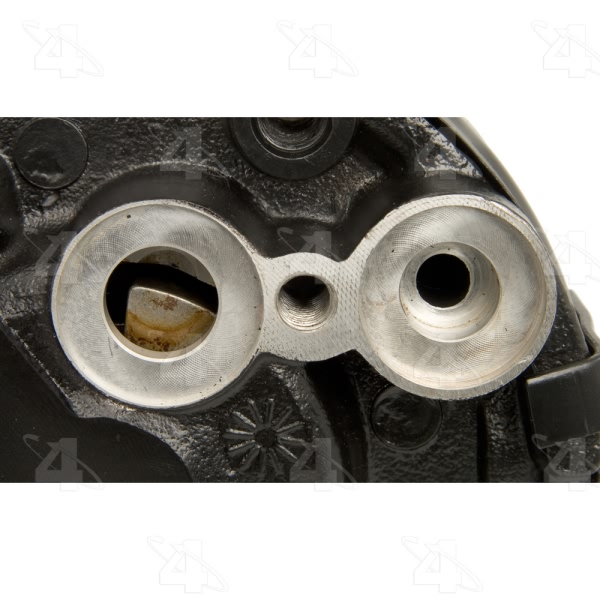

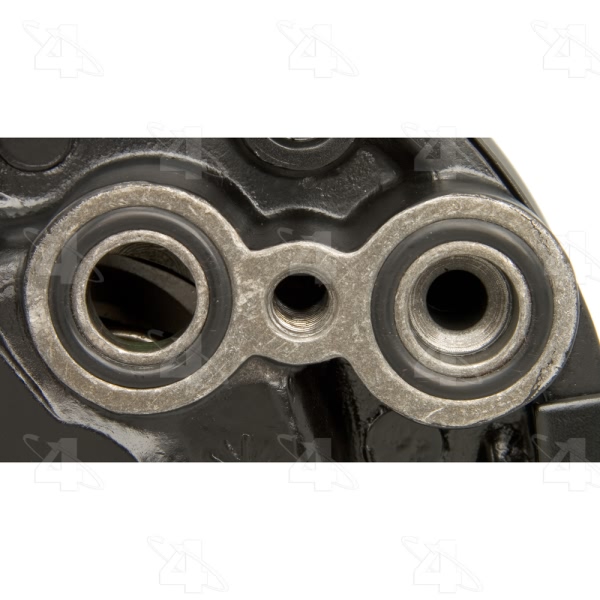

| Discharge Port Type | O-Ring / Sealing Washer |
| Distance From Clutch To Mounting Flange | 1.203125 |
| Mounting Hardware | Not Included |
| Mounting Type | Case Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24619] / Green Oval O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 139.700 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.500 |
| Pulley Outside Diameter | 5.500 |
| Pulley Ridge Diameter | 5.500 |
| Refrigerant Type | R134a |
| Suc Prt Typ Note | W/ O-Rings / Sealing Washer |
| Suction Port Type | O-Ring / Sealing Washer |
| Switch Included | High Pressure |
| Terminal Type | Spade |
| UPC | 096361572294 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1985 Buick Century | All Trims | 4 Cyl 2.5L |
| 1985 Buick Century | All Trims | 6 Cyl 4.3L |
| 1983 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
| 1984 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
| 1980-1983 Buick Skylark | All Trims | 6 Cyl 2.8L |
| 1985 Buick Skylark | All Trims | 4 Cyl 2.5L |
| 1982-1983 Cadillac Cimarron | All Trims | All Engines |
| 1986 Chevrolet C15 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet C20 | All Trims | 6 Cyl 4.8L |
| 1986 Chevrolet C30 | All Trims | 6 Cyl 4.8L |
