Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57261 |

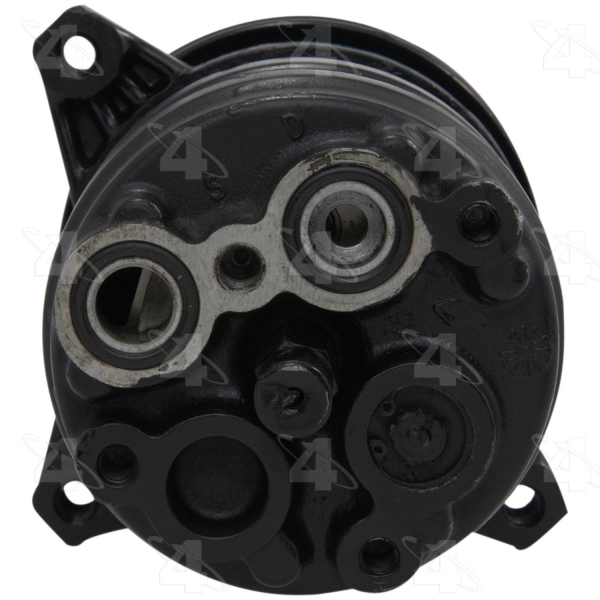

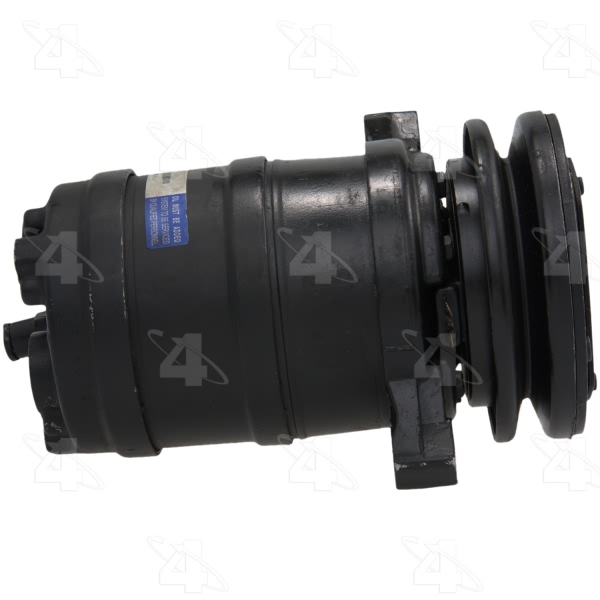

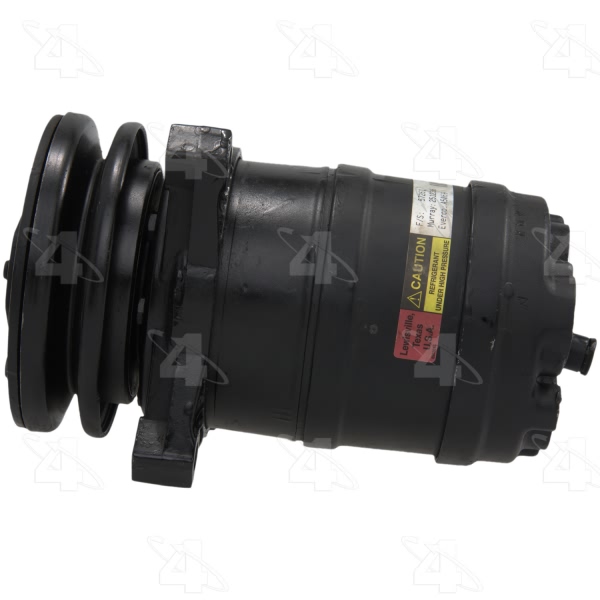

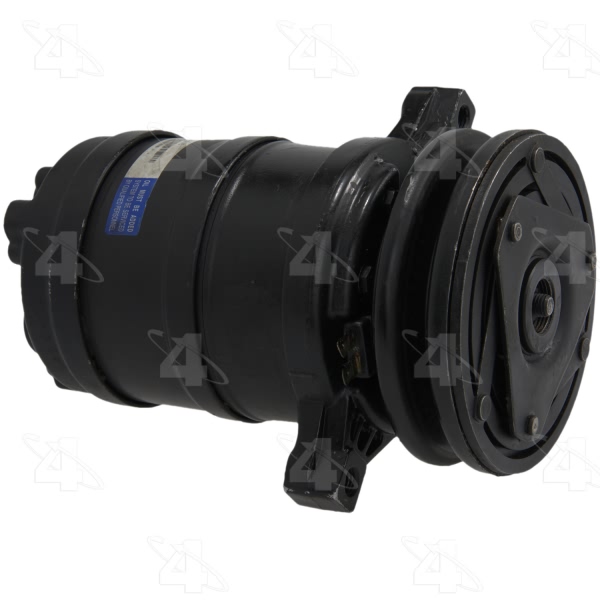

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.4375 |

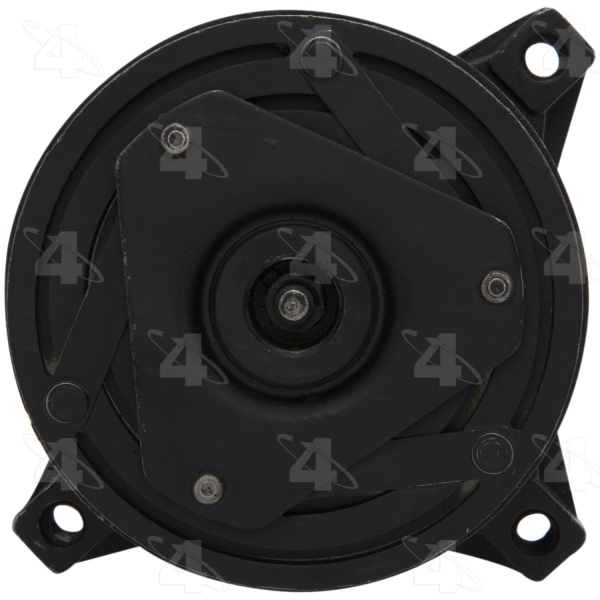

| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.500 |
| Coil Clock Position | 10 |
| Coil Type | Spade |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | HR6, DA6 |
| Distance From Clutch To Mounting Flange | 0.90625 |
| Mounting Hardware | Not Included |
| Mounting Type | Type II Metric Thread |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24615] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 139.700 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.500 |
| Pulley Outside Diameter | 5.500 |
| Pulley Ridge Diameter | 5.500 |
| Refrigerant Type | R134a |
| Reman w/o Clutch | [57254] / Clutch Assembly |
| Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

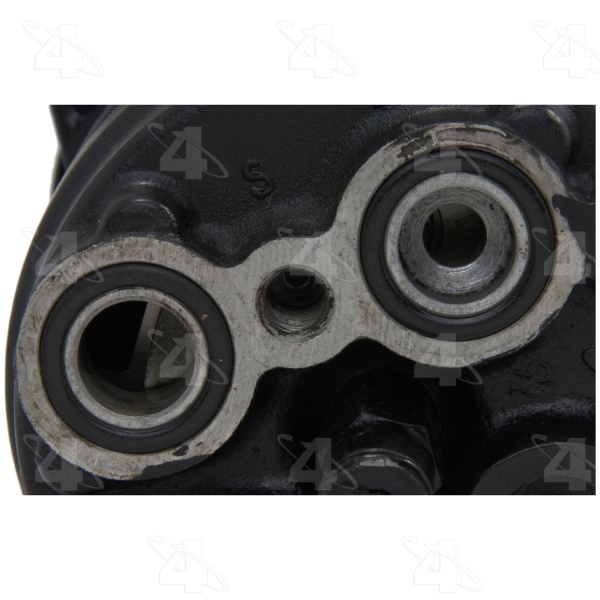

| Suction Port Type | Block Mount |
| Switch Included | High Pressure |

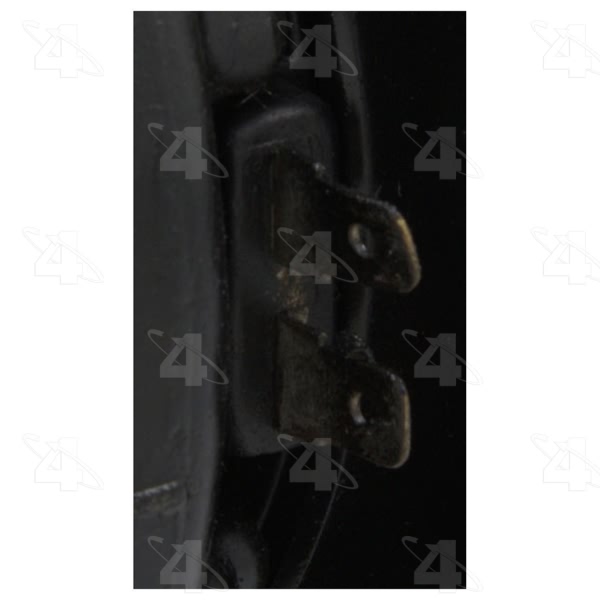

| Terminal Type | Spade |
| UPC | 096361572614 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1983-1984 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
| 1983-1984 Chevrolet Cavalier | All Trims | All Engines |
| 1983-1984 Oldsmobile Firenza | All Trims | 4 Cyl 2.0L |
| 1985-1986 Oldsmobile Firenza | All Trims | 6 Cyl 2.8L |
| 1987-1989 Pontiac Grand Am | All Trims | 4 Cyl 2.0L |
| 1983 Pontiac J2000 | All Trims | 4 Cyl 2.0L |
| 1984 Pontiac J2000 Sunbird | All Trims | 4 Cyl 2.0L |
