Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57276 |

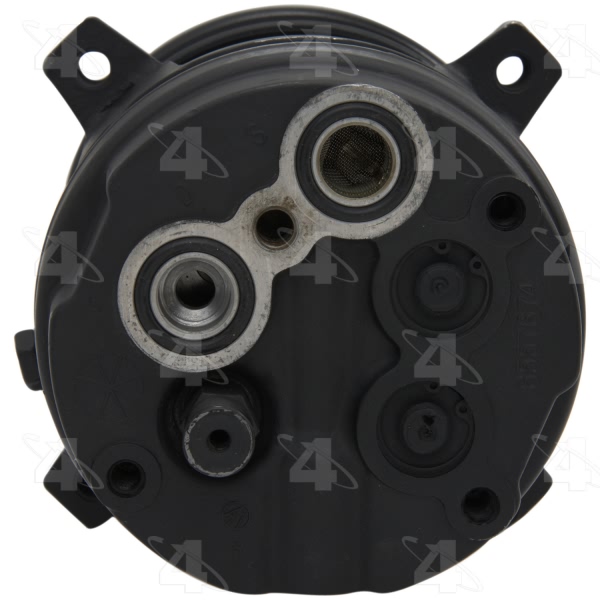

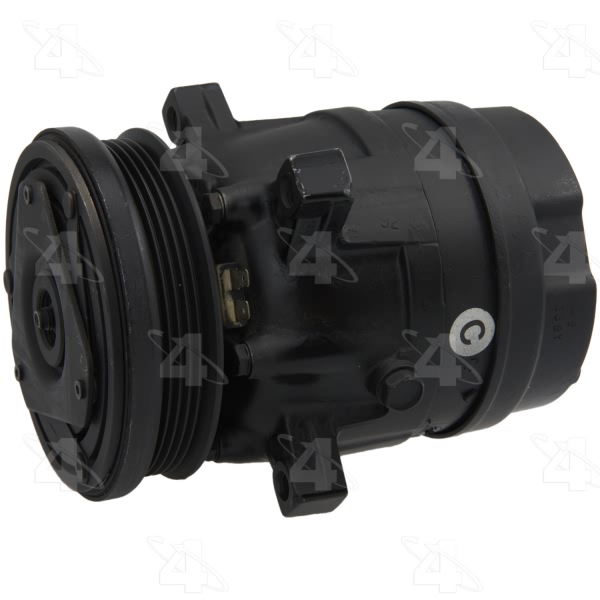

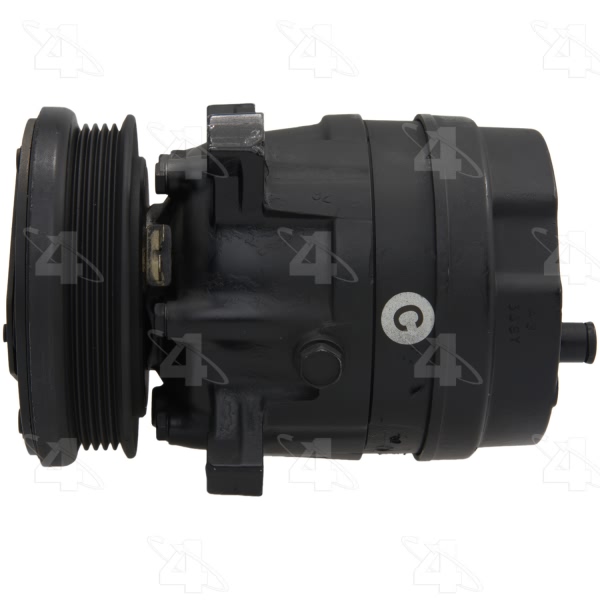

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.000 |
| Coil Clock Position | 2 |
| Coil Type | Spade |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | V5 |
| Distance From Clutch To Mounting Flange | 1.296875 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24615] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Printed Foot Note | This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance. |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 5.000 |
| Pulley Outside Diameter | 5.000 |
| Pulley Ridge Diameter | 5.000 |
| Refrigerant Type | R134a |
| Reman w/o Clutch | [57272] / Clutch Assembly |
| Suc Prt Typ Note | W/ O-Rings / Sealing Washer |

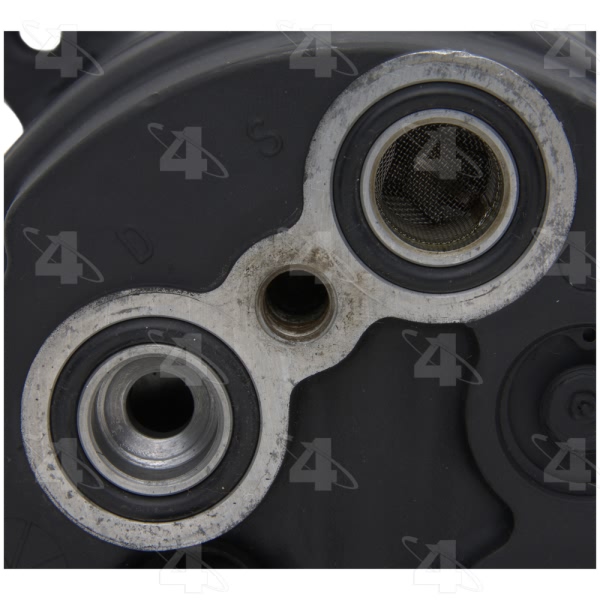

| Suction Port Type | Block Mount |
| Switch Included | High Pressure |

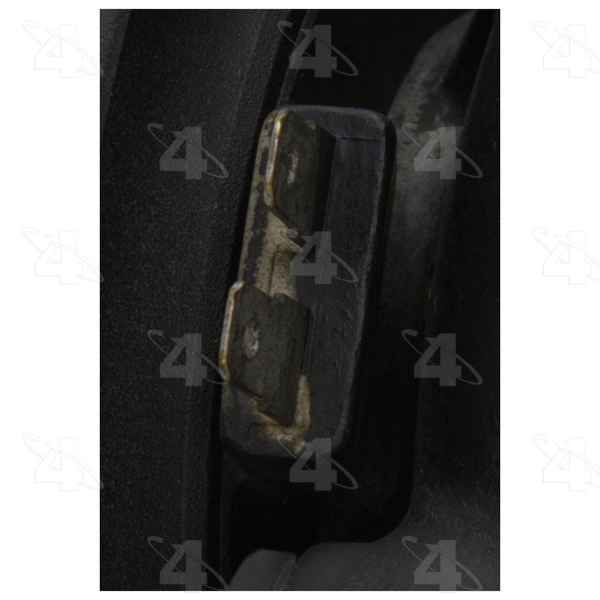

| Terminal Type | Spade |
| UPC | 096361572768 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
| 1988-1989 Buick Skyhawk | All Trims | All Engines |
| 1987-1988 Chevrolet Beretta | All Trims | 4 Cyl 2.0L |
| 1987-1989 Chevrolet Cavalier | All Trims | 4 Cyl 2.0L |
| 1990-1991 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
| 1987-1988 Chevrolet Corsica | All Trims | 4 Cyl 2.0L |
| 1987-1988 Oldsmobile Firenza | All Trims | 4 Cyl 2.0L |
