Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57397 |

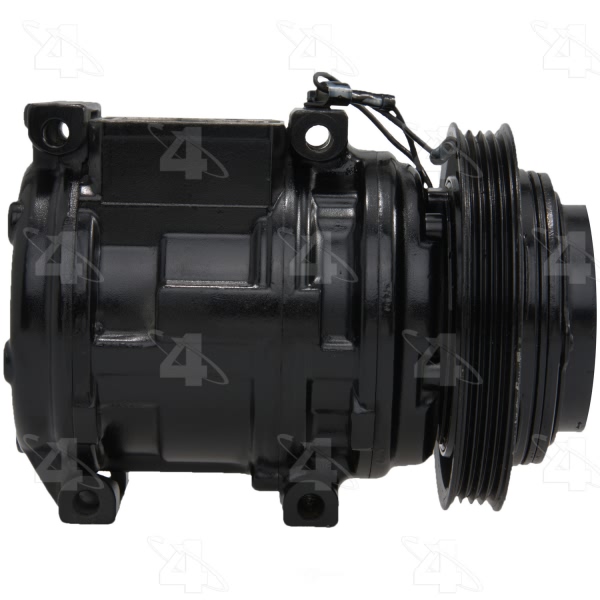

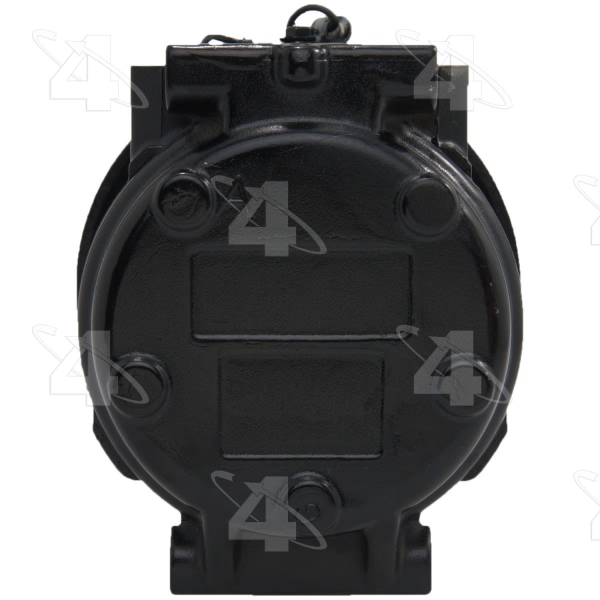

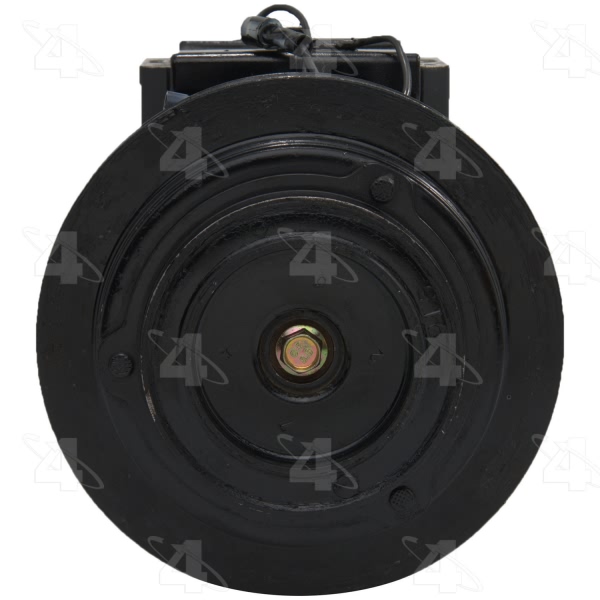

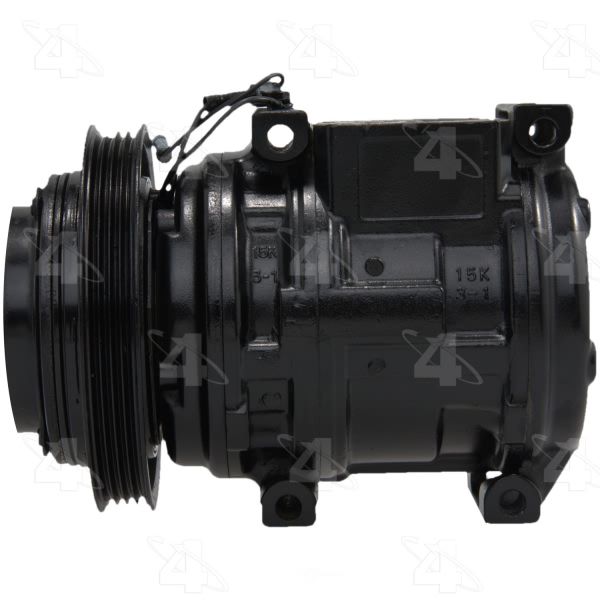

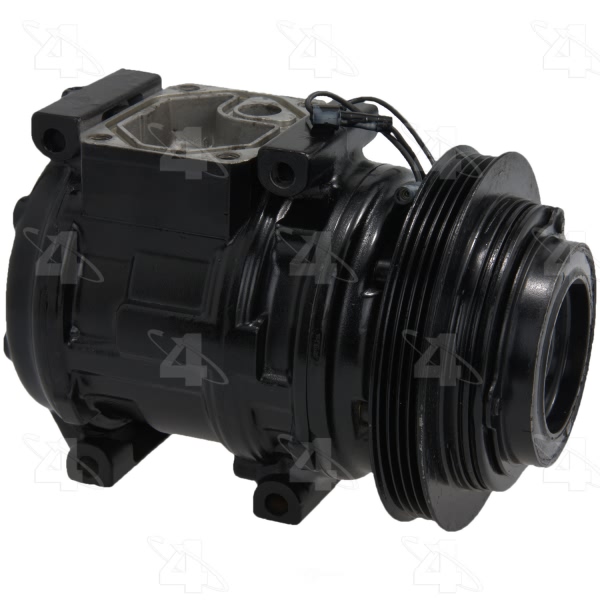

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.500 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10PA15C |
| Distance From Clutch To Mounting Flange | 1.65625 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New Compressor w/o Clutch | [58341] / Clutch Assembly |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 139.700 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 5.500 |
| Pulley Outside Diameter | 5.500 |
| Pulley Ridge Diameter | 5.500 |
| Refrigerant Type | R134a |
| Reman w/o Clutch | [57341] / Clutch Assembly |

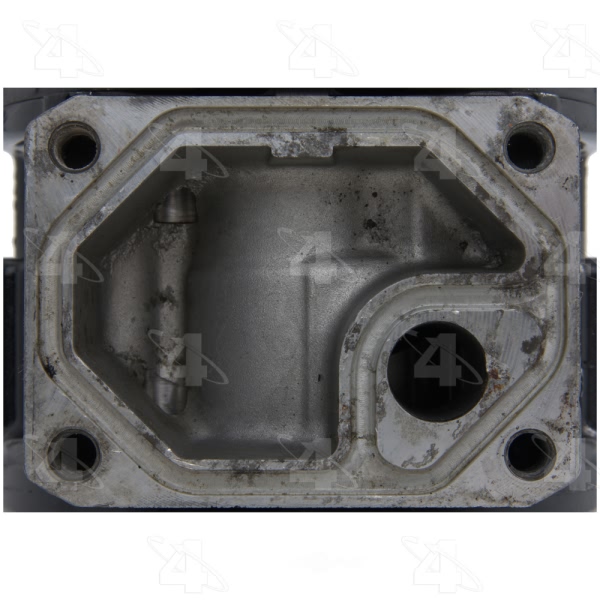

| Suction Port Type | Pad Mount |
| Terminal Type | Spade |
| UPC | 096361573970 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1989-1997 Geo Prizm | All Trims | All Engines |
| 1988-1990 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
| 1990-1993 Toyota Celica | All Trims | 4 Cyl 1.6L |
| 1994-1997 Toyota Celica | All Trims | 4 Cyl 1.8L |
| 1990 Toyota Land Cruiser | All Trims | All Engines |
| 1988-1990 Toyota Pickup | All Trims | 4 Cyl 2.4L |
| 1995 Toyota Pickup | All Trims | 4 Cyl 2.4L |
| 1995 Toyota Pickup | All Trims | 6 Cyl 3.0L |
