Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57456 |

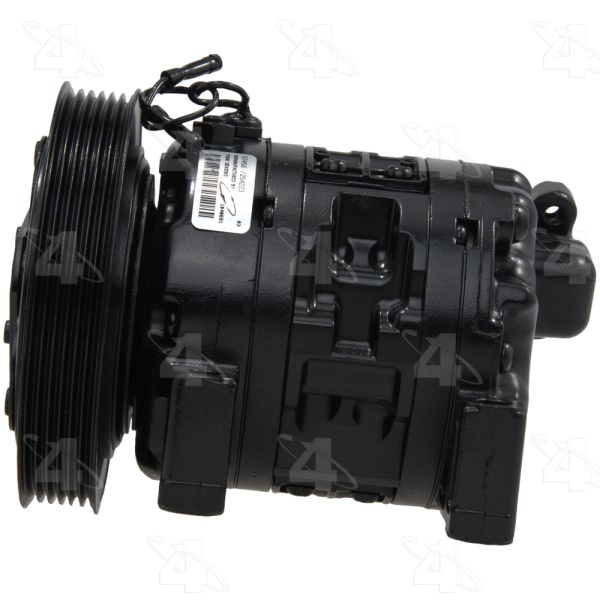

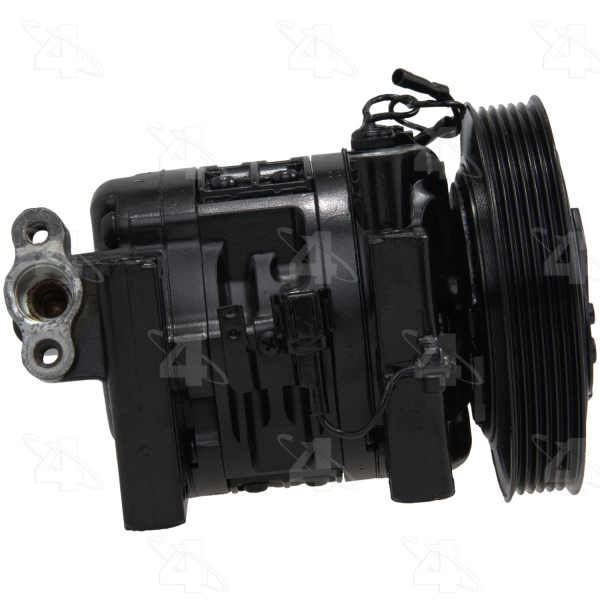

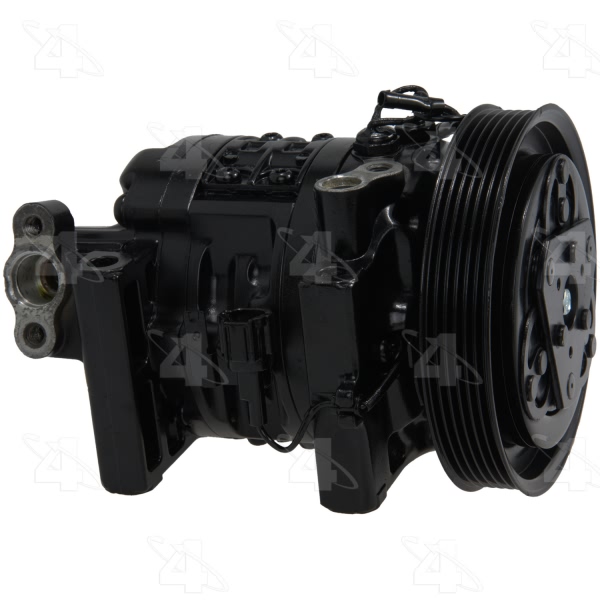

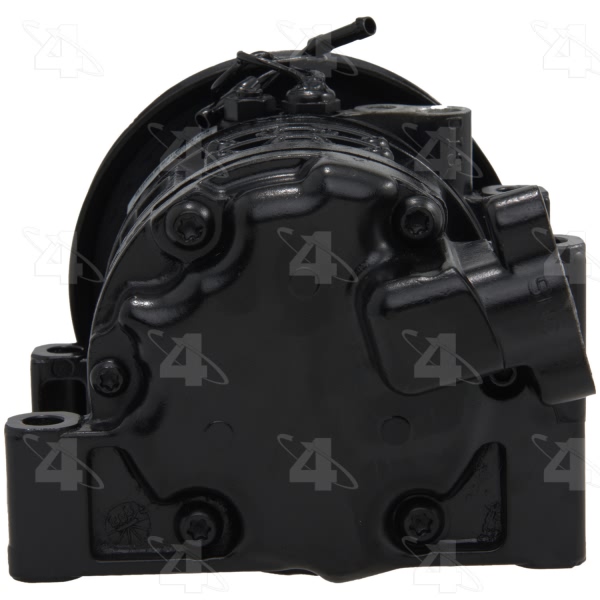

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.875 |
| Clutch Included | Yes |

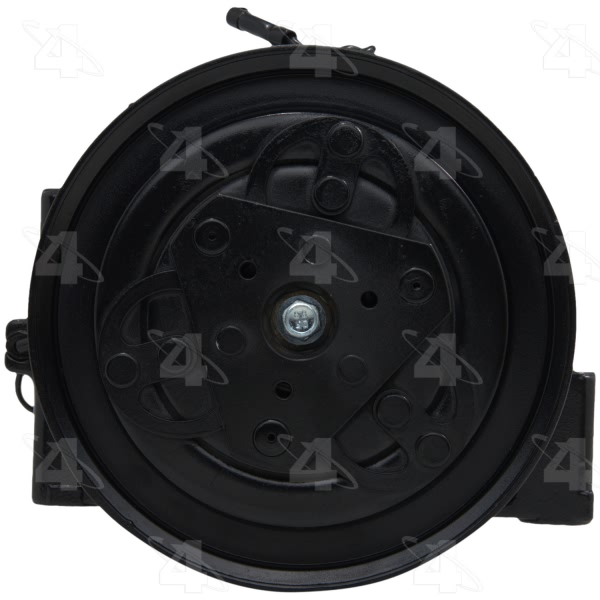

| Clutch Maximum Diameter | 5.625 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Type | DKV14D |

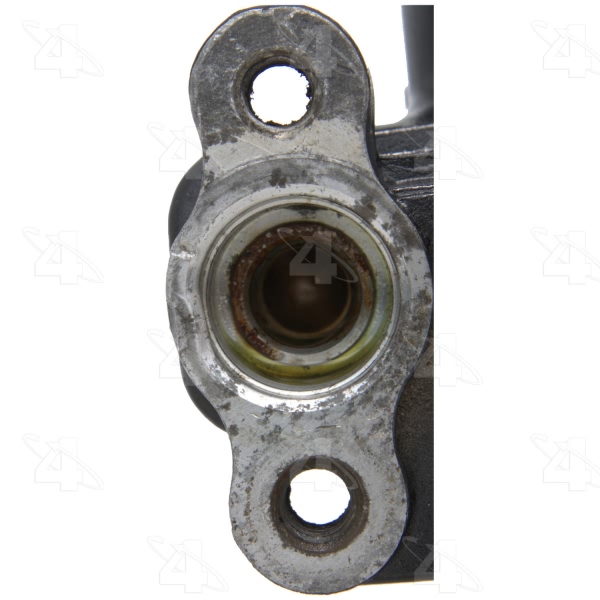

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.000 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24612] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 142.748 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 5.625 |
| Pulley Outside Diameter | 5.625 |
| Pulley Ridge Diameter | 5.625 |
| Refrigerant Type | R134a |

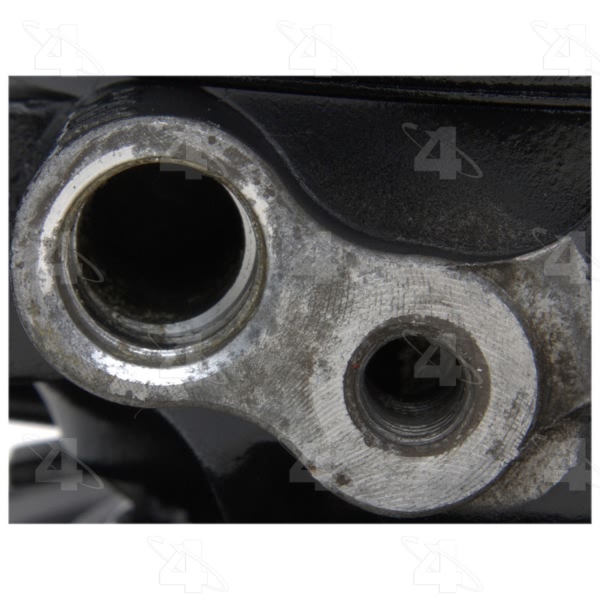

| Suc Prt Typ Note | Pad Mount Stepped 2 Bolt |
| Suction Port Type | O-Ring |

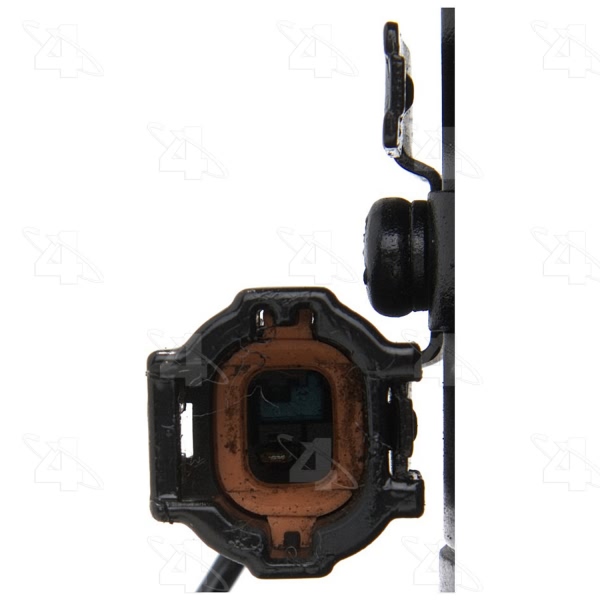

| Switch Included | Heat Sensor |
| Switch Type | Heat Switch |

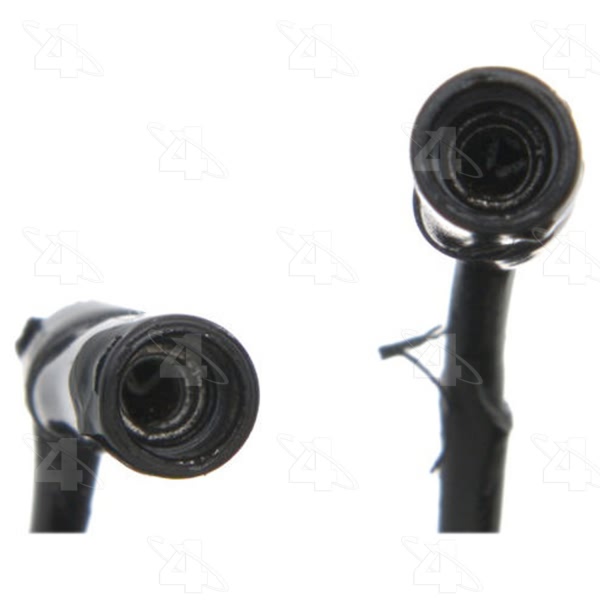

| Terminal Type | Pin |
| UPC | 096361574564 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-1998 Nissan 200SX | All Trims | All Engines |
| 1999-2000 Nissan Lucino | All Trims | 4 Cyl 1.6L |
| 1993 Nissan NX | All Trims | 4 Cyl 2.0L |
| 1993-1994 Nissan Sentra | All Trims | 4 Cyl 2.0L |
| 1995-1997 Nissan Sentra | All Trims | All Engines |
| 1998 Nissan Sentra | All Trims | 4 Cyl 1.6L |
| 1995-1999 Nissan Tsubame | All Trims | All Engines |
| 1993 Nissan Tsuru | All Trims | 4 Cyl 1.6L |
| 1993-1994 Nissan Tsuru | All Trims | 4 Cyl 2.0L |
| 1995-1998 Nissan Tsuru | All Trims | All Engines |
