Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57463 |

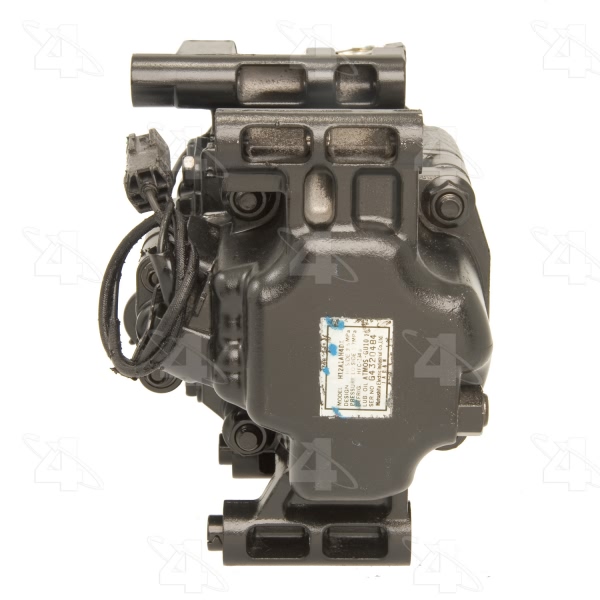

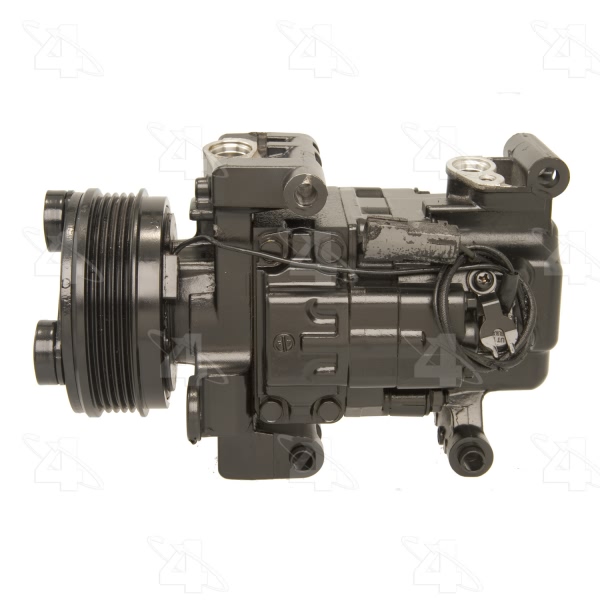

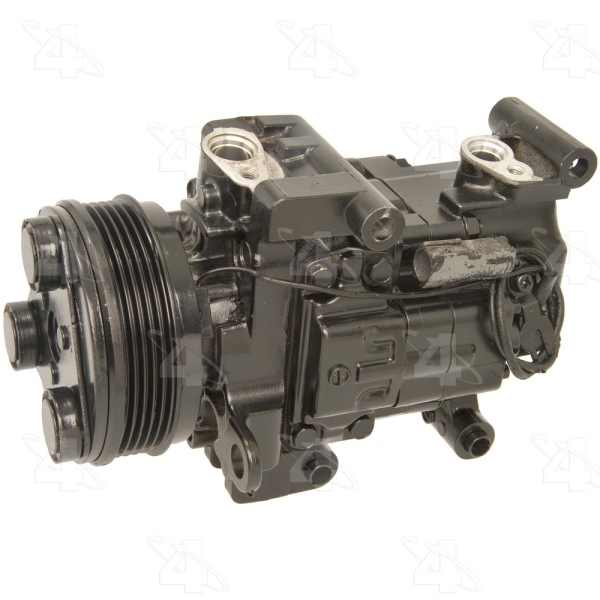

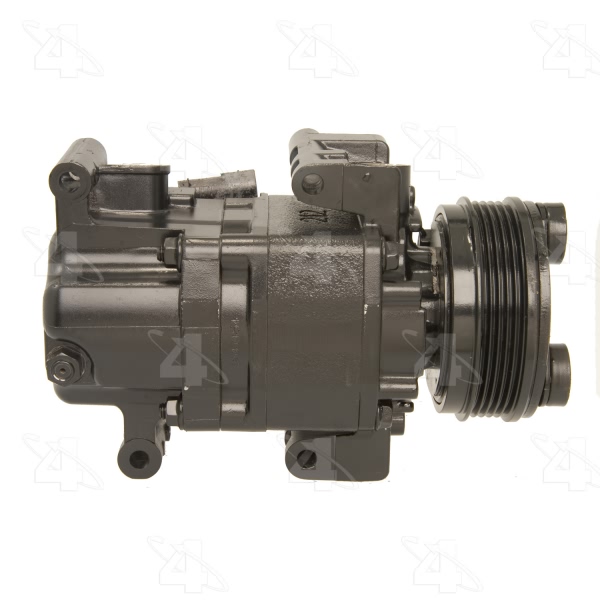

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 3.875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Type | H12A1AH4DX |

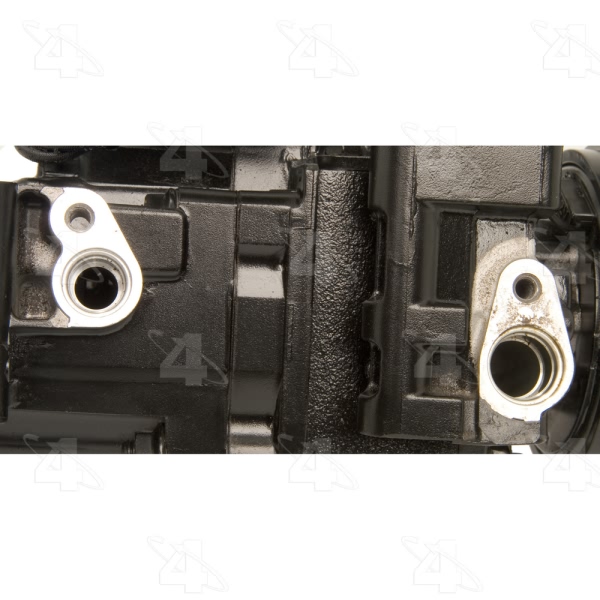

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.40625 |
| Mount Distance MM | 35.560 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May require use of OE connector |

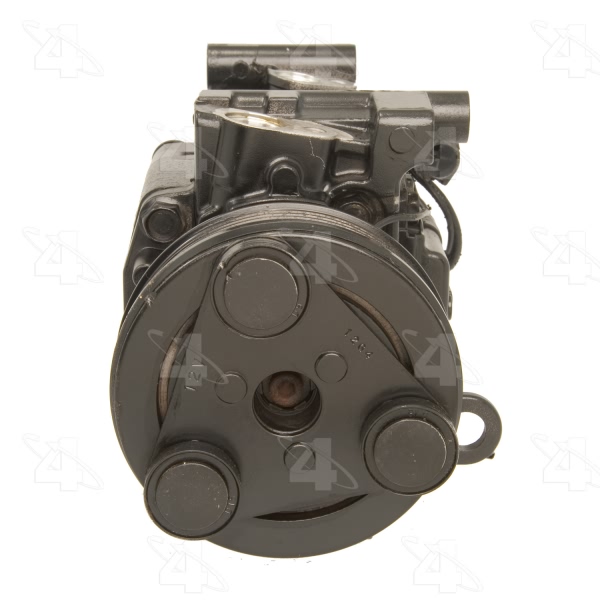

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 98.425 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 3.875 |
| Pulley Outside Diameter | 3.875 |
| Pulley Ridge Diameter | 3.875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Switch |

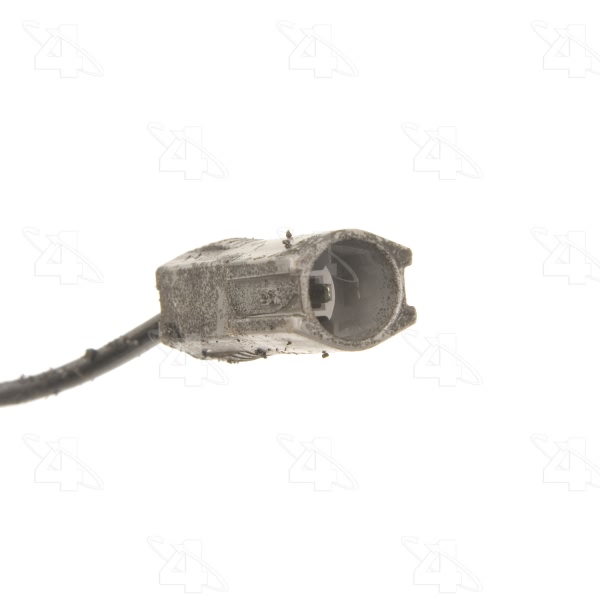

| Terminal Type | Pin |
| UPC | 096361574632 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Mazda 3 | All Trims | All Engines |
| 2007 Mazda 3 | All Trims | 4 Cyl 2.0L |
| 2007 Mazda 3 | i | 4 Cyl 2.0L |
| 2007 Mazda 3 | All Trims | 4 Cyl 2.3L |
| 2007 Mazda 3 | Mazdaspeed | 4 Cyl 2.3L |
| 2007 Mazda 3 | S | 4 Cyl 2.3L |
| 2008-2009 Mazda 3 | All Trims | All Engines |
| 2009 Mazda 3 Sport | All Trims | All Engines |
| 2006-2010 Mazda 5 | All Trims | All Engines |
