Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57494 |

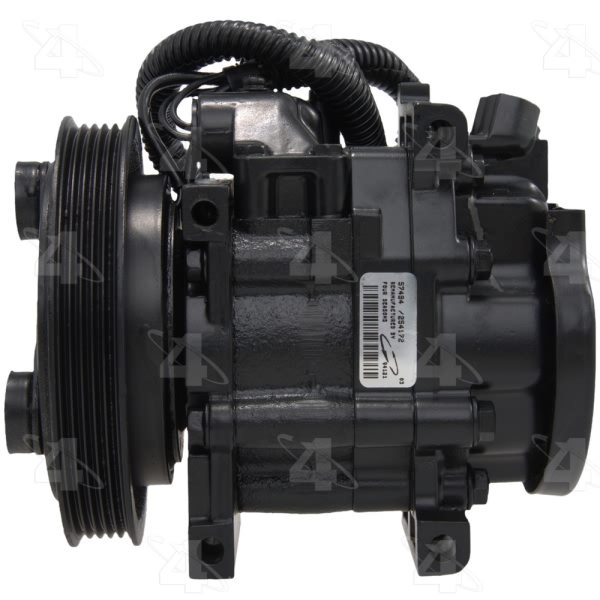

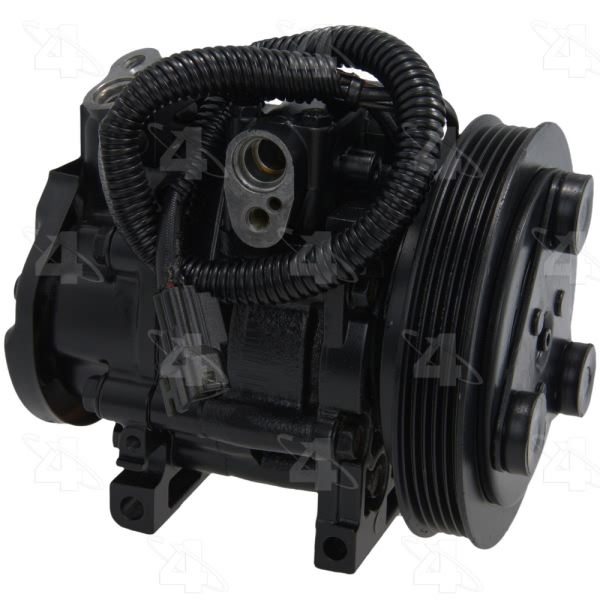

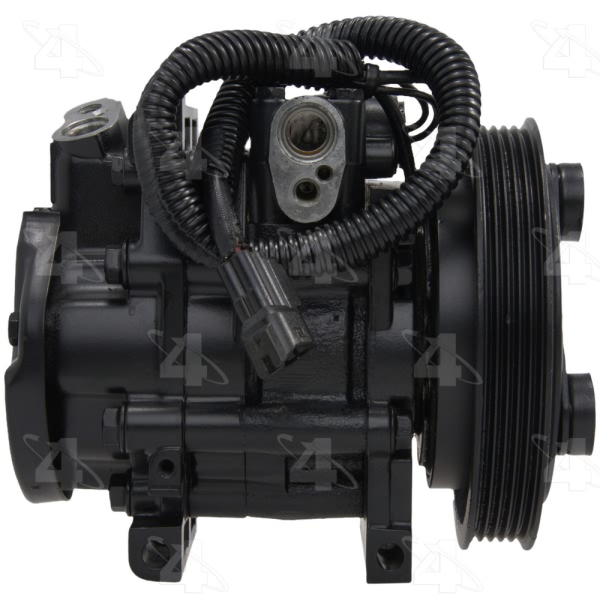

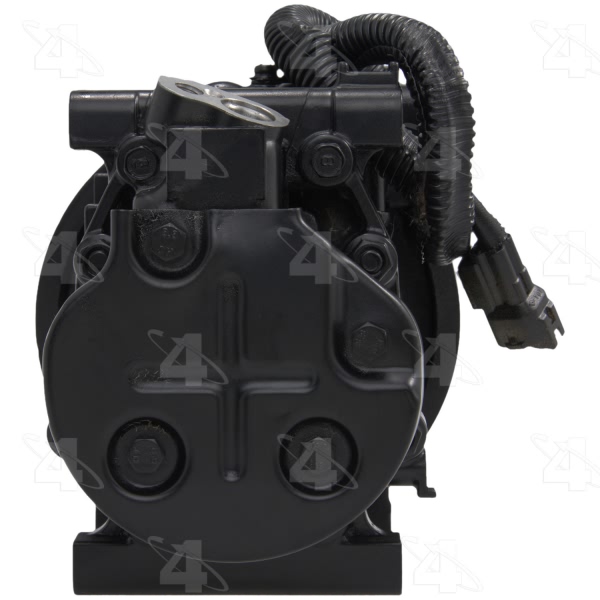

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | NL1300AA4 |

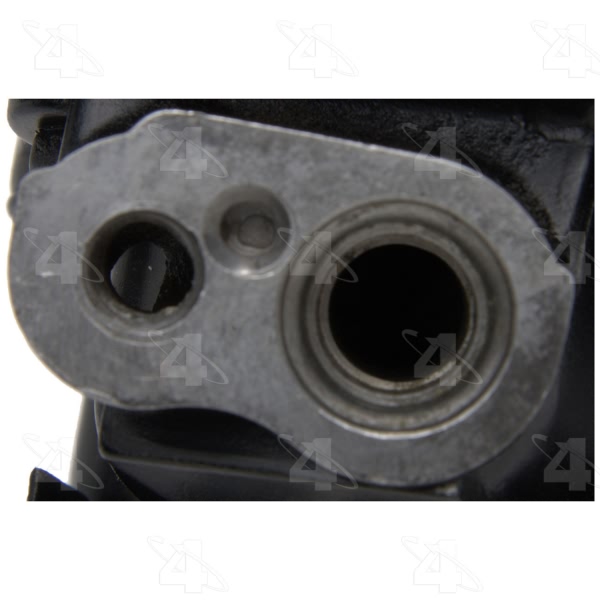

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.859375 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |

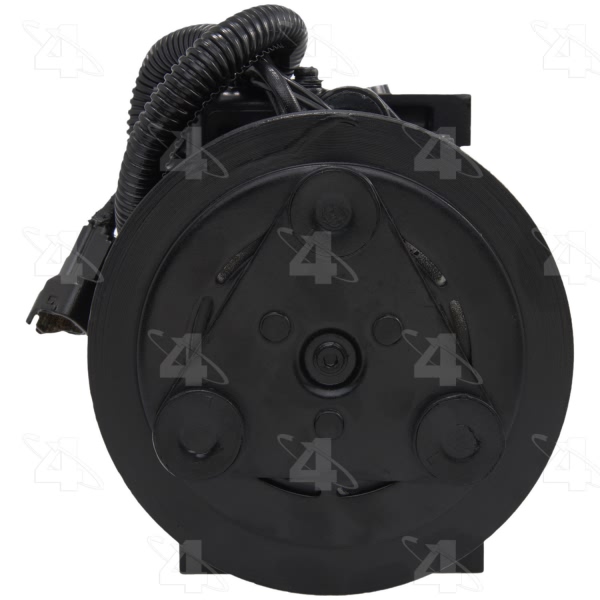

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 146.050 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 5.750 |
| Pulley Outside Diameter | 5.750 |
| Pulley Ridge Diameter | 5.750 |
| Refrigerant Type | R134a |

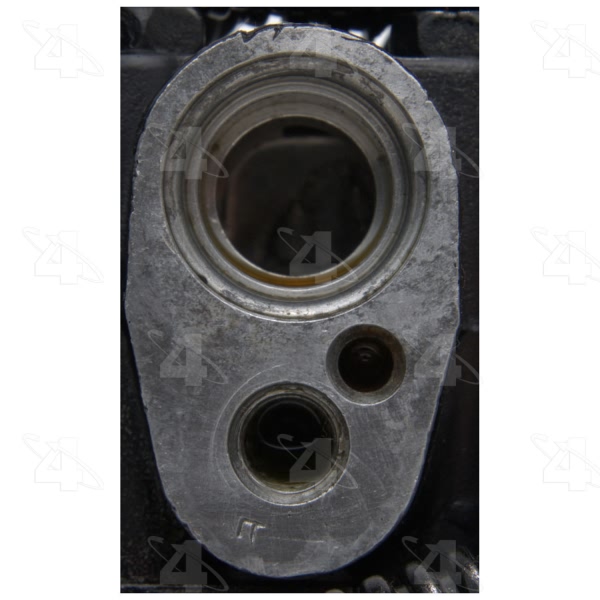

| Suction Port Type | O-Ring |

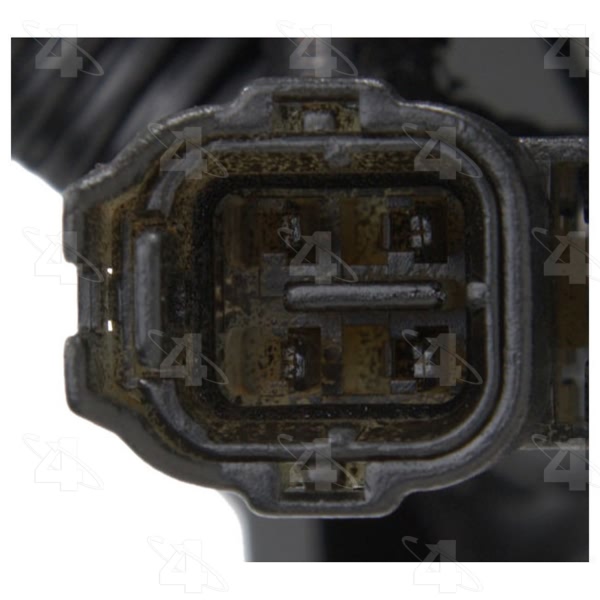

| Terminal Type | Spade |
| UPC | 096361574946 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1989 Honda Prelude | All Trims | All Engines |
| 1990 Honda Prelude | 2.0 S | 4 Cyl 2.0L |
