Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57556 |

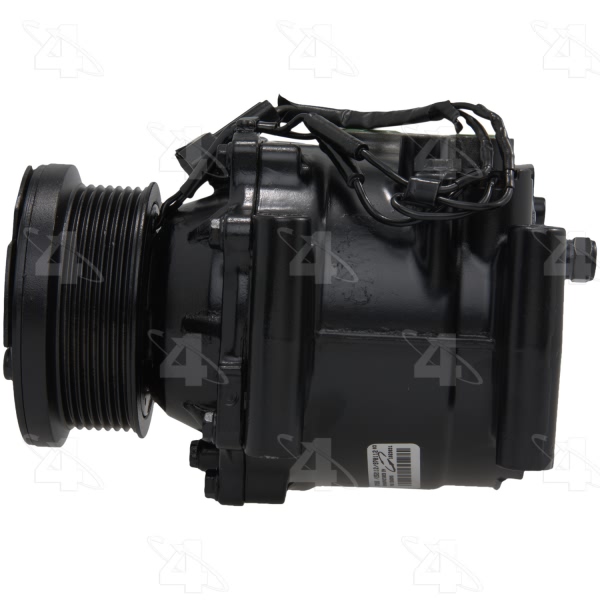

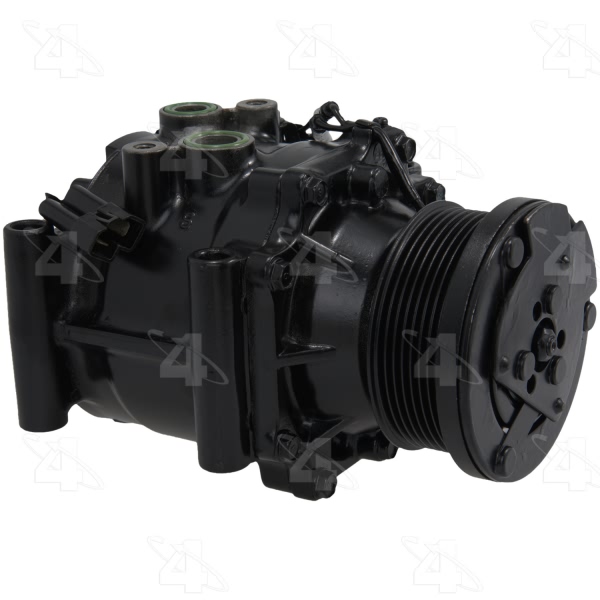

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 3.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | TRF105 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.90625 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24602] / Green Round O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24659] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 95.250 |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter | 3.750 |
| Pulley Outside Diameter | 3.750 |
| Pulley Ridge Diameter | 3.750 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Heat Sensor |

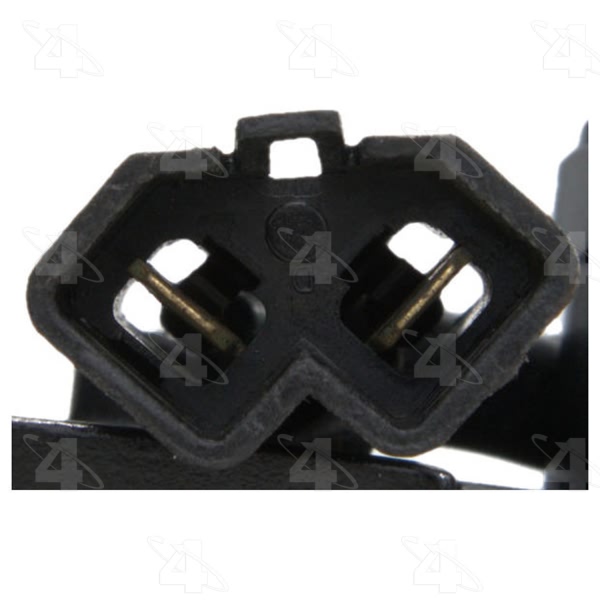

| Terminal Type | Pin |
| UPC | 096361575561 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1992-1994 Dodge B150 | All Trims | All Engines |
| 1995-1997 Dodge B1500 | All Trims | All Engines |
| 1992-1993 Dodge B250 | All Trims | 6 Cyl 3.9L |
| 1992-1993 Dodge B250 | All Trims | 8 Cyl 5.2L |
| 1994 Dodge B250 | All Trims | All Engines |
| 1995-1997 Dodge B2500 | All Trims | All Engines |
| 1992-1993 Dodge B350 | All Trims | 8 Cyl 5.2L |
| 1994 Dodge B350 | All Trims | All Engines |
| 1995-1997 Dodge B3500 | All Trims | All Engines |
| 1995-1997 Dodge Ram 1500 Van | All Trims | All Engines |
