Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57563 |

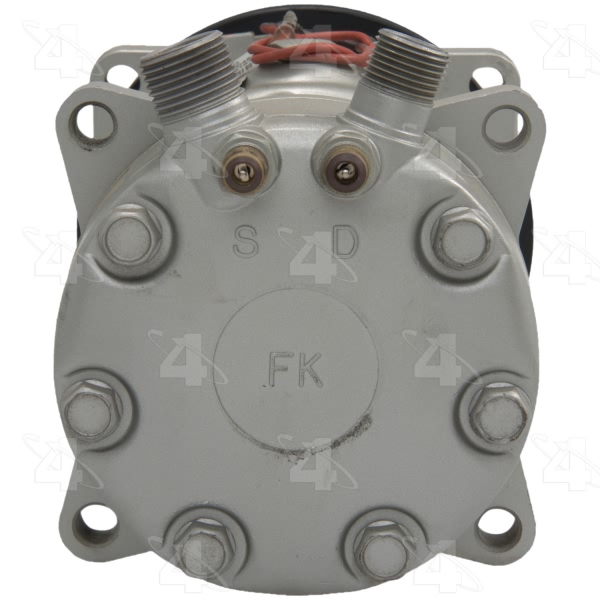

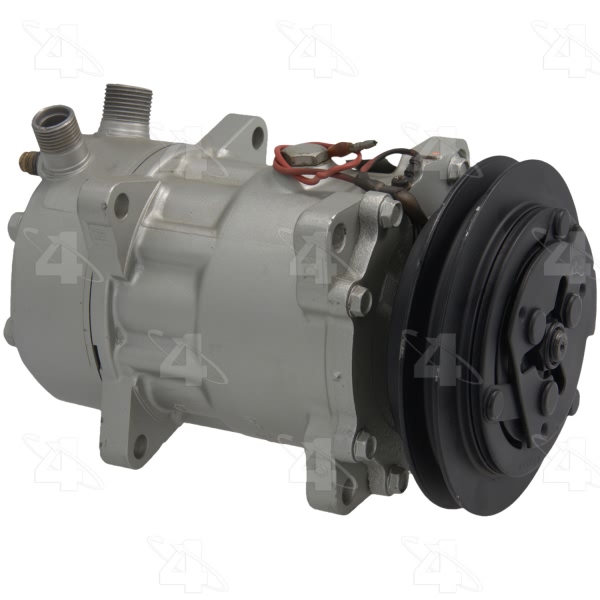

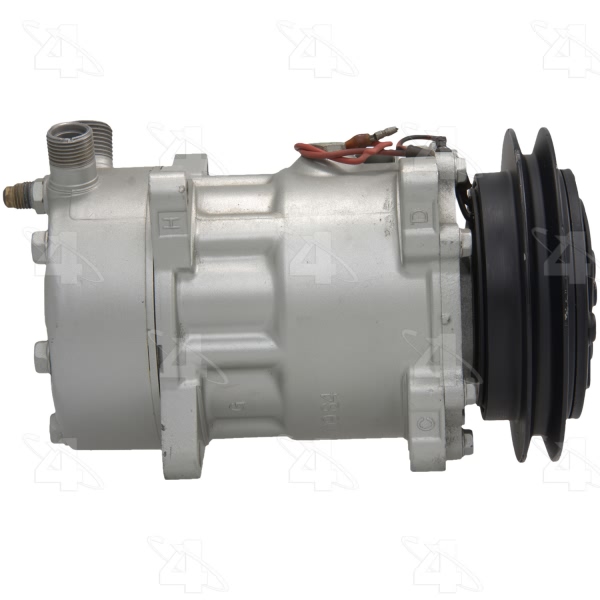

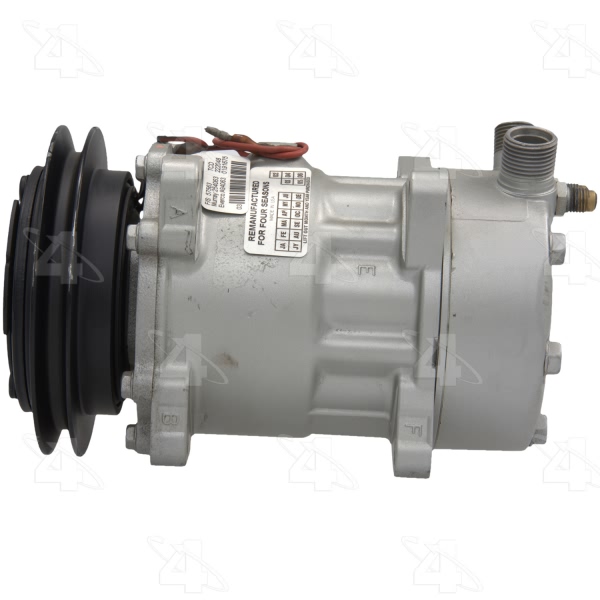

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.500 |

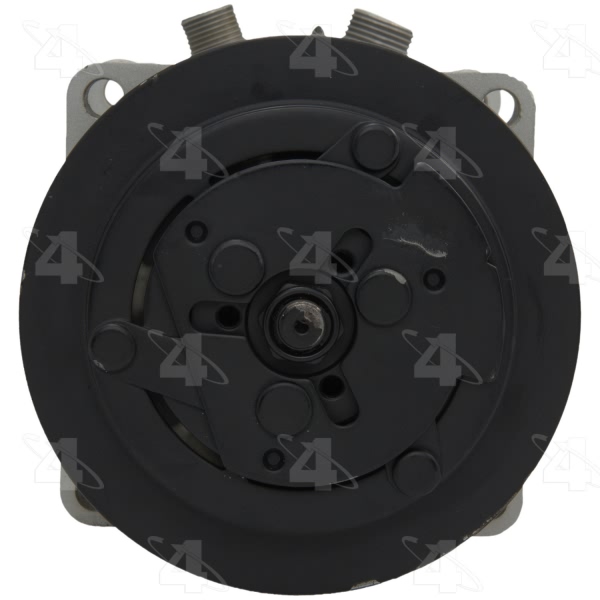

| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.500 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |

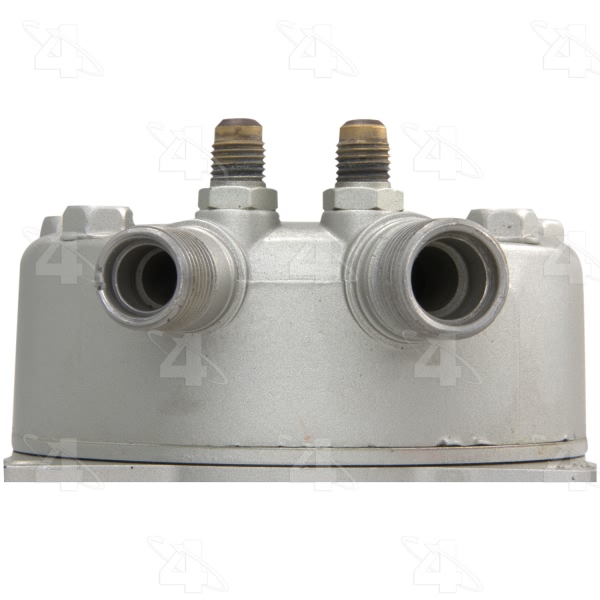

| Comp Head Prt Config | Top-Vert O-Ring |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | FK |
| Compressor Type | SD709 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.546875 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 139.700 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.500 |
| Pulley Outside Diameter | 5.500 |
| Pulley Ridge Diameter | 5.500 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | High Pressure |
| Terminal Type | Butt |
| UPC | 096361575639 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1986-1989 Hyundai Excel | All Trims | All Engines |
