Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57577 |

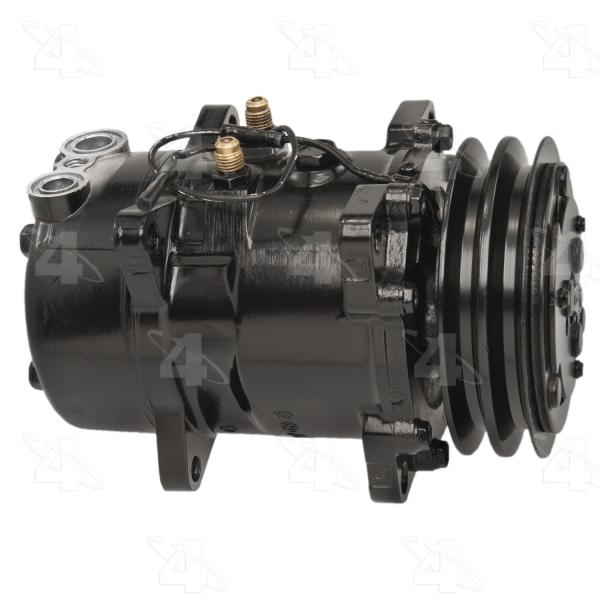

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Comp Head Prt Config | Top-Vert-Pad |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | R/UB |
| Compressor Type | SD507 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.15625 |
| Mount Distance B IN | 1.750 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24613] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24622] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 133.350 |
| Pulley Groove Quantity | 2 |
| Pulley Lip Diameter | 5.250 |
| Pulley Outside Diameter | 5.250 |
| Pulley Ridge Diameter | 5.250 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Butt |
| UPC | 096361575776 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1982-1984 Mazda B2000 | All Trims | All Engines |
| 1982-1984 Mazda B2200 | All Trims | All Engines |
| 1983-1985 Mazda GLC | All Trims | All Engines |
