Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57584 |

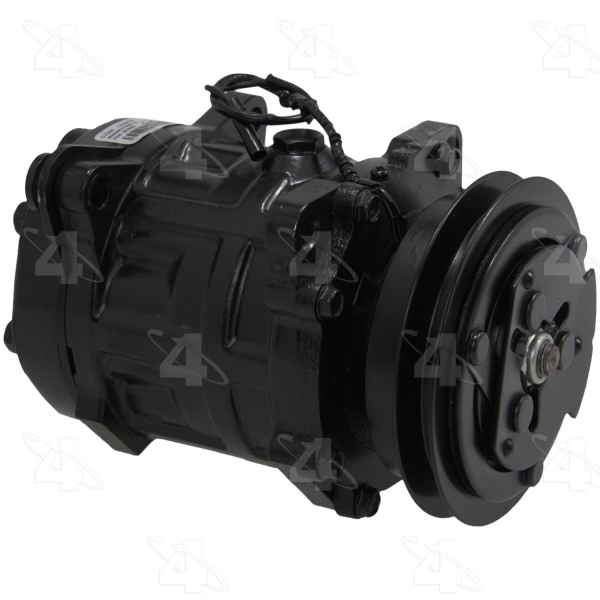

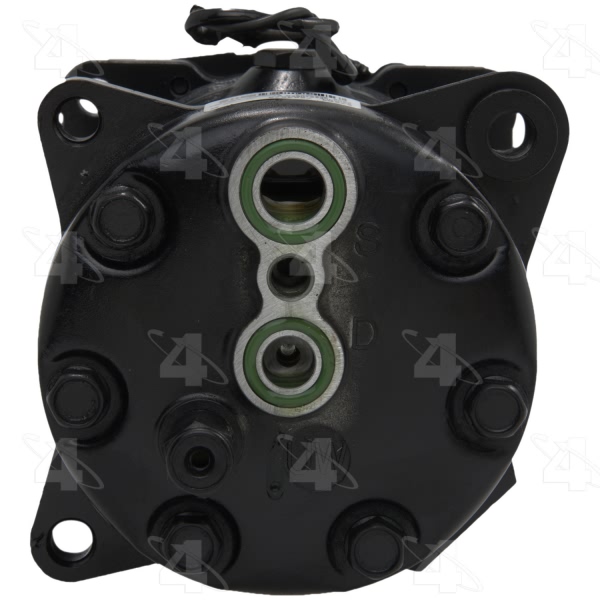

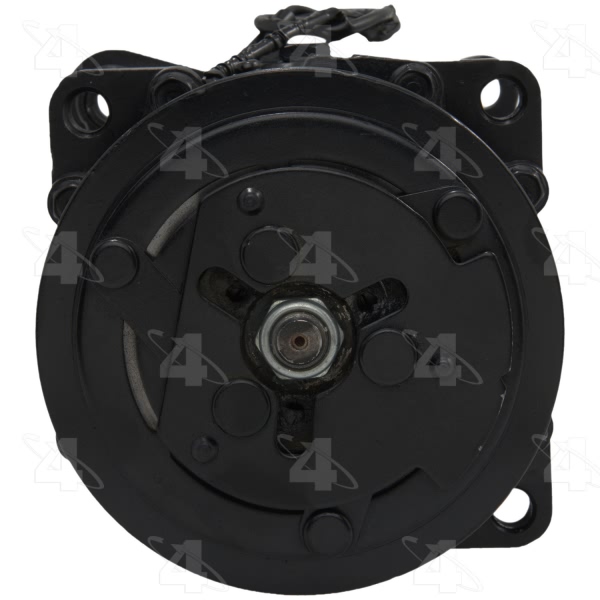

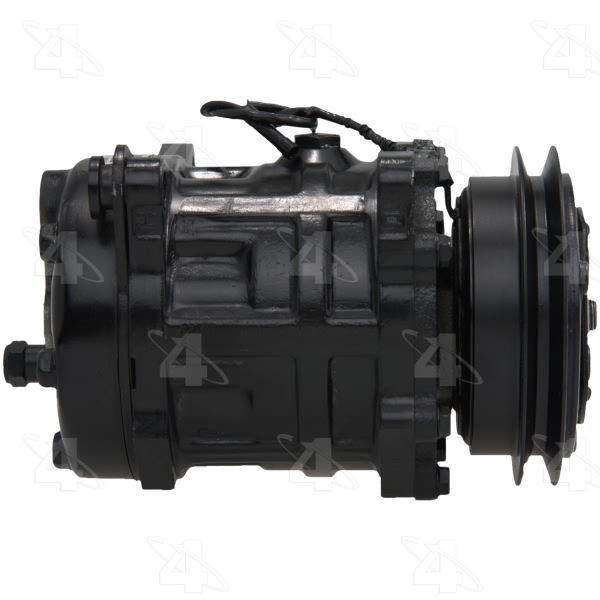

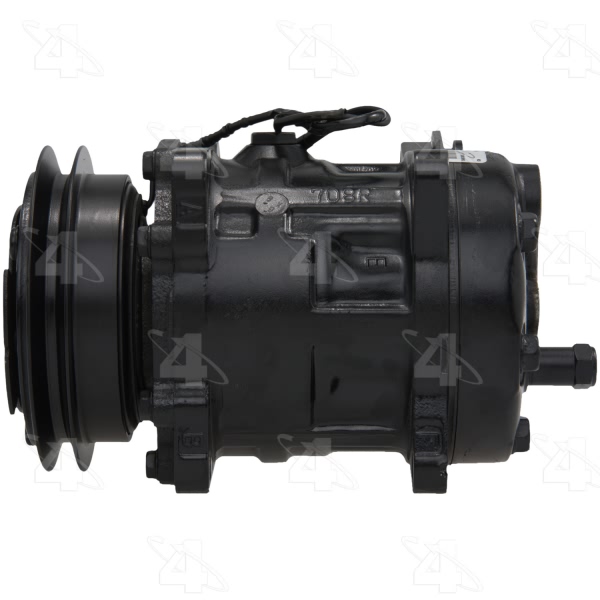

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.500 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.000 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Comp Head Prt Config | Rear-Vert-Pad |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | UW |
| Compressor Type | SD708 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.453125 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |

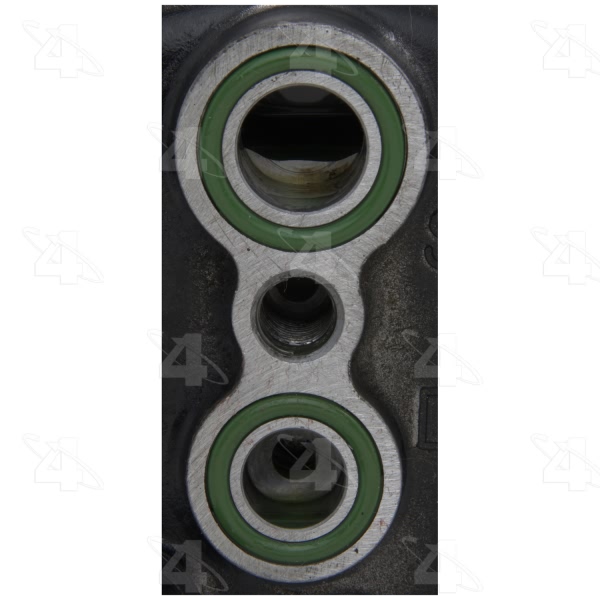

| O-Ring A Number/Desc | [24613] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24622] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | V-Belt |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 1 |
| Pulley Lip Diameter | 5.000 |
| Pulley Outside Diameter | 5.000 |
| Pulley Ridge Diameter | 5.000 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Butt |
| UPC | 096361575844 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1989 Mazda B2200 | All Trims | All Engines |
| 1989-1990 Mazda RX-7 | All Trims | 2 Cyl 1.3L |
