Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57590 |

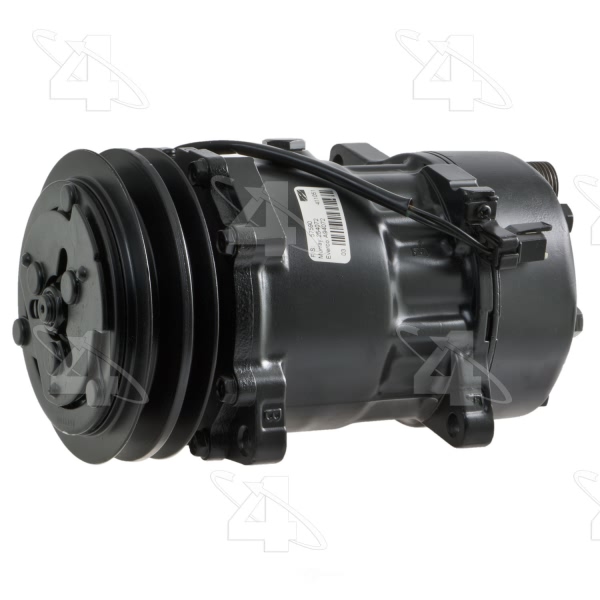

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.375 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 24 |
| Comp Head Prt Config | Rear-Horiz-O-Ring |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | KC |
| Compressor Type | SD709 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.65625 |
| Mount Distance B IN | 1.250 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 130.048 |
| Pulley Groove Quantity | 2 |
| Pulley Lip Diameter | 5.125 |
| Pulley Outside Diameter | 5.125 |
| Pulley Ridge Diameter | 5.125 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Bullet |
| UPC | 096361575905 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1990-1991 Volkswagen Corrado | All Trims | All Engines |
| 1992 Volkswagen Corrado | All Trims | 4 Cyl 1.8L |
| 1990-1992 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
| 1991-1992 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
| 1990 Volkswagen Passat | All Trims | All Engines |
| 1991-1992 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
