Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57658 |

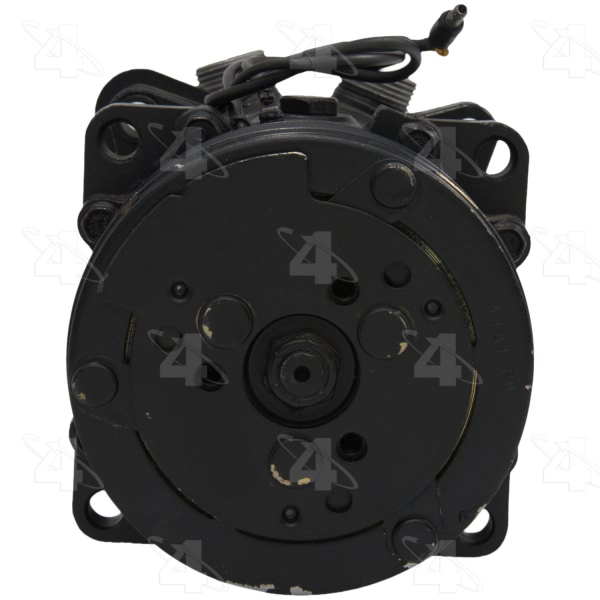

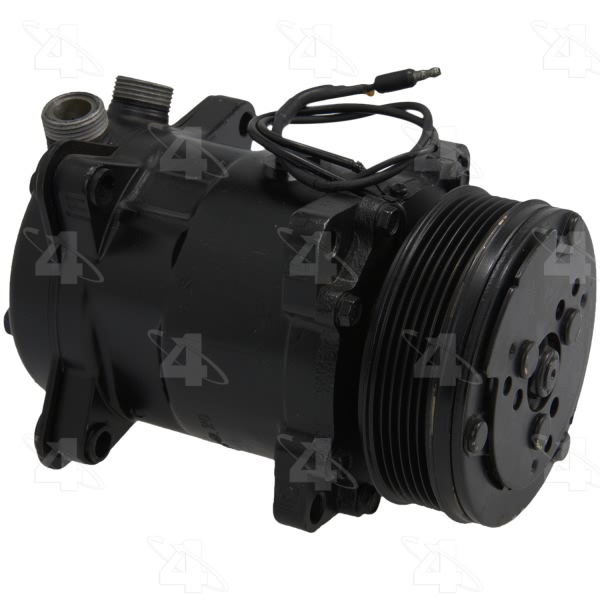

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Comp Head Prt Config | Top-Vert-Tube-O |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | C/CE |
| Compressor Type | SD508 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.953125 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New Compressor w/o Clutch | [58046] / Clutch Assembly |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24111] / Mini York Teflon Seal O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 120.650 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.750 |
| Pulley Outside Diameter | 4.750 |
| Pulley Ridge Diameter | 4.750 |
| Refrigerant Type | R134a |
| Reman w/o Clutch | [57046] / Clutch Assembly |
| Suction Port Type | O-Ring |
| Terminal Type | Spade |
| UPC | 096361576582 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1980 American Motors AMX | All Trims | All Engines |
| 1980-1982 American Motors Concord | All Trims | 6 Cyl 4.2L |
| 1983 American Motors Concord | All Trims | All Engines |
| 1980 American Motors Eagle | All Trims | All Engines |
| 1981-1982 American Motors Eagle | All Trims | 6 Cyl 4.2L |
| 1983 American Motors Eagle | All Trims | 4 Cyl 2.5L |
| 1980-1981 American Motors Spirit | All Trims | 4 Cyl 2.5L |
| 1980-1982 American Motors Spirit | All Trims | 6 Cyl 4.2L |
| 1983 American Motors Spirit | All Trims | All Engines |
| 1981-1983 Jeep Cherokee | All Trims | 6 Cyl 4.2L |
