Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 57891 |

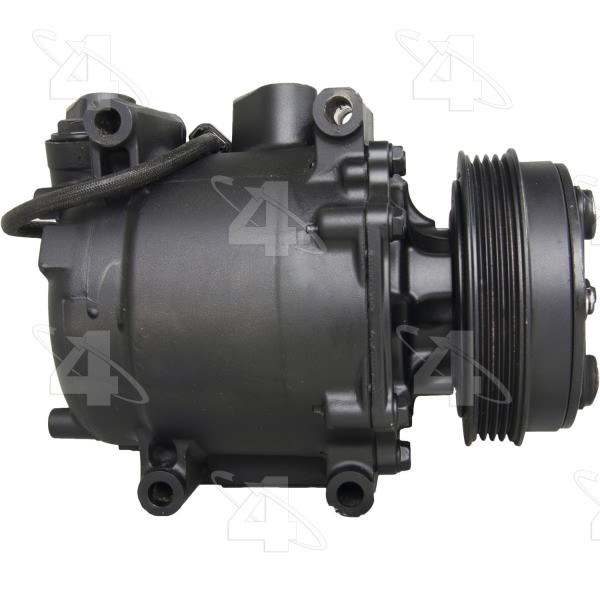

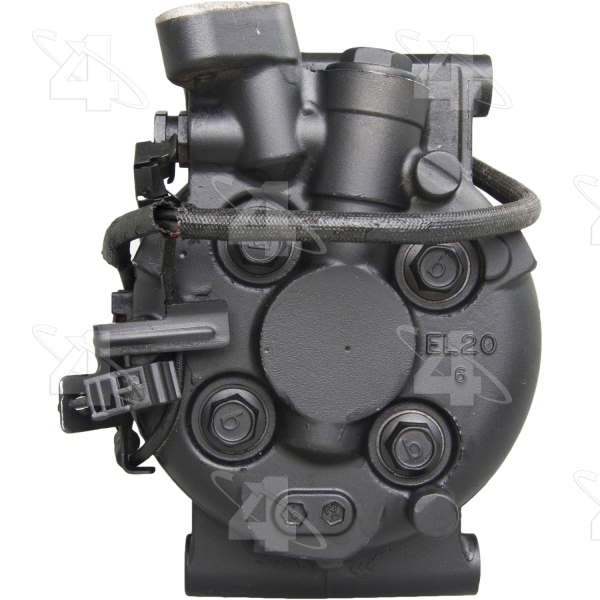

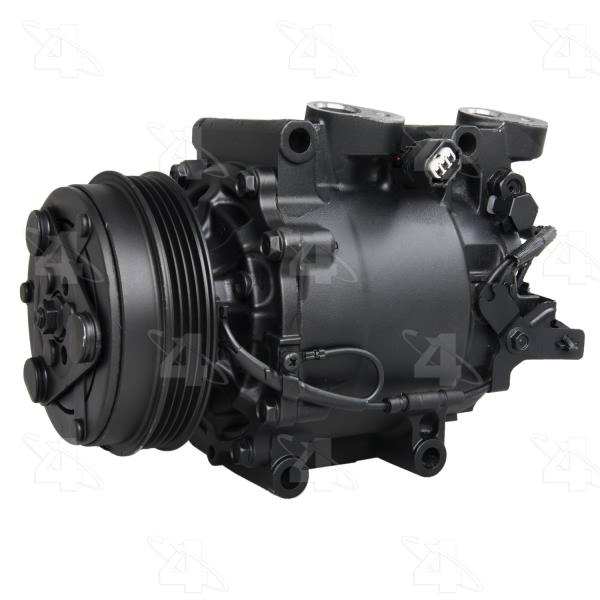

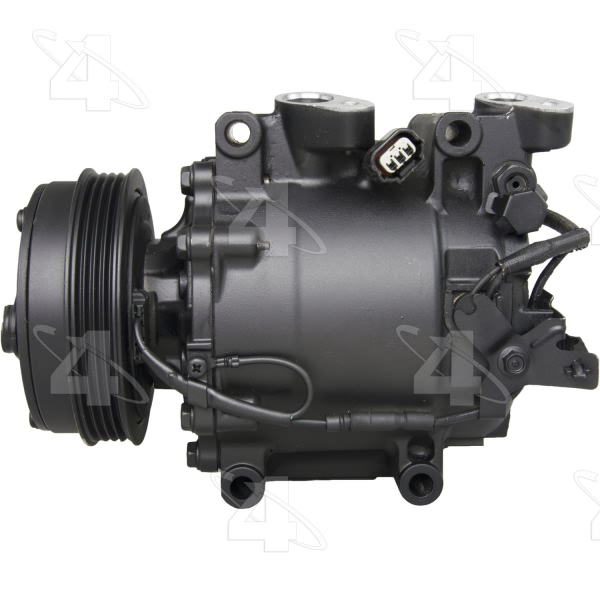

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.400 |
| Coil Clock Position | 3 Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HSK70KR |

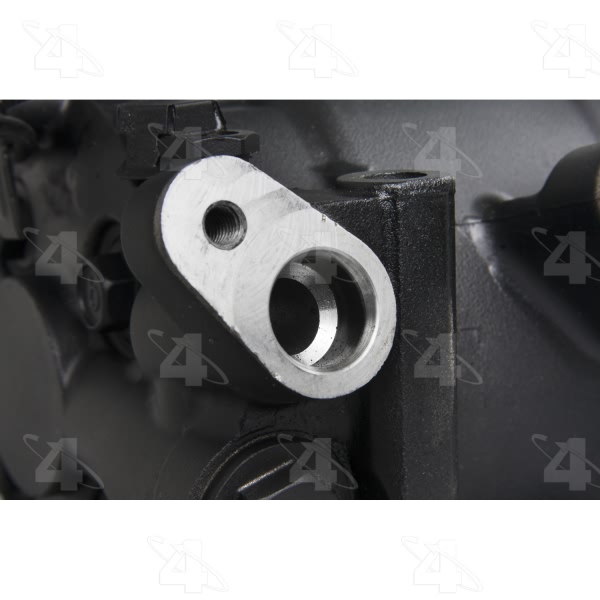

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.530 |
| Mount Distance MM | 38.862 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |

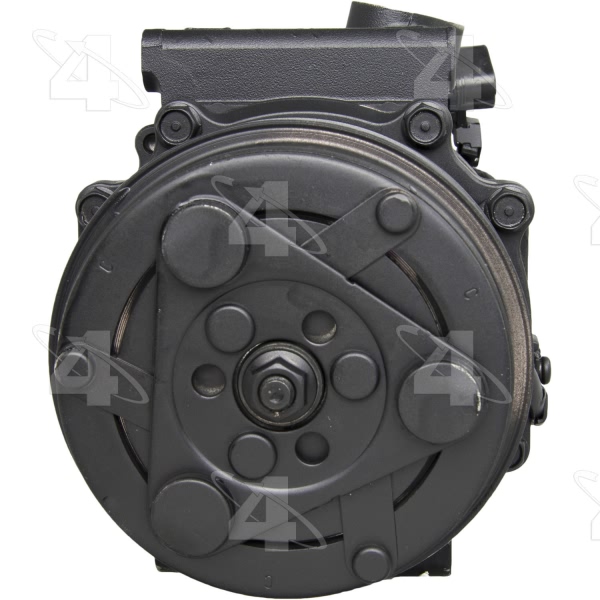

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 111.760 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 4.400 |
| Pulley Outside Diameter | 4.400 |
| Pulley Ridge Diameter | 4.400 |
| Refrigerant Type | R134a |

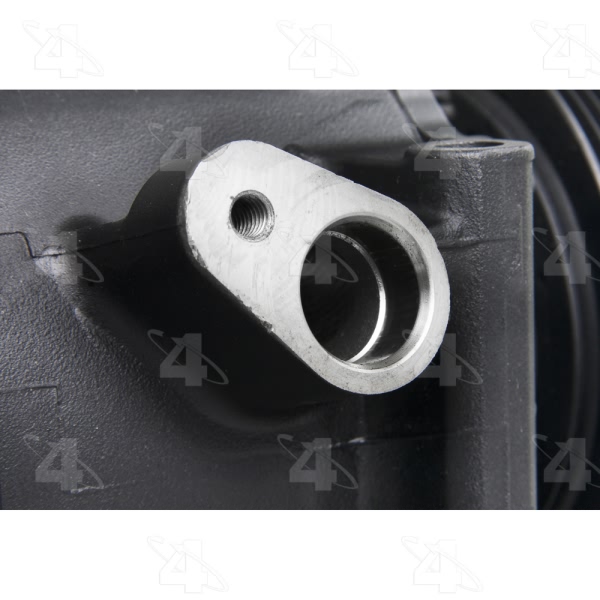

| Suction Port Type | O-Ring |
| Switch Included | Heat Switch |
| Terminal Type | Pin |
| UPC | 096361578913 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2015 Honda CR-Z | All Trims | All Engines |
| 2010-2014 Honda Insight | All Trims | All Engines |
