Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 67270 |

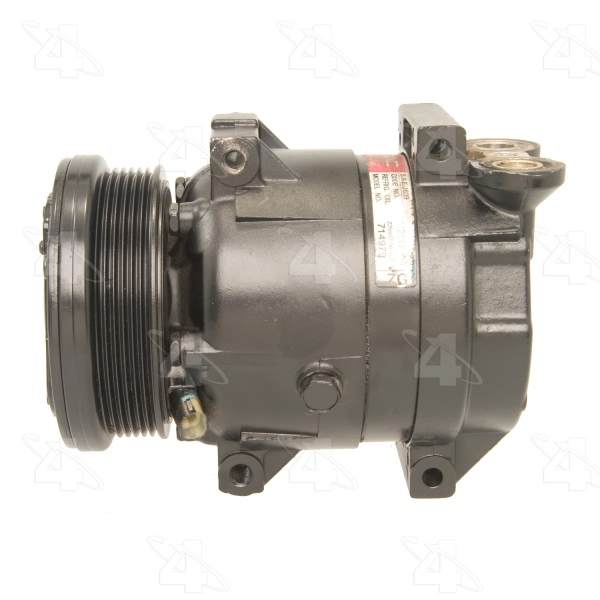

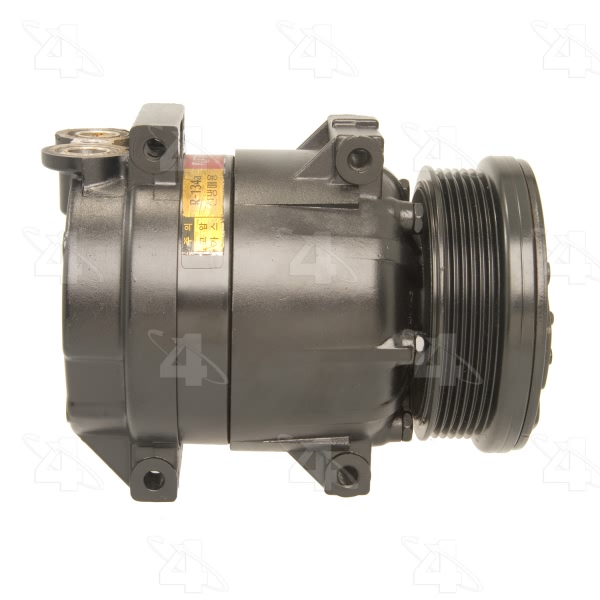

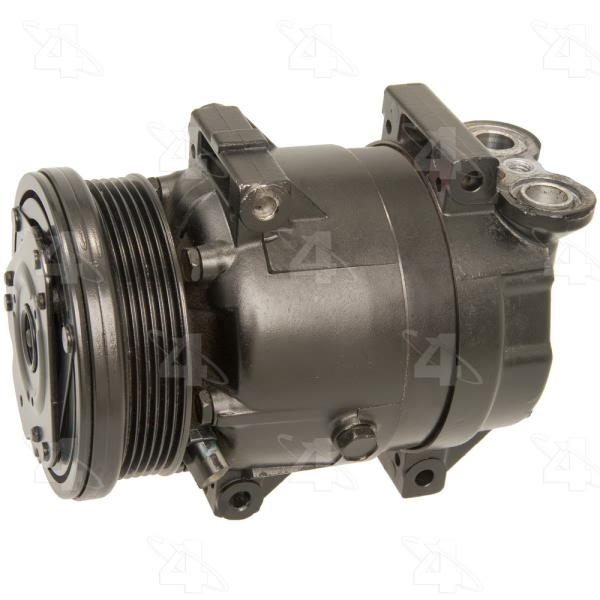

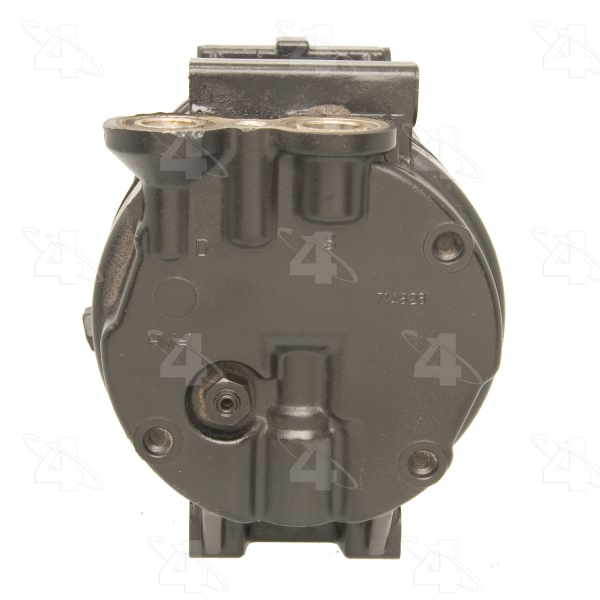

| Part Description | Remanufactured A C Compressor With Clutch |

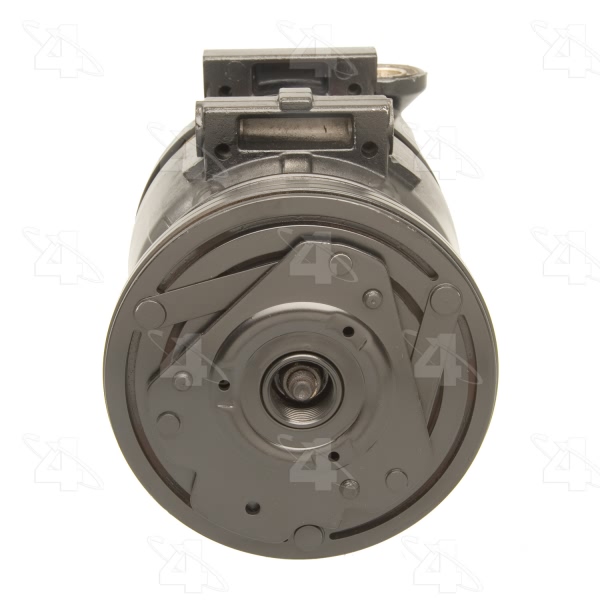

| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.6875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 150 |
| Compressor Type | V5 |

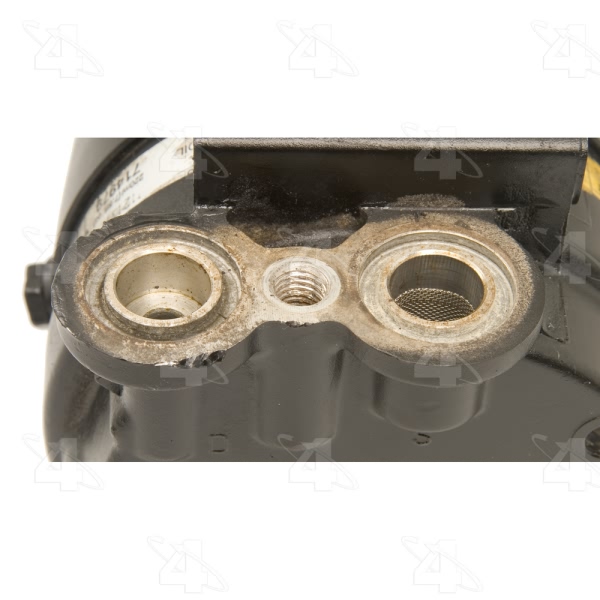

| Discharge Port Type | Block Mount |
| Distance From Clutch To Mounting Flange | 1.015625 |
| Mount Distance MM | 25.908 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24615] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.050 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.6875 |
| Pulley Outside Diameter | 4.6875 |
| Pulley Ridge Diameter | 4.6875 |
| Refrigerant Type | R134a |
| Suction Port Type | Block Mount |

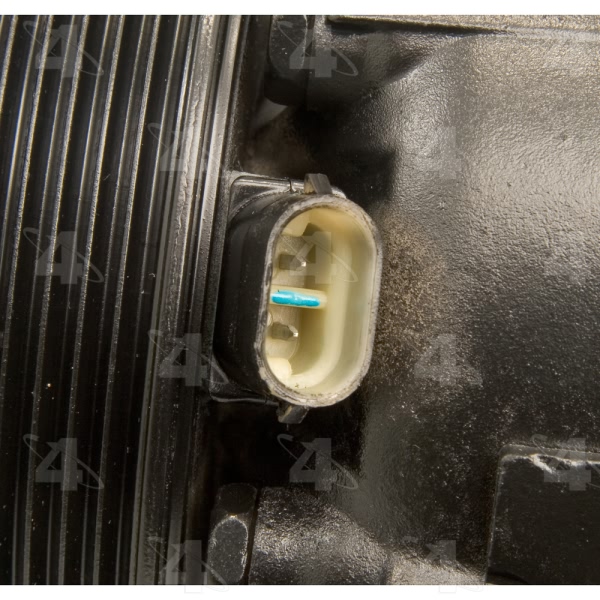

| Terminal Type | 8mm Pin Connector |
| UPC | 096361672703 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2009 Chevrolet Aveo | All Trims | All Engines |
| 2006-2009 Chevrolet Aveo5 | All Trims | All Engines |
| 2005-2008 Pontiac Wave | All Trims | All Engines |
| 2005-2007 Pontiac Wave5 | All Trims | All Engines |
