Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 67451 |

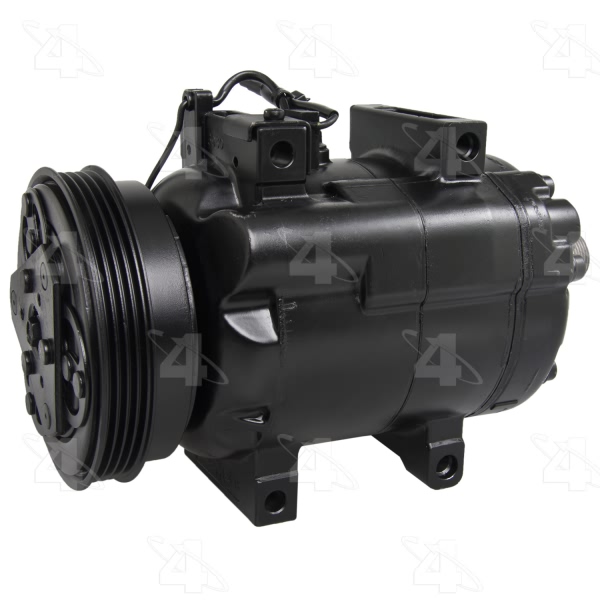

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Head Type | D213 |
| Compressor Type | DCW17D |
| Distance From Clutch To Mounting Flange | 1.953125 |
| Mount Distance MM | 49.530 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24608] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24610] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May require use of OE connector |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 120.650 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 4.750 |
| Pulley Outside Diameter | 4.750 |
| Pulley Ridge Diameter | 4.750 |
| Refrigerant Type | R134a |

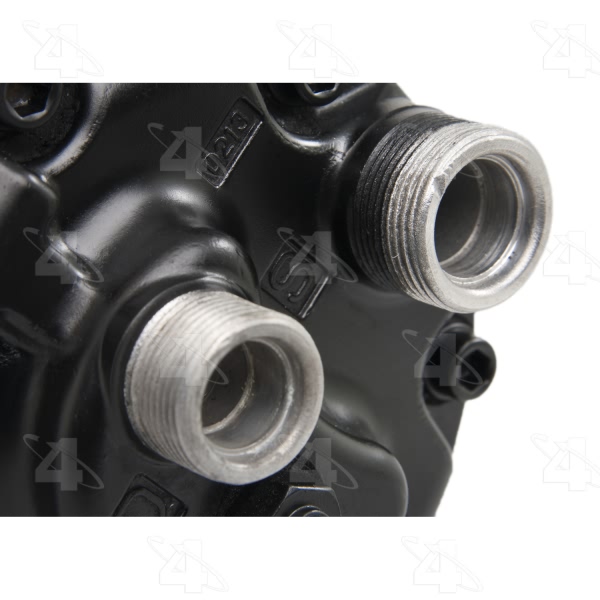

| Suction Port Type | O-Ring |
| Switch Service Port | w/o Switch Port |
| Terminal Type | Spade |
| UPC | 096361674516 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997 Audi A4 | All Trims | 6 Cyl 2.8L |
| 1997-2001 Audi A4 | All Trims | 4 Cyl 1.8L |
| 1997 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
| 1997-2001 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
| 1998-2005 Audi A6 | All Trims | All Engines |
| 1998-2001 Audi A6 Quattro | All Trims | All Engines |
| 2002-2005 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
| 2005 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
| 1998-2000 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
