Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 67574 |
| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.000 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Comp Head Prt Config | Top-Vert O-Ring |
| Compatible Refrigerant Oil Type | PAG 100 |
| Compressor Head Type | SR |
| Compressor Type | SD7H15 |

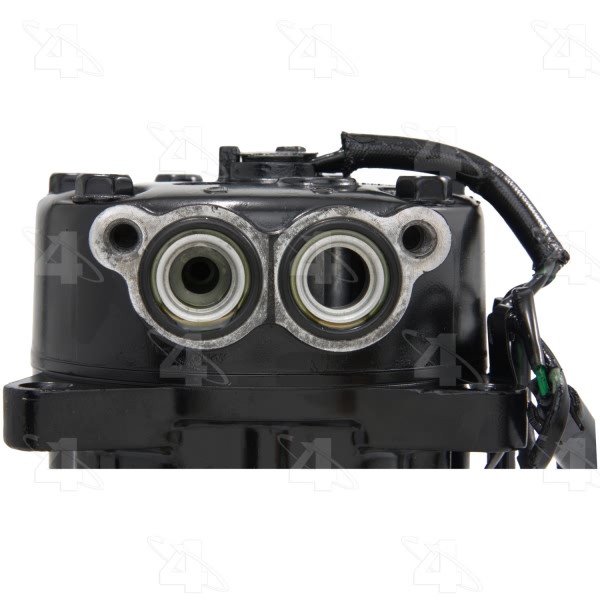

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.34375 |
| Mount Distance MM | 34.290 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24615] / Green O-Ring |
| O-Ring A Quantity | 2 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 127.000 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 5.000 |
| Pulley Outside Diameter | 5.000 |
| Pulley Ridge Diameter | 5.000 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Heat Sensor |
| Terminal Type | Bullet |
| UPC | 096361675742 |
| w/ Diode | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-1997 Volvo 960 | All Trims | All Engines |
| 1997-1998 Volvo S90 | All Trims | All Engines |
| 1997-1998 Volvo V90 | All Trims | All Engines |
