Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 67676 |

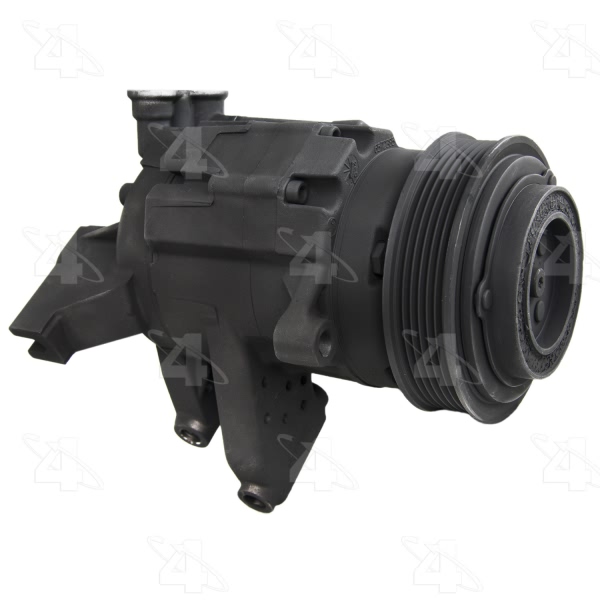

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.703125 |
| Coil Clock Position | 2 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | SP17 |

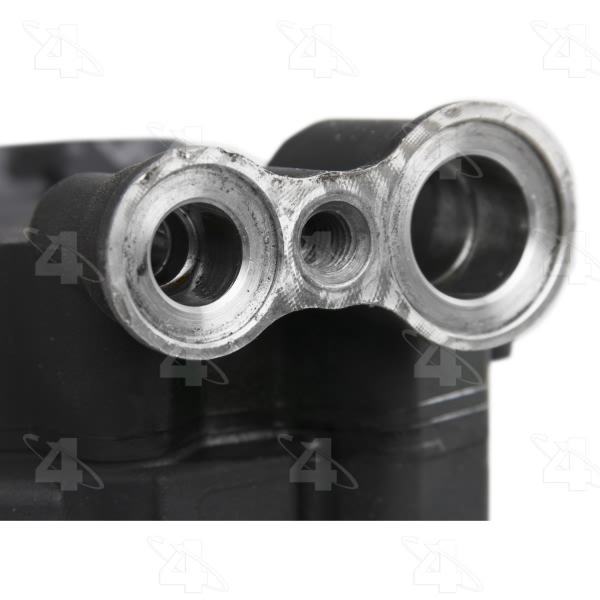

| Discharge Port Type | O-Ring / Gasket |
| Distance From Clutch To Mounting Flange | 1.0625 |
| Mount Distance MM | 26.924 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.634 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.703125 |
| Pulley Outside Diameter | 4.703125 |
| Pulley Ridge Diameter | 4.703125 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring / Gasket |

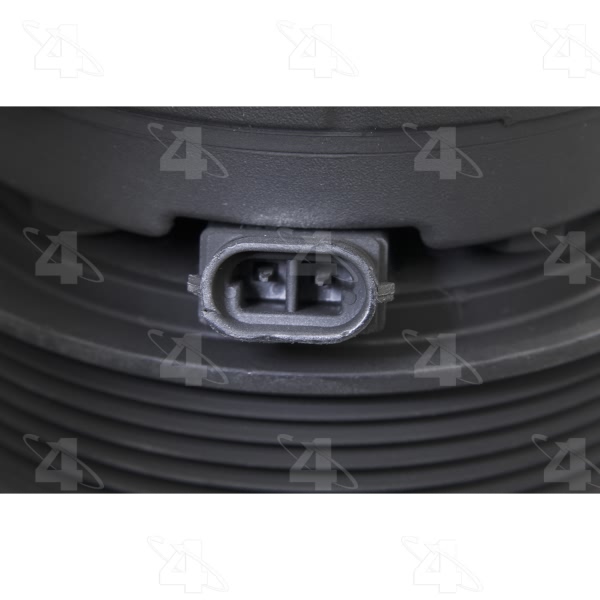

| Terminal Type | Pin |
| UPC | 096361676763 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2011 Chevrolet Equinox | All Trims | 6 Cyl 3.0L |
| 2010-2011 GMC Terrain | All Trims | 6 Cyl 3.0L |
