Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77322 |

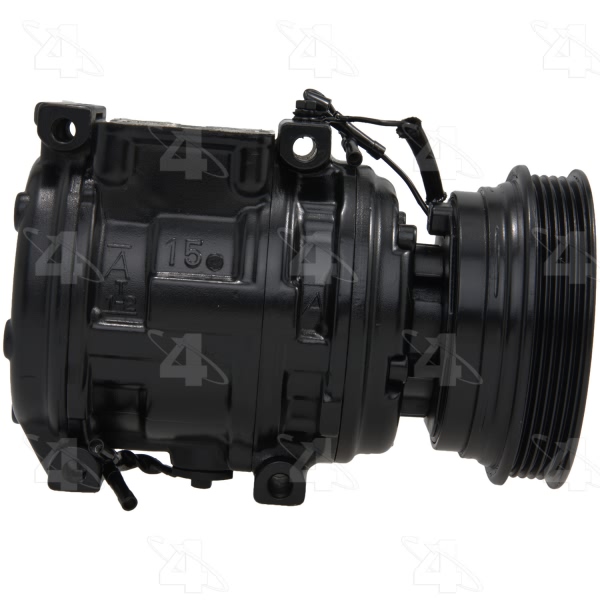

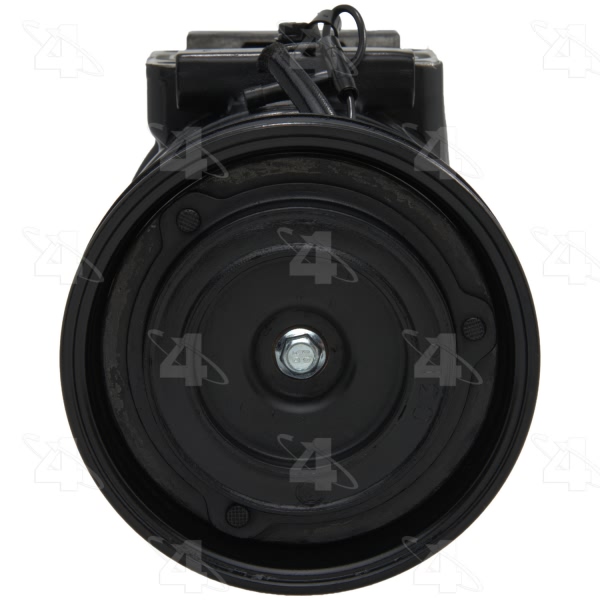

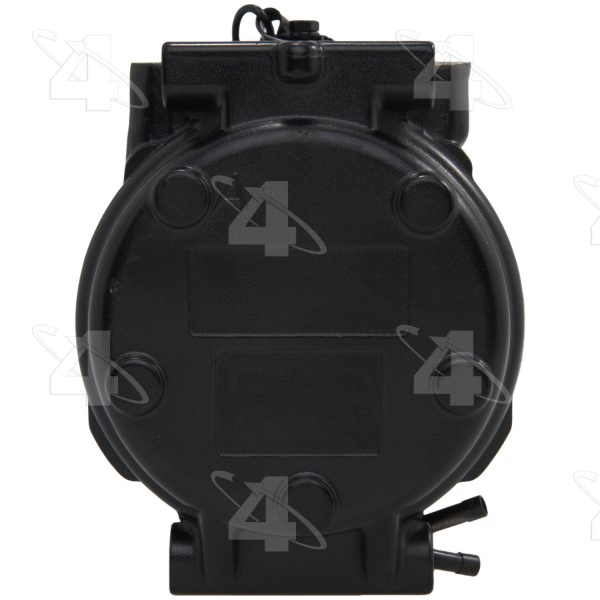

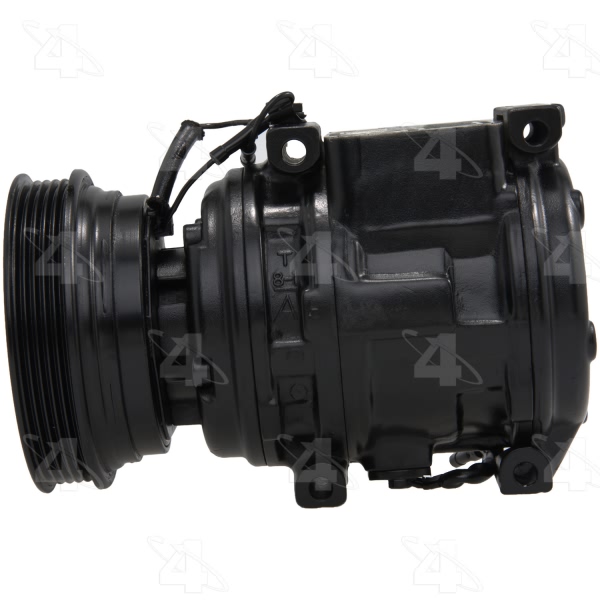

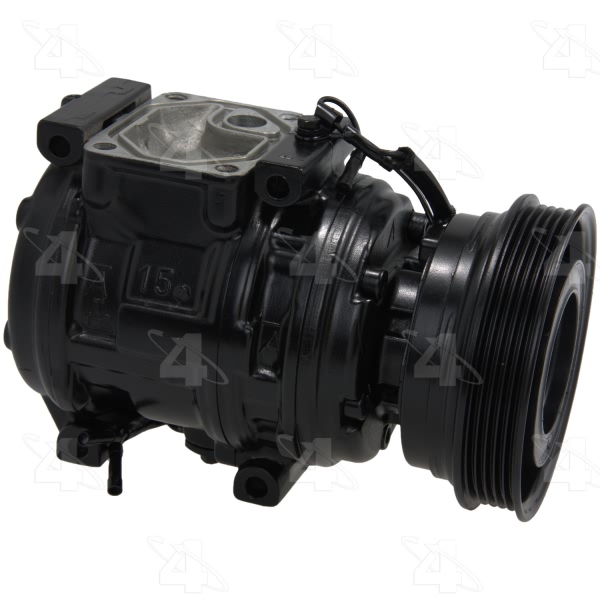

| Part Description | Remanufactured A C Compressor With Clutch |
| Belt Width IN | 0.875 |
| Belt Width MM | 22.225 |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.750 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10PA15L |

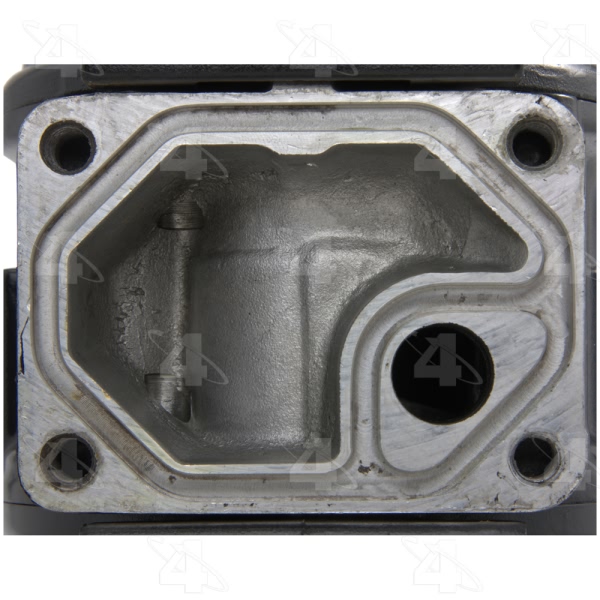

| Discharge Port Type | Pad Mount |
| Distance From Clutch To Mounting Flange | 3.09375 |
| Mount Distance MM | 78.740 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 120.650 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.750 |
| Pulley Outside Diameter | 4.750 |
| Pulley Ridge Diameter | 4.750 |
| Refrigerant Type | R134a |
| Suction Port Type | Pad Mount |
| Switch Included | Speed Sensor |
| Terminal Type | Pin |
| UPC | 096361773226 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2000 Toyota RAV4 | All Trims | 4 Cyl 2.0L |
