Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77334 |

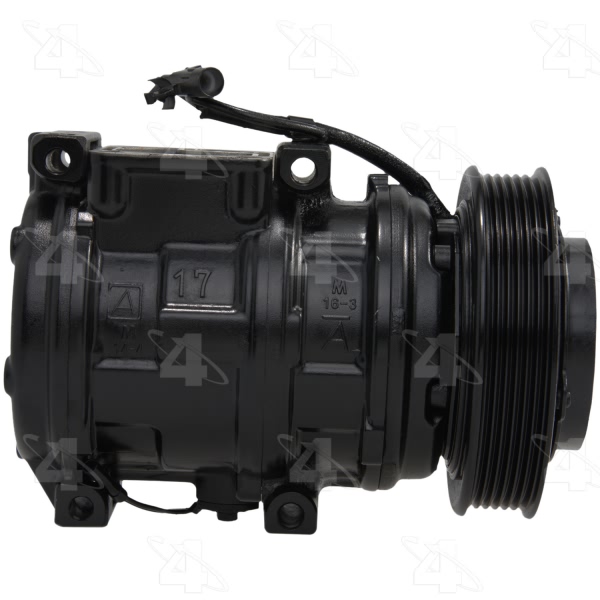

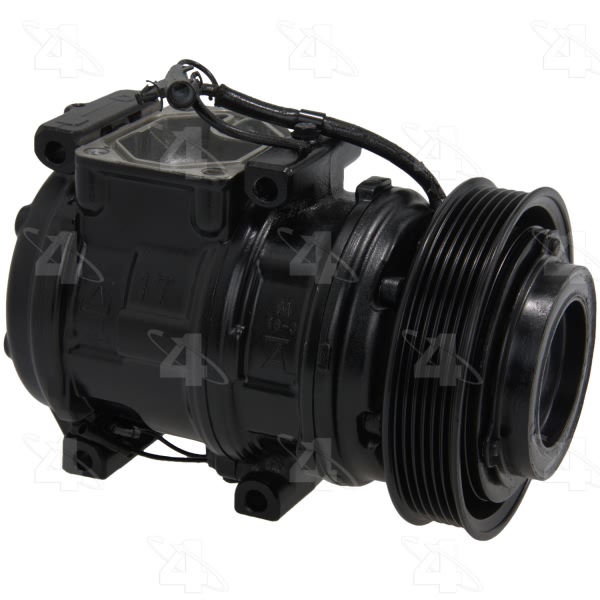

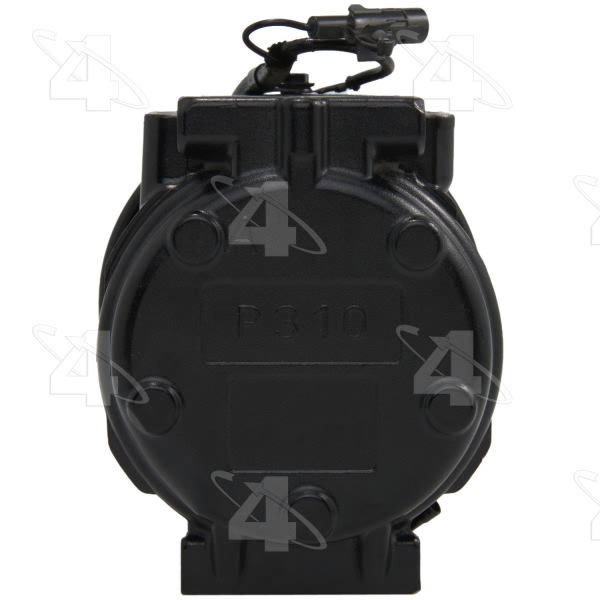

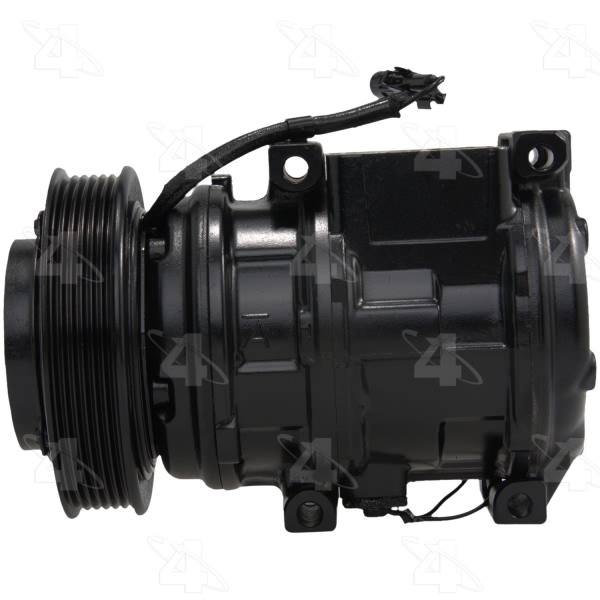

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10PA17C |

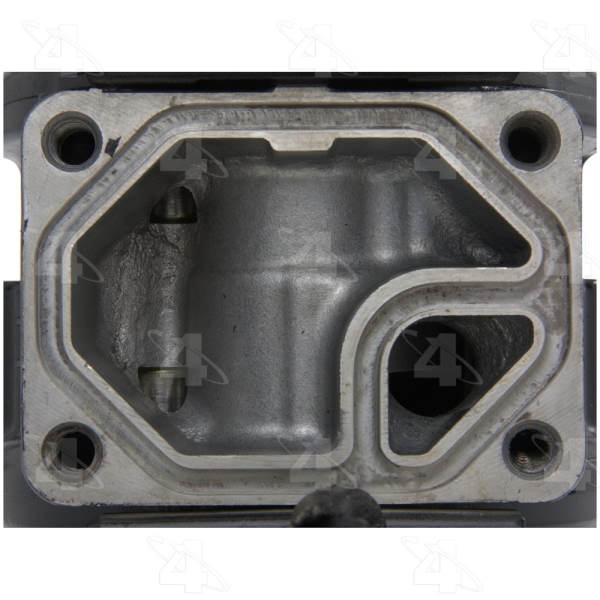

| Discharge Port Type | Pad Mount |
| Distance From Clutch To Mounting Flange | 2.265625 |
| Mount Distance MM | 57.658 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | Not Required |
| O-Ring B Quantity | NR |
| Printed Foot Note | May Require use of OE Manifold |

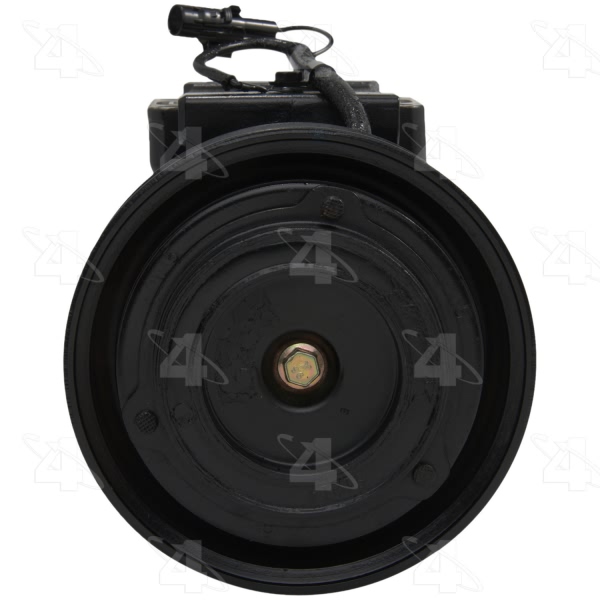

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 130.048 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 5.125 |
| Pulley Outside Diameter | 5.125 |
| Pulley Ridge Diameter | 5.125 |
| Refrigerant Type | R134a |
| Suction Port Type | Pad Mount |
| Switch Included | Speed Sensor |

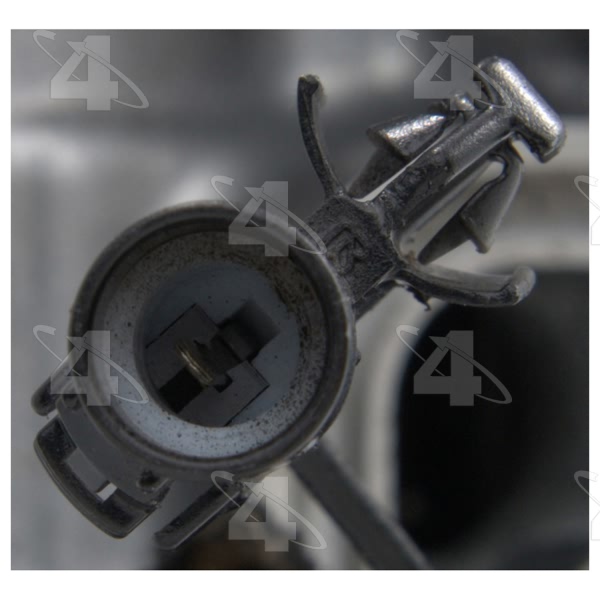

| Terminal Type | Pin |
| UPC | 096361773349 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1998 Lexus ES300 | All Trims | All Engines |
| 1995-1999 Toyota Avalon | All Trims | All Engines |
| 1994-2001 Toyota Camry | All Trims | 6 Cyl 3.0L |
| 1999-2003 Toyota Solara | All Trims | 6 Cyl 3.0L |
