Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77362 |

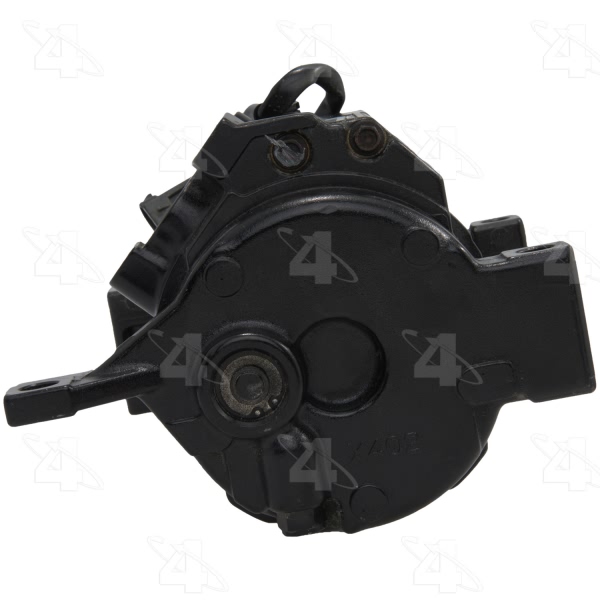

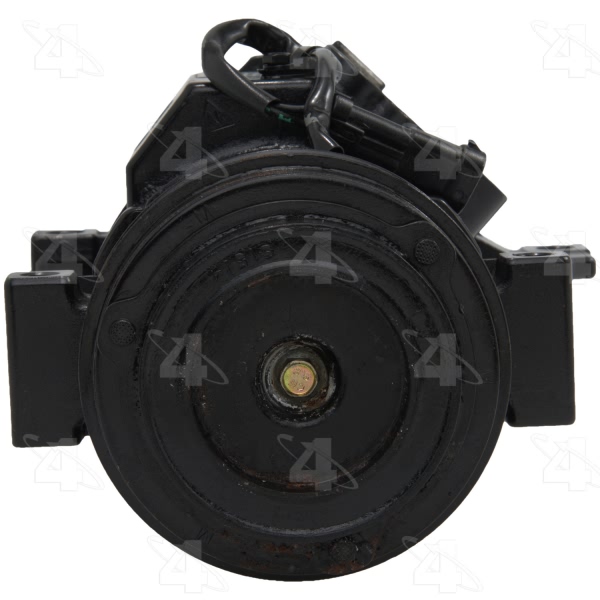

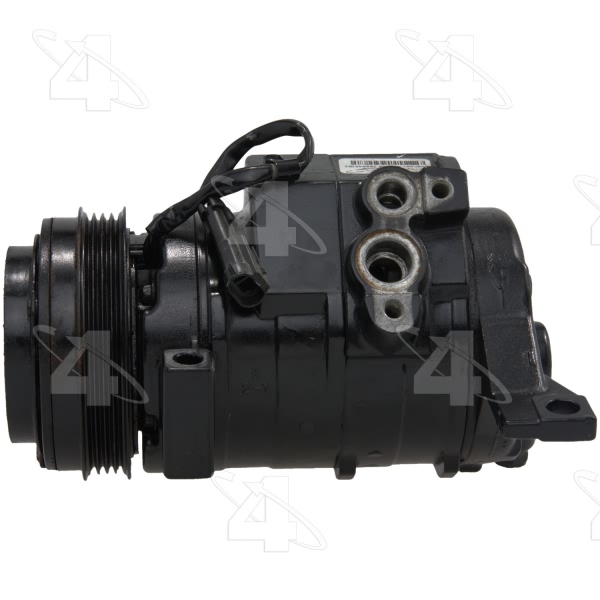

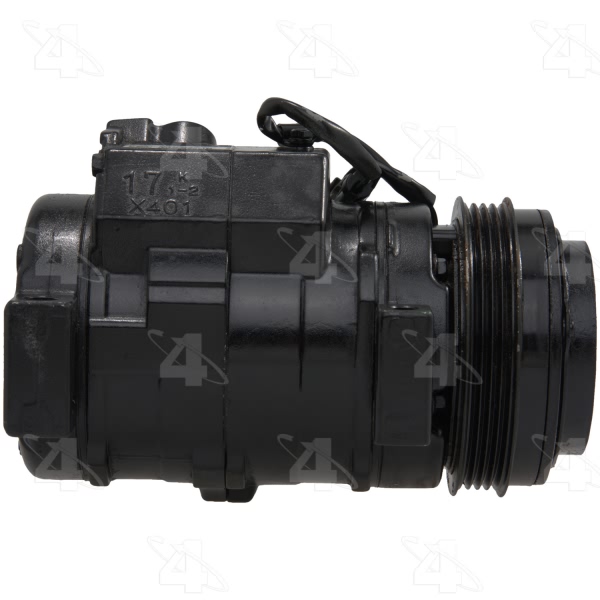

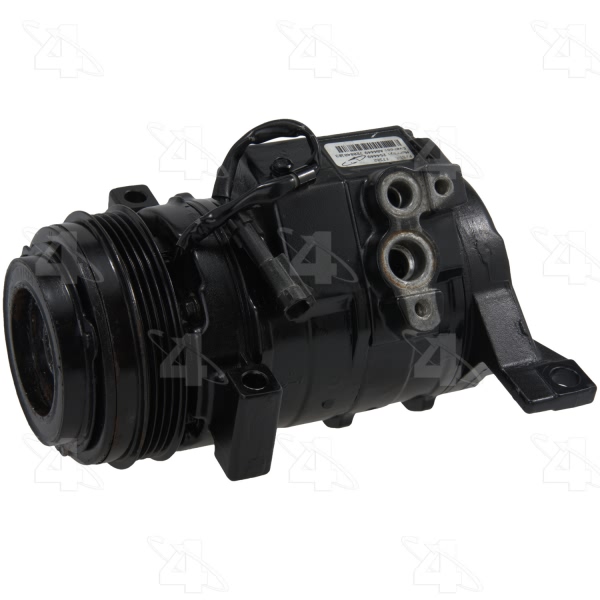

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10S17F |

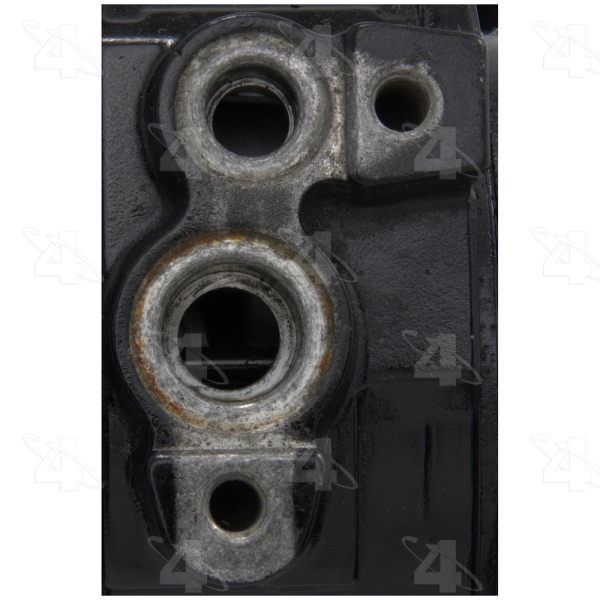

| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 0.65625 |
| Mount Distance MM | 16.510 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold; DeSlugger [36141] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 107.950 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 4.250 |
| Pulley Outside Diameter | 4.250 |
| Pulley Ridge Diameter | 4.250 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |
| Switch Included | Switch |

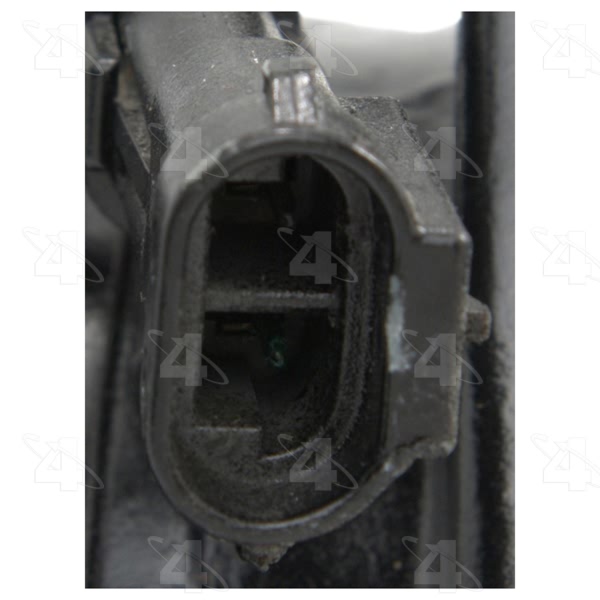

| Terminal Type | Pin |
| UPC | 096361773622 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002 Cadillac Escalade | All Trims | All Engines |
| 2002 Cadillac Escalade EXT | All Trims | All Engines |
| 2002 Chevrolet Avalanche 1500 | All Trims | All Engines |
| 2002 Chevrolet Avalanche 2500 | All Trims | All Engines |
| 2003-2013 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
| 2003-2005 Chevrolet Express 2500 | All Trims | 8 Cyl 5.3L |
| 2003-2013 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
| 2003-2013 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
| 2015-2017 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
| 2015-2019 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
