Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77374 |

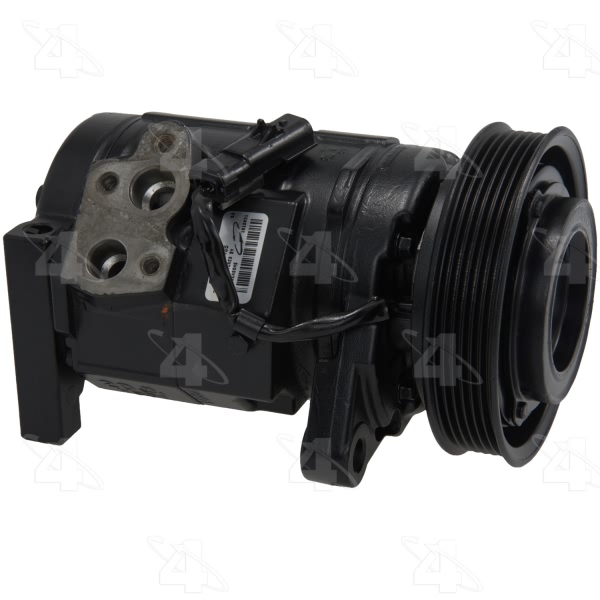

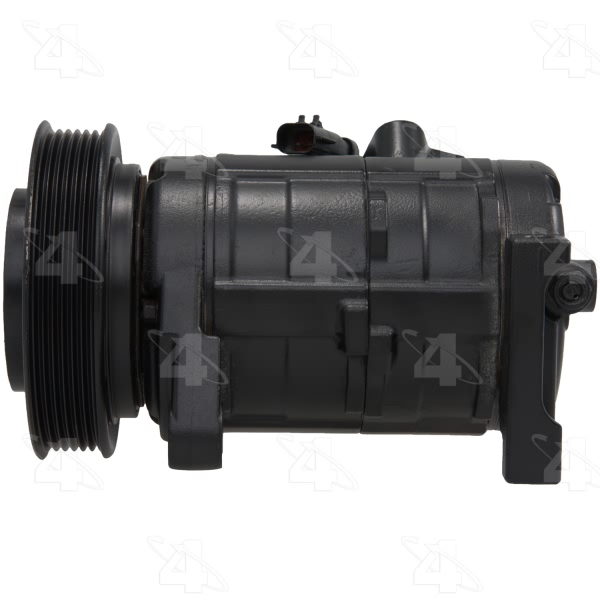

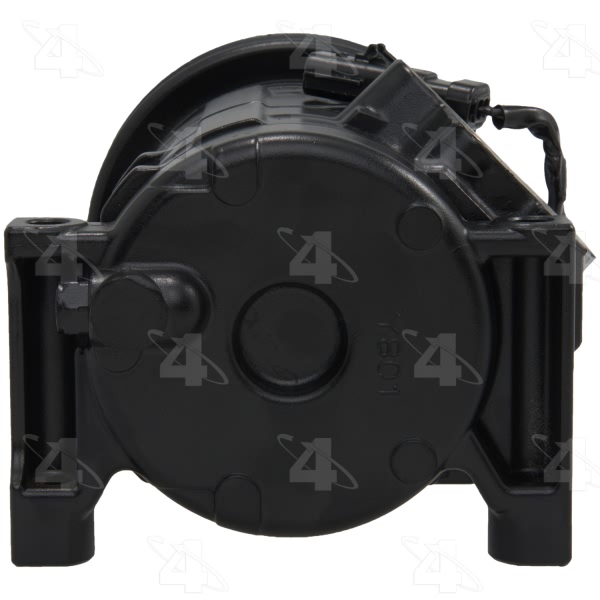

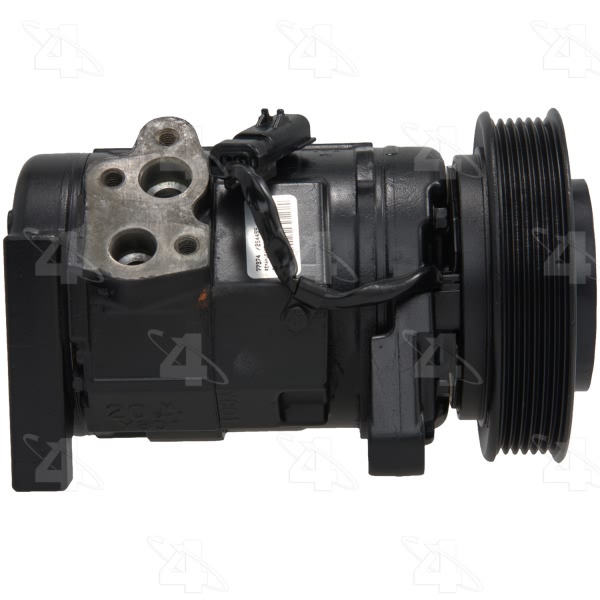

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 5.125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10S20H |

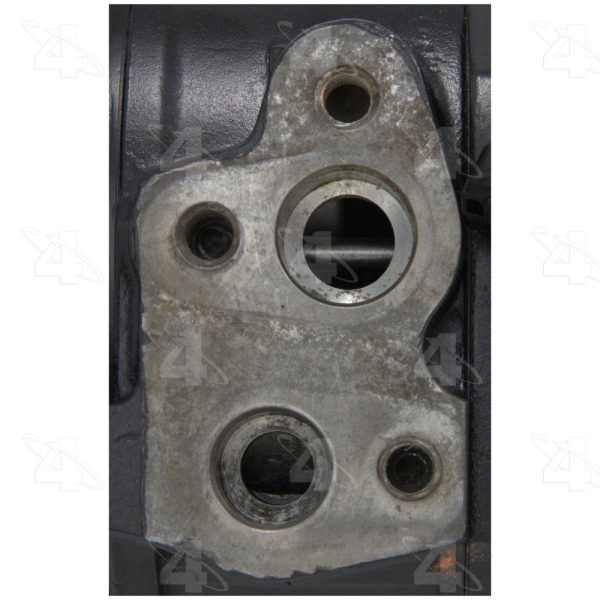

| Discharge Port Type | O-Ring / Gasket |
| Distance From Clutch To Mounting Flange | 1.078125 |
| Mount Distance MM | 27.178 |
| Mounting Hardware | Not Included |
| Mounting Type | 2 Ear & 2 Boss |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24068] / Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24069] / Gasket |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Connector and OE Manifold; DeSlugger [36142] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |

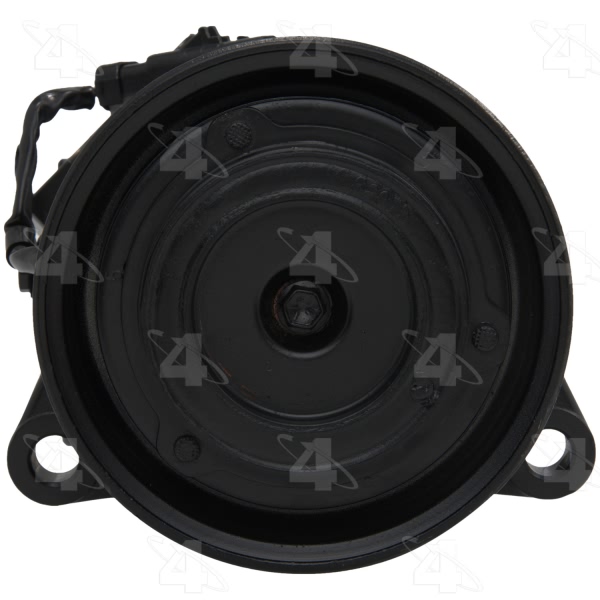

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 130.048 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 5.125 |
| Pulley Outside Diameter | 5.125 |
| Pulley Ridge Diameter | 5.125 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring / Gasket |

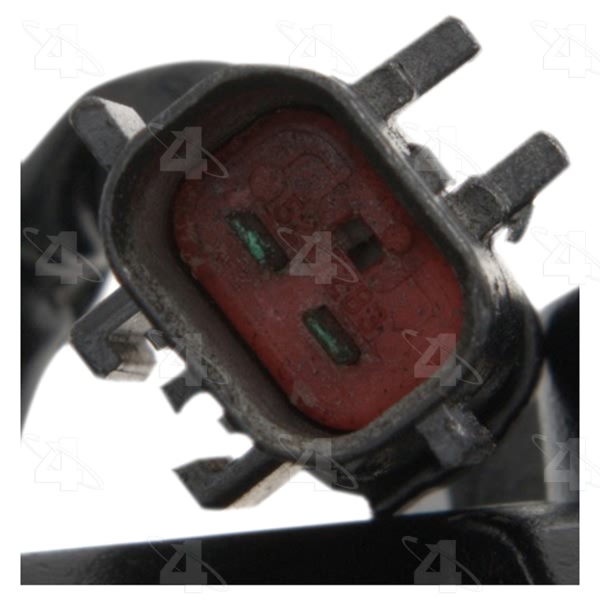

| Terminal Type | Pin |
| UPC | 096361773745 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2002 Chrysler Grand Voyager | All Trims | All Engines |
| 2001-2007 Chrysler Town & Country | All Trims | All Engines |
| 2001-2003 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
| 2004-2007 Chrysler Voyager | All Trims | All Engines |
| 2001-2002 Dodge Caravan | All Trims | 6 Cyl 3.3L |
| 2003 Dodge Caravan | All Trims | All Engines |
| 2004-2007 Dodge Caravan | All Trims | 6 Cyl 3.3L |
| 2001-2007 Dodge Grand Caravan | All Trims | All Engines |
