Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77404 |

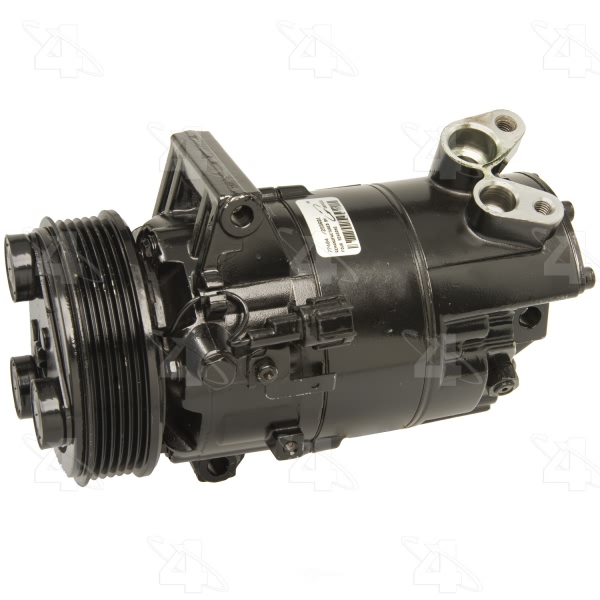

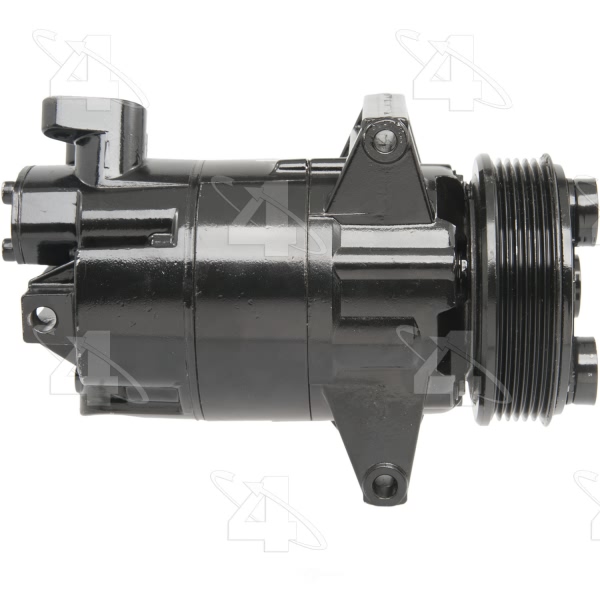

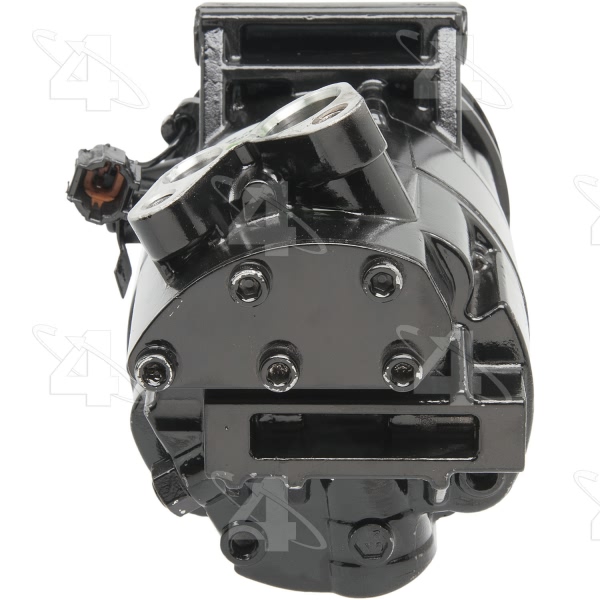

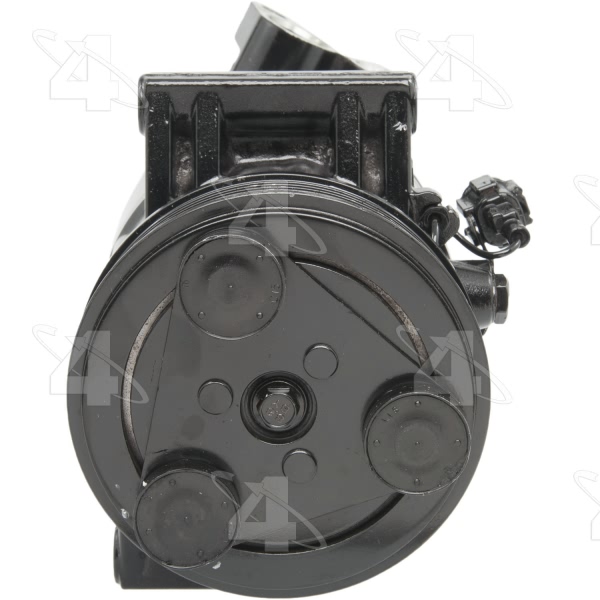

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | CSV511 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.40625 |
| Mount Distance MM | 35.560 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24602] / Green Round O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24659] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 107.950 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.250 |
| Pulley Outside Diameter | 4.250 |
| Pulley Ridge Diameter | 4.250 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361774049 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2008 Nissan Versa | All Trims | All Engines |
| 2009-2010 Nissan Versa | All Trims | 4 Cyl 1.8L |
