Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 77570 |

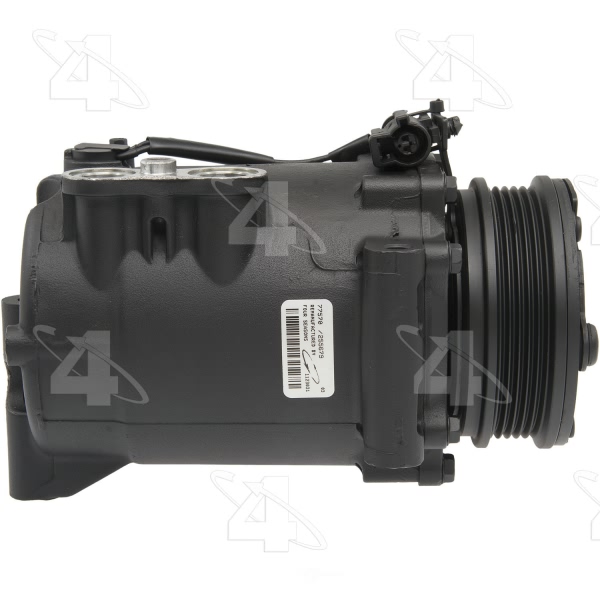

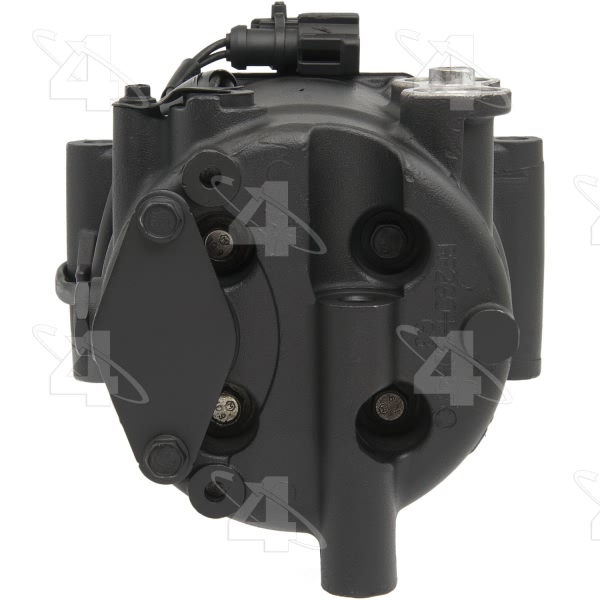

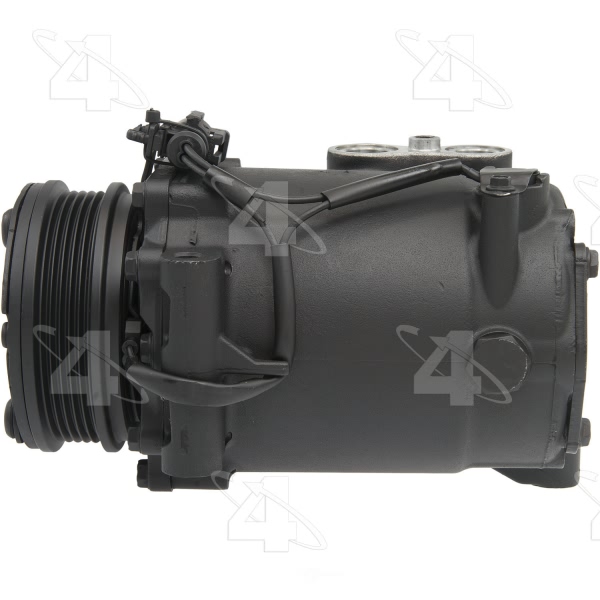

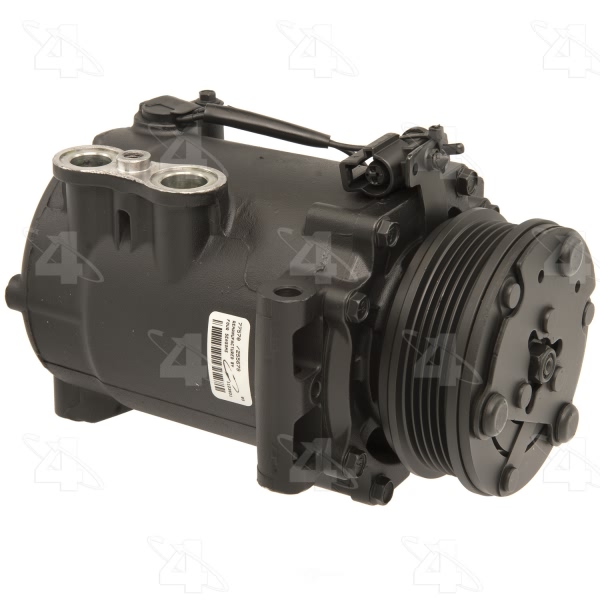

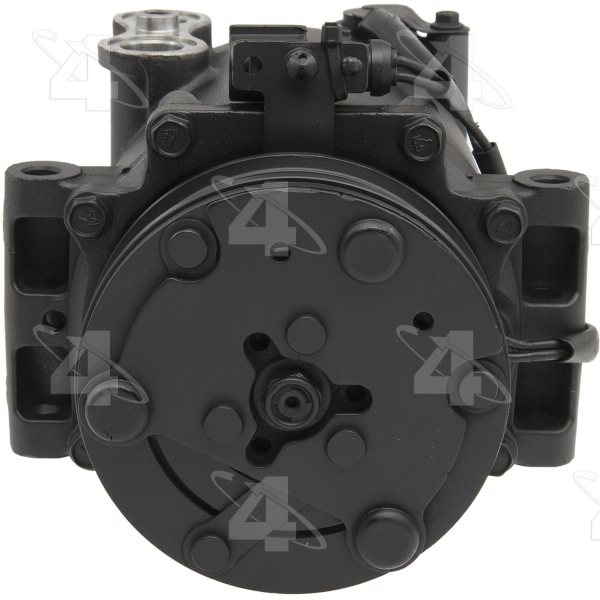

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.000 |
| Coil Clock Position | 12 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | Scroll |
| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 1.203125 |
| Mount Distance MM | 30.480 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Printed Foot Note | With 24.7mm discharge port |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 101.600 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.000 |
| Pulley Outside Diameter | 4.000 |
| Pulley Ridge Diameter | 4.000 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |
| Switch Included | Heat Sensor |
| Terminal Type | Pin |
| UPC | 096361775701 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2007 Saturn Vue | All Trims | 4 Cyl 2.2L |
