Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 97271 |

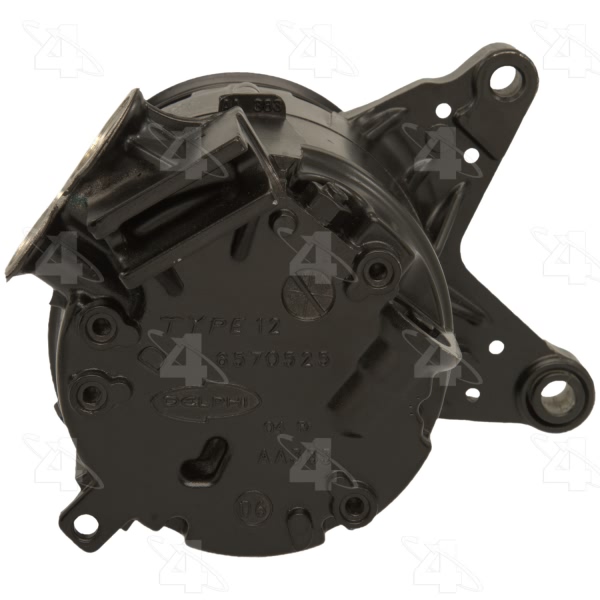

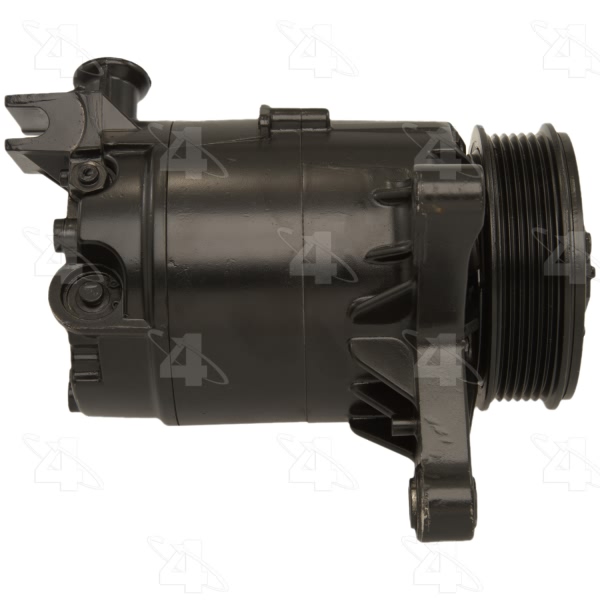

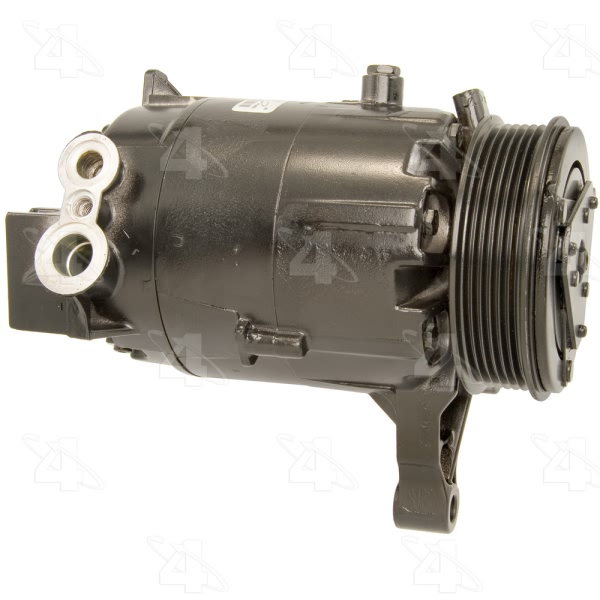

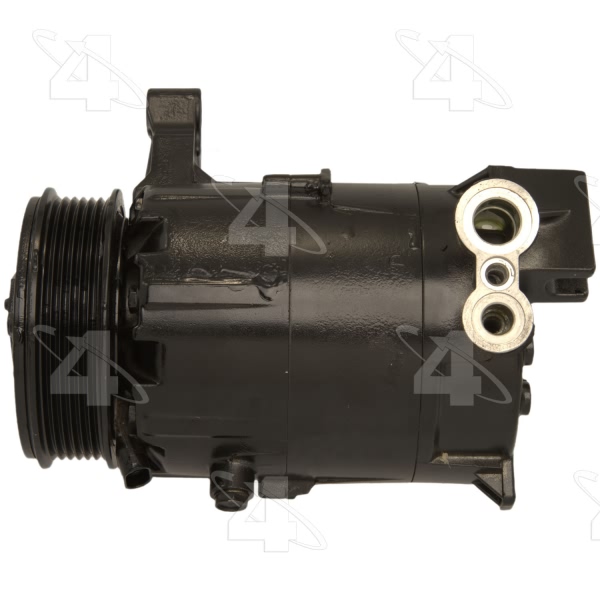

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.3125 |
| Coil Clock Position | 5 |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | CVC |

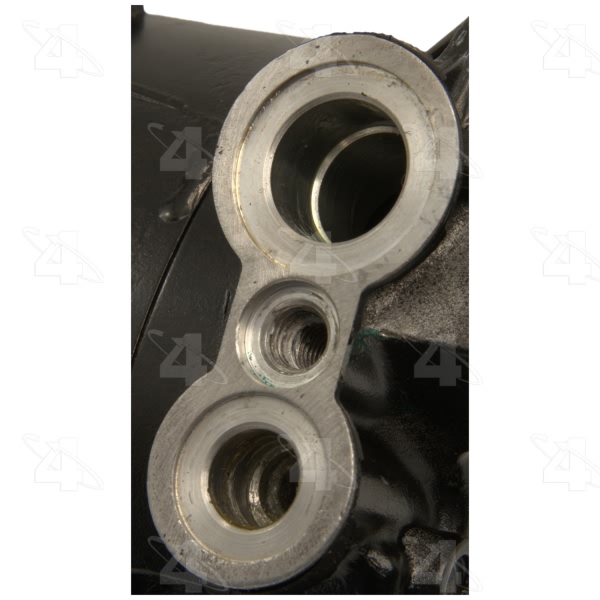

| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 0.65625 |
| Mount Distance MM | 16.510 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 93.650 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.3125 |
| Pulley Outside Diameter | 4.3125 |
| Pulley Ridge Diameter | 4.3125 |
| Refrigerant Type | R134a |
| Suc Prt Typ Note | 1 O'Clock |
| Suction Port Type | Sealing Washer |
| Switch Included | High Pressure |

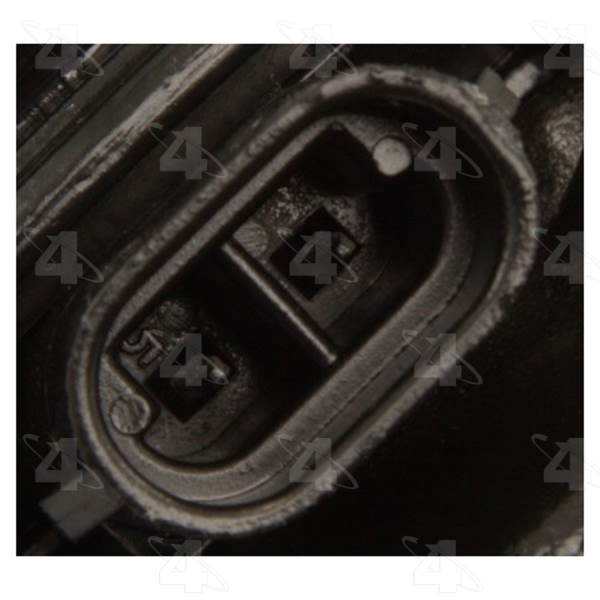

| Terminal Type | Pin |
| UPC | 096361972711 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2009 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
| 2006-2009 Chevrolet Impala | All Trims | 6 Cyl 3.9L |
| 2010-2011 Chevrolet Impala | All Trims | All Engines |
| 2006 Chevrolet Malibu | All Trims | 6 Cyl 3.9L |
| 2006 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.9L |
| 2006-2007 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.5L |
| 2006 Pontiac G6 | All Trims | 6 Cyl 3.9L |
