Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 97324 |

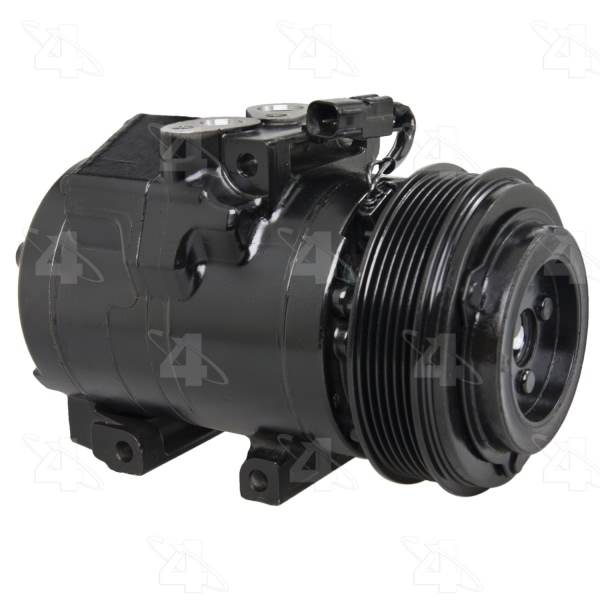

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.6875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | HCC-RS20 |

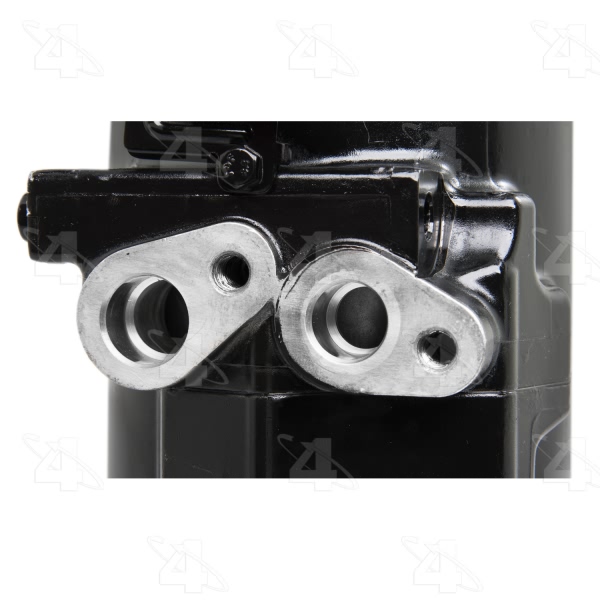

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.59375 |
| Mount Distance MM | 66.040 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.126 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.6875 |
| Pulley Outside Diameter | 4.6875 |
| Pulley Ridge Diameter | 4.6875 |
| Refrigerant Type | R-134a or R1234yf |
| Suction Port Type | O-Ring |

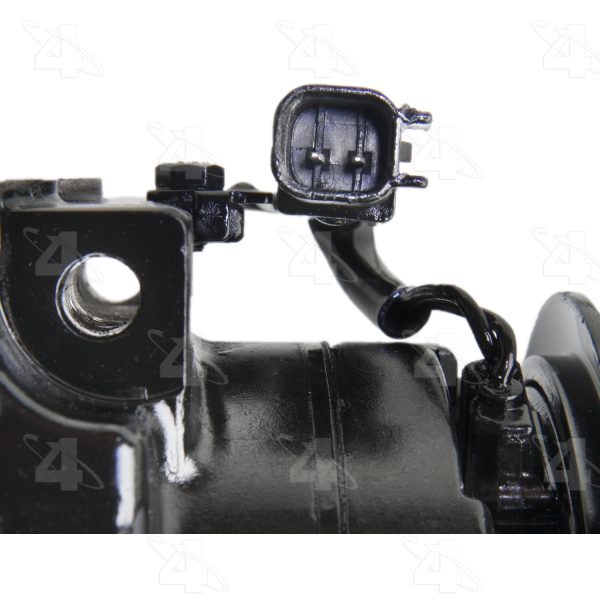

| Terminal Type | Pin |
| UPC | 096361973244 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2016 Ford F-350 | All Trims | All Engines |
| 2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
