Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 97358 |

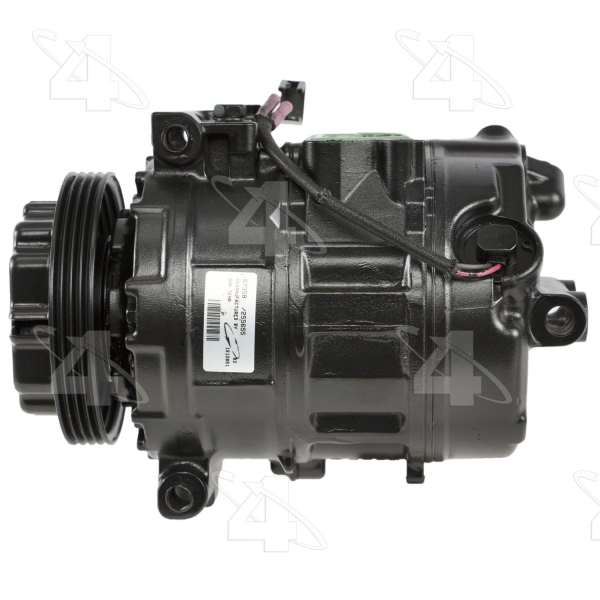

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.3125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SEU16C |

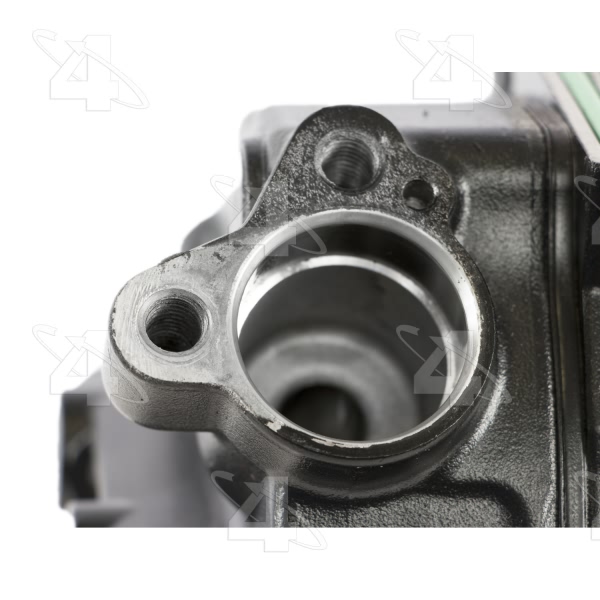

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.953125 |
| ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
| Mount Distance MM | 24.384 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |

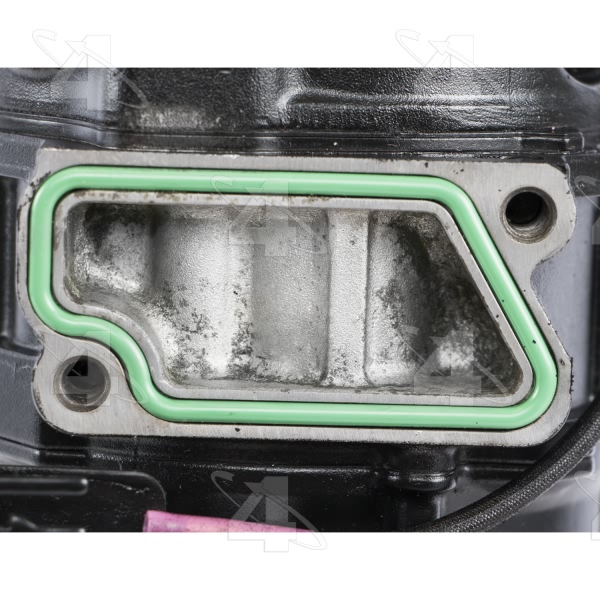

| O-Ring A Number/Desc | [24659] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24635] / Green Round O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 109.525 |
| Pulley Groove Quantity | 4 |
| Pulley Lip Diameter | 4.3125 |
| Pulley Outside Diameter | 4.3125 |
| Pulley Ridge Diameter | 4.3125 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361973589 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 BMW 545i | All Trims | All Engines |
| 2006-2009 BMW 550i | All Trims | All Engines |
| 2004-2005 BMW 645Ci | All Trims | All Engines |
| 2006-2009 BMW 650Ci | All Trims | All Engines |
| 2006-2009 BMW 650i | All Trims | All Engines |
| 2002-2005 BMW 745Li | All Trims | All Engines |
| 2002-2005 BMW 745i | All Trims | All Engines |
| 2006-2009 BMW 750Li | All Trims | All Engines |
| 2006-2009 BMW 750i | All Trims | All Engines |
| 2003-2009 BMW 760Li | All Trims | All Engines |
