Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 97388 |

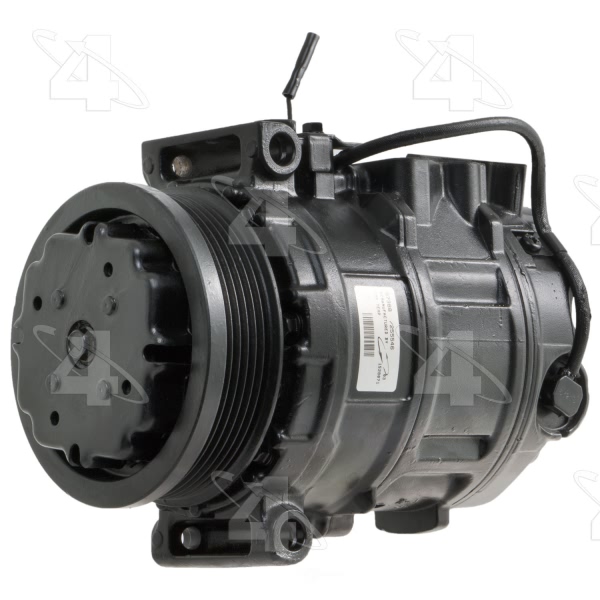

| Part Description | Remanufactured A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.3125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SEU16C |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.59375 |
| Mount Distance MM | 15.240 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | Remanufactured |
| O-Ring A Number/Desc | [24670] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24635] / Green Round O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 109.550 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.3125 |
| Pulley Outside Diameter | 4.3125 |
| Pulley Ridge Diameter | 4.3125 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361973886 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002 Mercedes-Benz CL500 | All Trims | All Engines |
| 2002 Mercedes-Benz CL55 AMG | All Trims | All Engines |
| 2001 Mercedes-Benz CL600 | All Trims | All Engines |
| 2002-2003 Mercedes-Benz G500 | All Trims | All Engines |
| 2003 Mercedes-Benz G55 AMG | All Trims | All Engines |
| 2000-2001 Mercedes-Benz S430 | All Trims | All Engines |
| 2001-2002 Mercedes-Benz S55 AMG | All Trims | All Engines |
| 2001 Mercedes-Benz S600 | All Trims | All Engines |
