Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36726 |

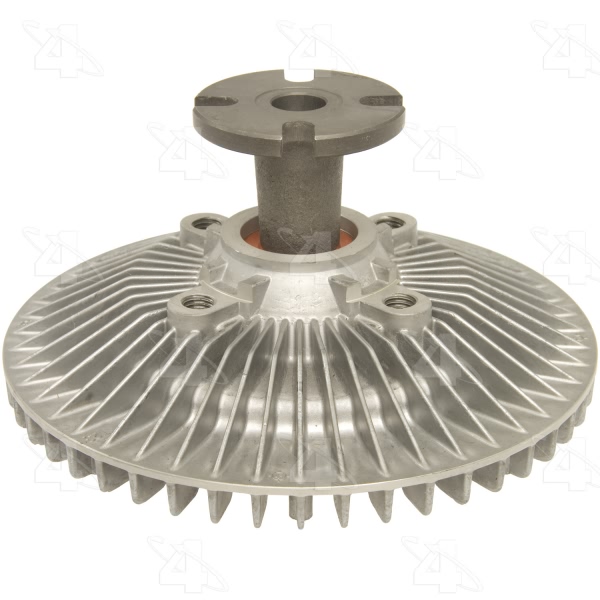

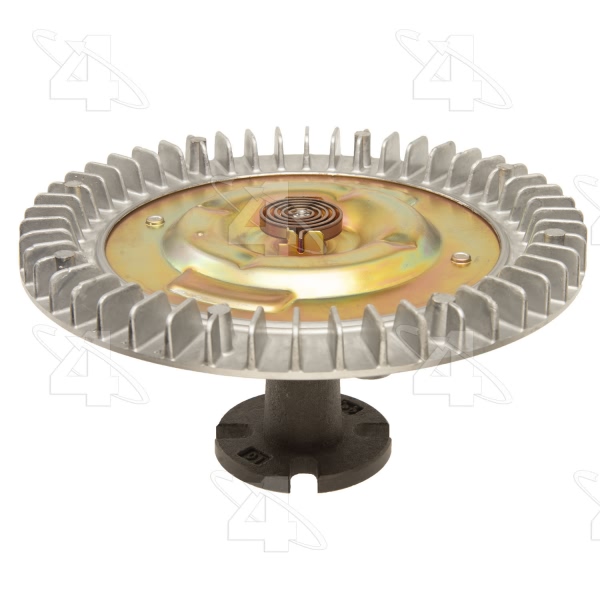

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M10 x 1.5 Hole |
| Clutch Maximum Diameter | 7.2 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.47 |
| Mount Dia. MM | 63 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 182.88 or 182.9 |
| Overall Height IN | 3.58 |
| Overall Height MM | 90.9 |
| Performance Rated | Yes |
| Pilot Depth IN | 1.03 |
| Pilot Depth MM | 26.2 |
| Pilot Dia. IN | 0.63 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361367265 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1993 Chevrolet S10 | All Trims | 6 Cyl 4.3L |
| 1988-1989 Chevrolet S10 Blazer | All Trims | 6 Cyl 4.3L |
| 1990-1993 Chevrolet S10 Blazer | All Trims | All Engines |
| 1992-1993 GMC Jimmy | All Trims | All Engines |
| 1988-1990 GMC S15 | All Trims | 6 Cyl 4.3L |
| 1988-1989 GMC S15 Jimmy | All Trims | 6 Cyl 4.3L |
| 1990-1991 GMC S15 Jimmy | All Trims | All Engines |
| 1991-1993 GMC Sonoma | All Trims | 6 Cyl 4.3L |
| 1991 GMC Syclone | All Trims | All Engines |
| 1992-1993 GMC Typhoon | All Trims | All Engines |
