Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36746 |

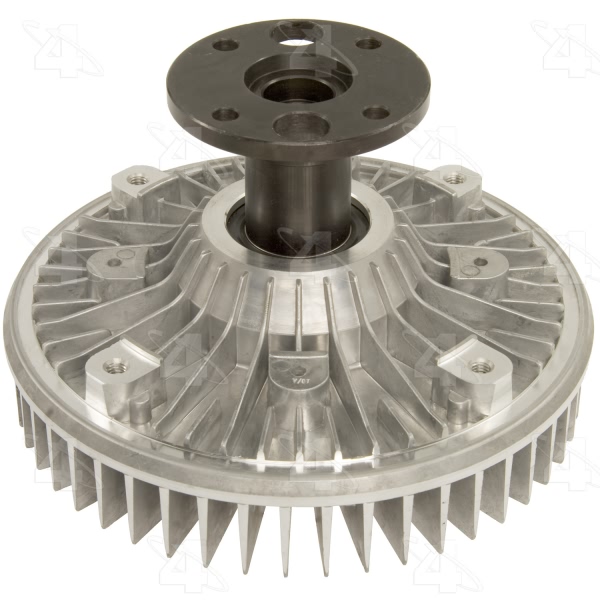

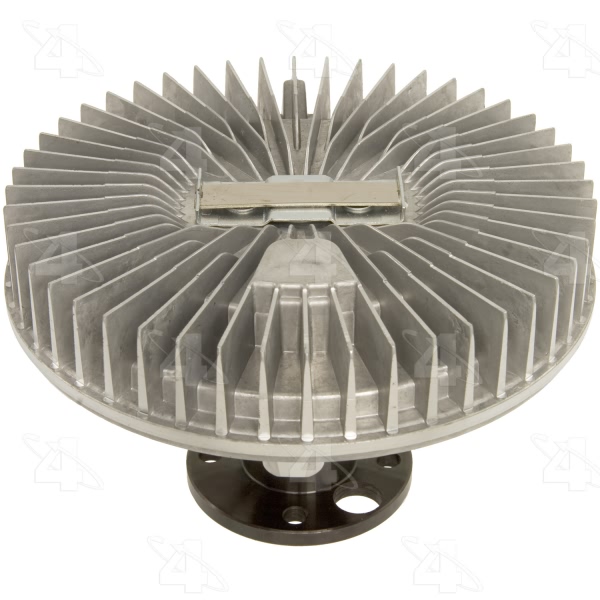

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.46 or 6.460 or 6.462 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.38 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 5.47 |
| Fan Bolt Circle MM | 138.9 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.84 |
| Mount Dia. MM | 72 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 164.1 |
| Overall Height IN | 4.5 |
| Overall Height MM | 114.3 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.46 |
| Pilot Depth MM | 11.7 |
| Pilot Dia. IN | 0.76 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361367463 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1992-1995 Mazda 929 | All Trims | All Engines |
| 1996-1998 Mazda MPV | All Trims | All Engines |
