Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36754 |

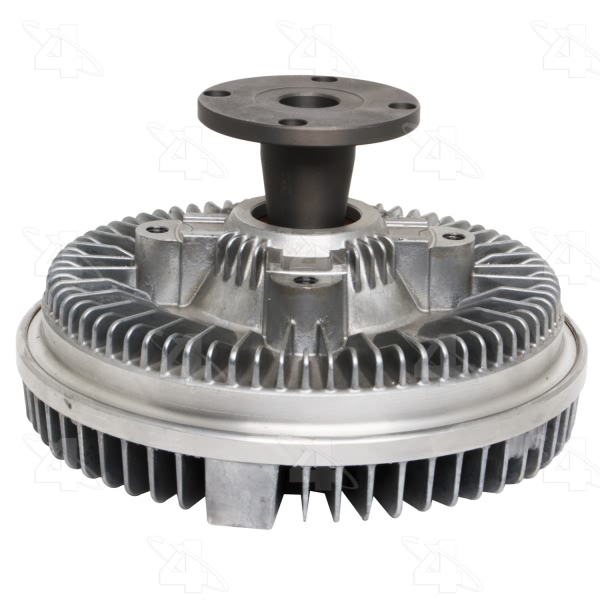

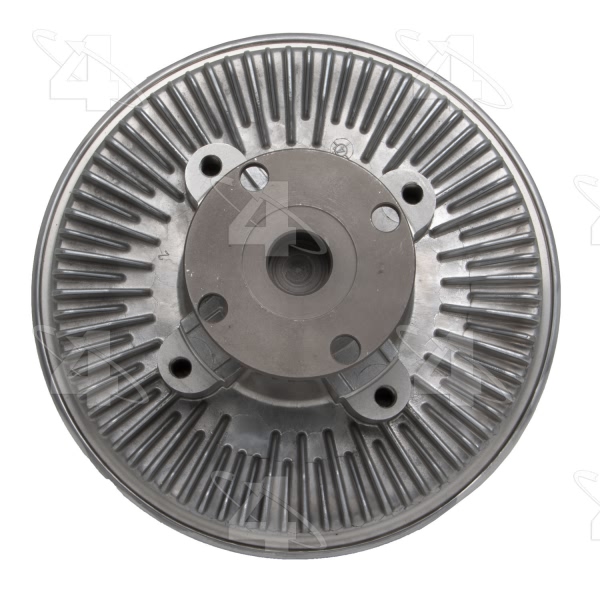

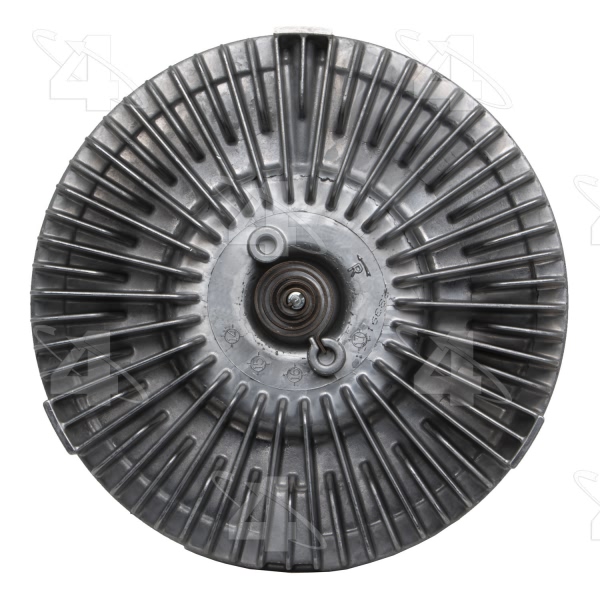

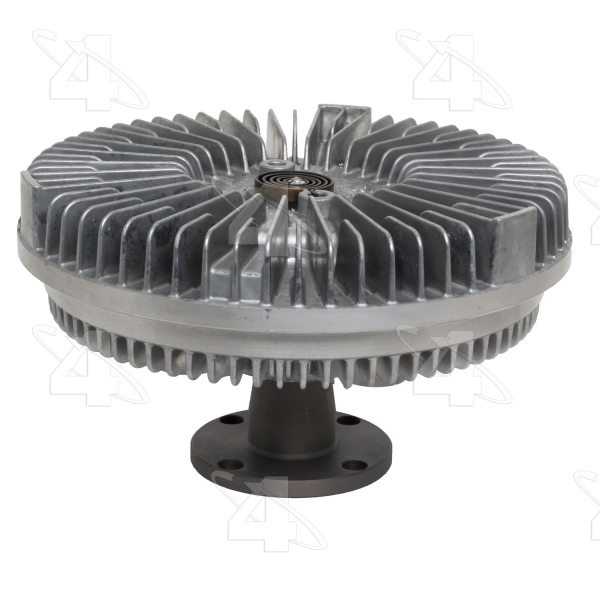

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M8 x 1.25 Hole |
| Clutch Maximum Diameter | 7.4 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.75 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.81 |
| Fan Bolt Circle MM | 96.8 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.82 |
| Mount Dia. MM | 72 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 188 |
| Overall Height IN | 4.27 |
| Overall Height MM | 108.3 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.65 or 0.66 |
| Pilot Depth MM | 16.5 or 16.51 |
| Pilot Dia. IN | 0.75 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361367548 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997 AM General Hummer | All Trims | All Engines |
| 1998 AM General Hummer | All Trims | 8 Cyl 6.5L |
| 1997-1998 Chevrolet C1500 | All Trims | 8 Cyl 6.5L |
| 1997-1999 Chevrolet C1500 Suburban | All Trims | 8 Cyl 6.5L |
| 1997-1999 Chevrolet C2500 | All Trims | 8 Cyl 6.5L |
| 1997-1999 Chevrolet C2500 Suburban | All Trims | 8 Cyl 6.5L |
| 1997-1999 Chevrolet C3500 | All Trims | 8 Cyl 6.5L |
| 1997-1998 Chevrolet Express 2500 | All Trims | 8 Cyl 6.5L |
| 1997-1998 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L |
| 1997-1998 Chevrolet K1500 | All Trims | 8 Cyl 6.5L |
