Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36950 |

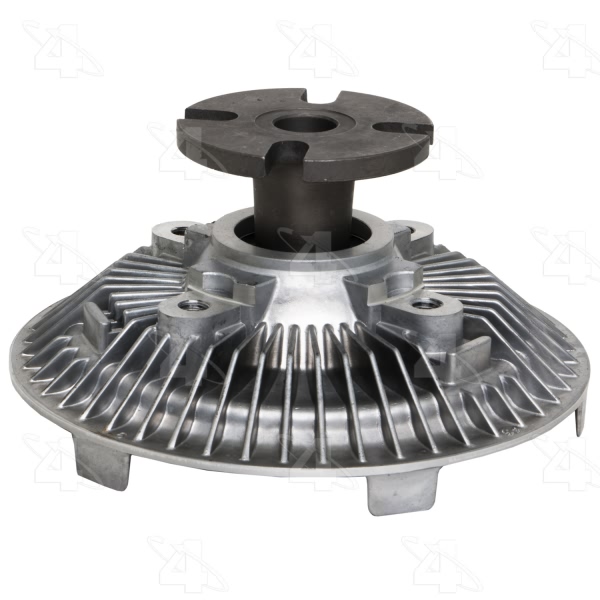

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 5.99 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.53 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.6 |
| Mount Dia. MM | 66 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 152.1 |
| Overall Height IN | 3.09 |
| Overall Height MM | 78.5 |
| Performance Rated | Yes |
| Pilot Depth IN | 1.03 |
| Pilot Depth MM | 26.2 |
| Pilot Dia. IN | 0.63 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361369504 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1983-1984 American Motors Eagle | All Trims | 4 Cyl 2.5L |
| 1988 American Motors Eagle | All Trims | All Engines |
| 1981-1983 Jeep CJ5 | All Trims | 6 Cyl 4.2L |
| 1981-1986 Jeep CJ7 | All Trims | 6 Cyl 4.2L |
| 1984-1993 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
| 1986-1992 Jeep Comanche | All Trims | 4 Cyl 2.5L |
| 1984-1987 Jeep Wagoneer | All Trims | 4 Cyl 2.5L |
| 1987-1990 Jeep Wrangler | All Trims | 6 Cyl 4.2L |
| 1991-1995 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
