Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36966 |

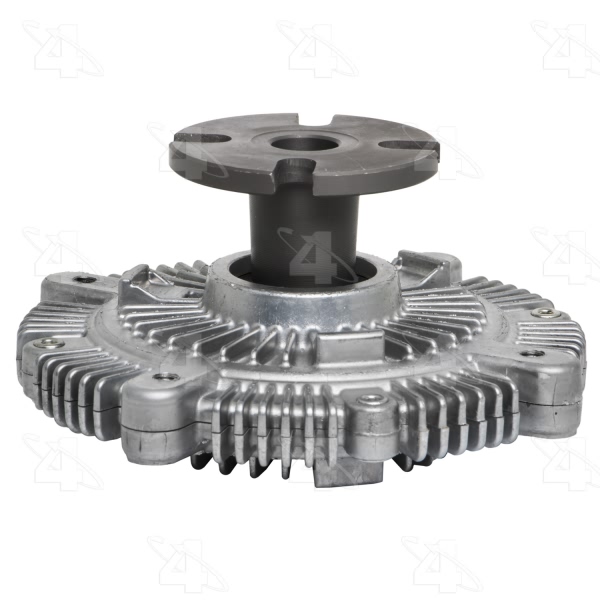

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 5.85 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.4 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 4.88 |
| Fan Bolt Circle MM | 124 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.56 |
| Mount Dia. MM | 65 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 148.59 or 148.6 |
| Overall Height IN | 2.92 |
| Overall Height MM | 74.2 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.75 |
| Pilot Depth MM | 19.05 or 19.1 |
| Pilot Dia. IN | 0.63 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361369665 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1985 Chevrolet Astro | All Trims | 4 Cyl 2.5L |
| 1986-1987 Ford Aerostar | All Trims | 4 Cyl 2.3L |
| 1996-1997 Ford F-100 Ranger | All Trims | 4 Cyl 2.3L |
| 1998-2000 Ford F-100 Ranger | All Trims | 4 Cyl 2.5L |
| 1983-1988 Ford Ranger | All Trims | 4 Cyl 2.0L |
| 1983-1997 Ford Ranger | All Trims | 4 Cyl 2.3L |
| 1998-2001 Ford Ranger | All Trims | 4 Cyl 2.5L |
| 1983-1984 Ford Thunderbird | All Trims | 4 Cyl 2.3L |
| 1985 GMC Safari | All Trims | 4 Cyl 2.5L |
| 1994-1997 Mazda B2300 | All Trims | All Engines |
