Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36970 |

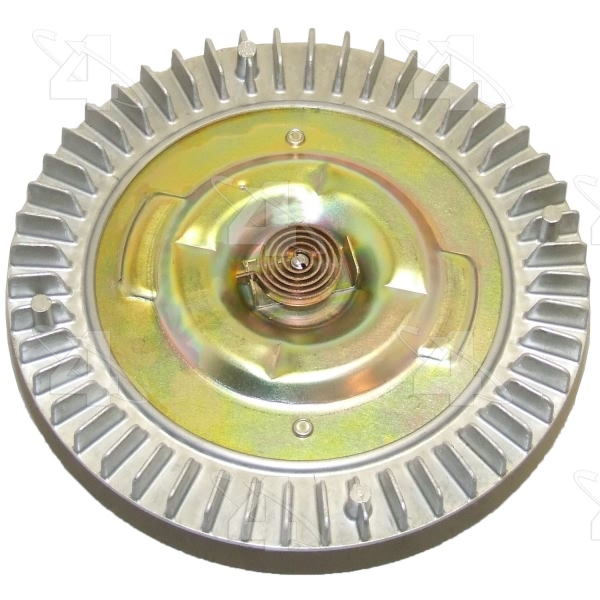

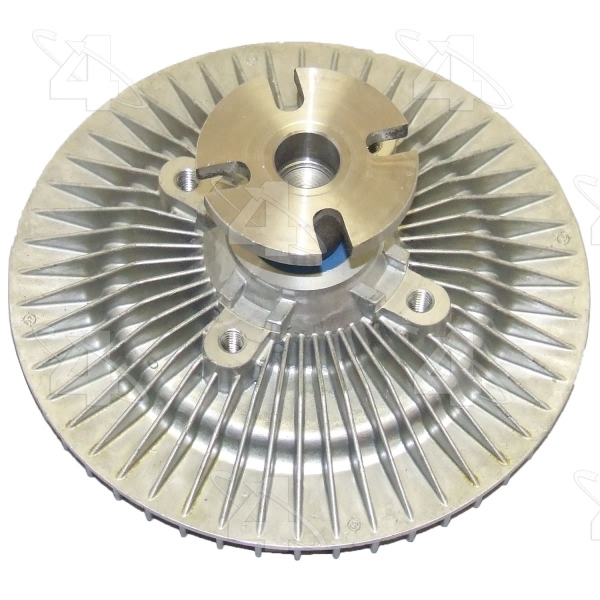

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.2 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.8 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.56 |
| Mount Dia. MM | 65 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 182.9 |
| Overall Height IN | 3.31 or 3.32 |
| Overall Height MM | 84.3 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.63 |
| Pilot Depth MM | 16 |
| Pilot Dia. IN | 0.75 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361369702 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1980 Chevrolet Corvette | All Trims | 8 Cyl 5.0L |
| 1980 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
| 1981-1982 Chevrolet Corvette | All Trims | All Engines |
