Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36987 |

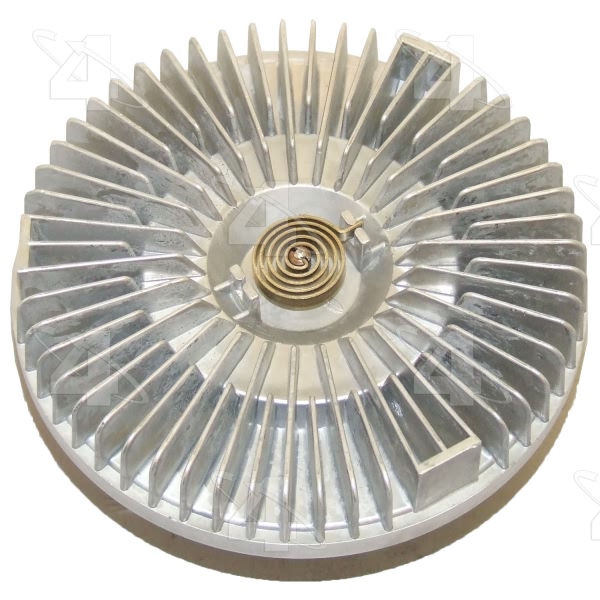

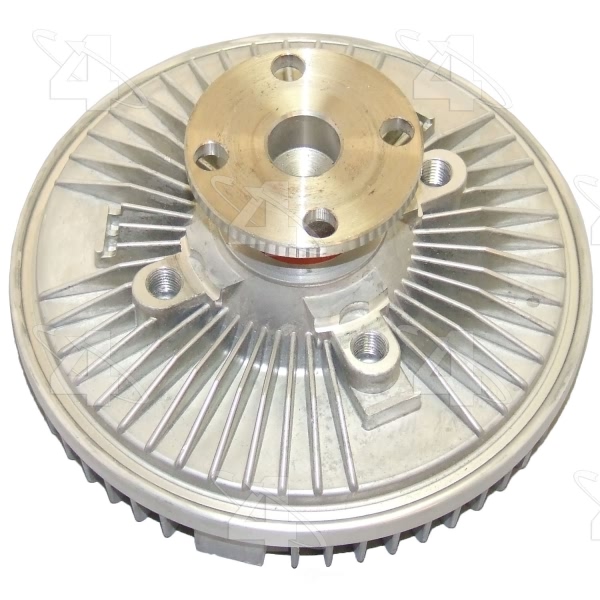

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M10 x 1.5 Hole |
| Clutch Maximum Diameter | 6.45 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.625 or 1.63 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.46 |
| Mount Dia. MM | 62 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 163.8 |
| Overall Height IN | 3.66 |
| Overall Height MM | 92.9 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.63 |
| Pilot Depth MM | 16 |
| Pilot Dia. IN | 0.75 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361369870 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994 AM General Hummer | All Trims | All Engines |
| 1995-1996 AM General Hummer | All Trims | 8 Cyl 6.5L |
| 1987-1991 Chevrolet Blazer | All Trims | 8 Cyl 6.2L |
| 1986 Chevrolet C10 | All Trims | 8 Cyl 6.2L |
| 1985-1986 Chevrolet C10 Suburban | All Trims | 8 Cyl 6.2L |
| 1988-1993 Chevrolet C1500 | All Trims | 8 Cyl 6.2L |
| 1986 Chevrolet C20 | All Trims | 8 Cyl 6.2L |
| 1985-1986 Chevrolet C20 Suburban | All Trims | 8 Cyl 6.2L |
| 1988-1993 Chevrolet C2500 | All Trims | 8 Cyl 6.2L |
| 1986 Chevrolet C30 | All Trims | 8 Cyl 6.2L |
