Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 36997 |

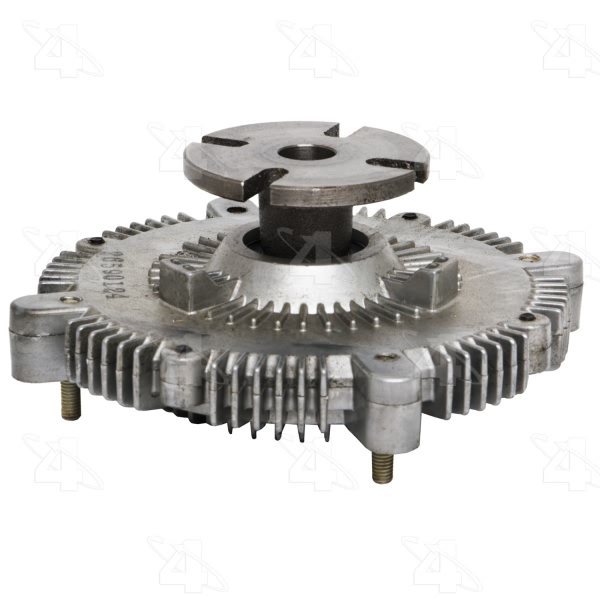

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.65 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.289 or 2.29 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 5.35 |
| Fan Bolt Circle MM | 135.89 or 135.9 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 2.73 |
| Mount Dia. MM | 69 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 168.9 or 168.91 |
| Overall Height IN | 2.86 |
| Overall Height MM | 72.6 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.2 |
| Pilot Depth MM | 5.08 or 5.1 |
| Pilot Dia. IN | .59 to .63 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361369979 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1990 Volvo 760 | All Trims | 6 Cyl 2.8L |
| 1987-1988 Volvo 780 | All Trims | All Engines |
| 1989-1990 Volvo 780 | All Trims | 6 Cyl 2.8L |
