Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46002 |

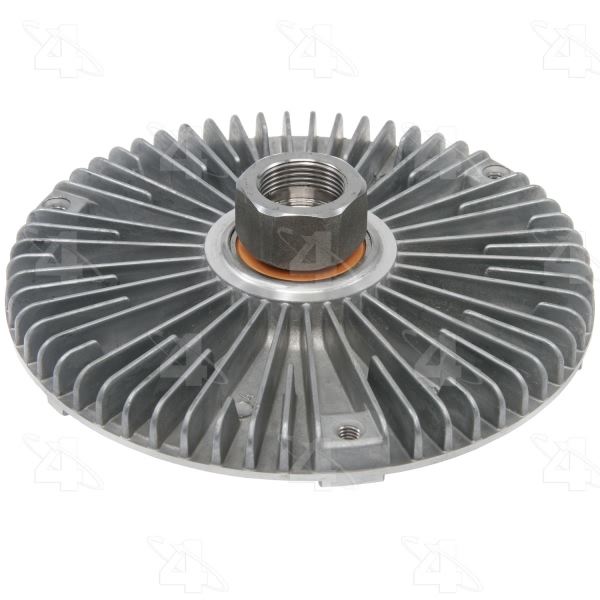

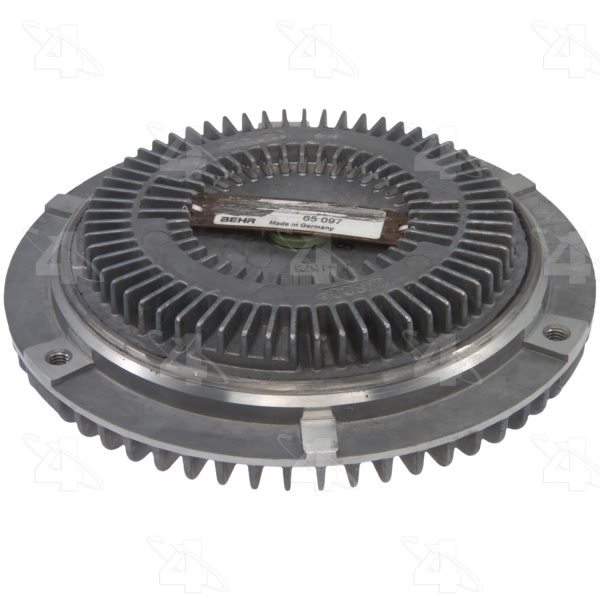

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 3 |
| Bolt Quantity | 3 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 6.3 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.455 or 1.46 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 5.79 |
| Fan Bolt Circle MM | 147.1 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.26 HEX |
| Mount Dia. MM | 32 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 3 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 160 |
| Overall Height IN | 2.16 |
| Overall Height MM | 54.8 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.58 |
| Pilot Depth MM | 14.9 |
| Pilot Dia. IN | M24x1.500 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361460027 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1989-1993 BMW 535i | All Trims | All Engines |
| 1987-1992 BMW 735i | All Trims | All Engines |
| 1988-1992 BMW 735iL | All Trims | All Engines |
| 2001-2006 BMW M3 | All Trims | All Engines |
| 1991-1993 BMW M5 | All Trims | All Engines |
| 2001-2002 BMW Z3 | All Trims | 6 Cyl 3.2L |
