Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46039 |

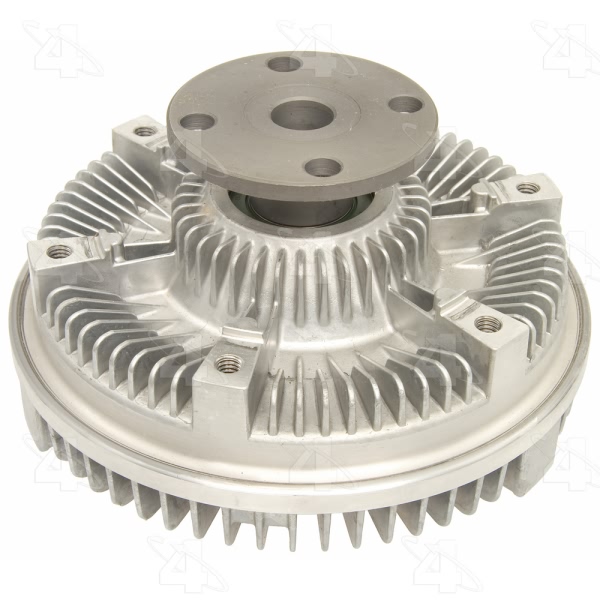

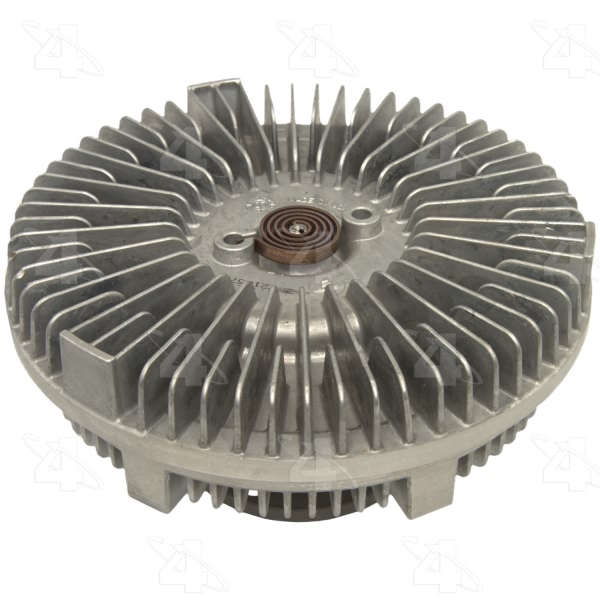

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 6 |
| Bolt Quantity | 6 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.4 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.5 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 6 |
| Fan Bolt Circle MM | 152.4 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 3.22 |
| Mount Dia. MM | 82 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 6 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 187.96 or 188 |
| Overall Height IN | 3.83 |
| Overall Height MM | 97.2 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.65 or 0.66 |
| Pilot Depth MM | 16.5 or 16.51 |
| Pilot Dia. IN | 0.75 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361460393 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1985-1989 Chevrolet P20 | All Trims | 6 Cyl 4.8L |
| 1985-1989 Chevrolet P30 | All Trims | 6 Cyl 4.8L |
| 1985-1987 GMC P2500 | All Trims | 6 Cyl 4.8L |
| 1989 GMC P2500 | All Trims | 6 Cyl 4.8L |
| 1985-1989 GMC P3500 | All Trims | 6 Cyl 4.8L |
