Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46043 |

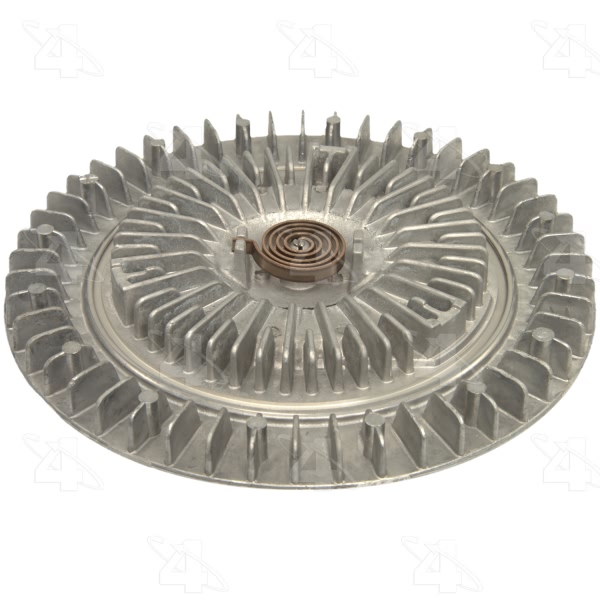

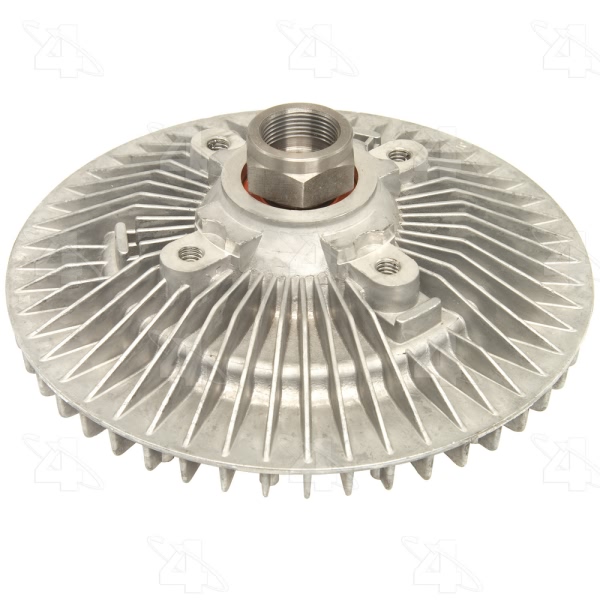

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 7.2 |
| Clutch Type | C - Heavy Duty |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.018 or 1.02 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.25 HEX |
| Mount Dia. MM | 32 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 182.88 or 182.9 |
| Overall Height IN | 2.73 |
| Overall Height MM | 69.5 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.58 |
| Pilot Depth MM | 14.7 |
| Pilot Dia. IN | M24x1.500 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Heavy Duty |
| UPC | 096361460430 |
| Use Type | Heavy |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1994 Land Rover Range Rover | All Trims | All Engines |
| 1995 Land Rover Range Rover | All Trims | 8 Cyl 3.9L |
| 1995 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
