Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46060 |

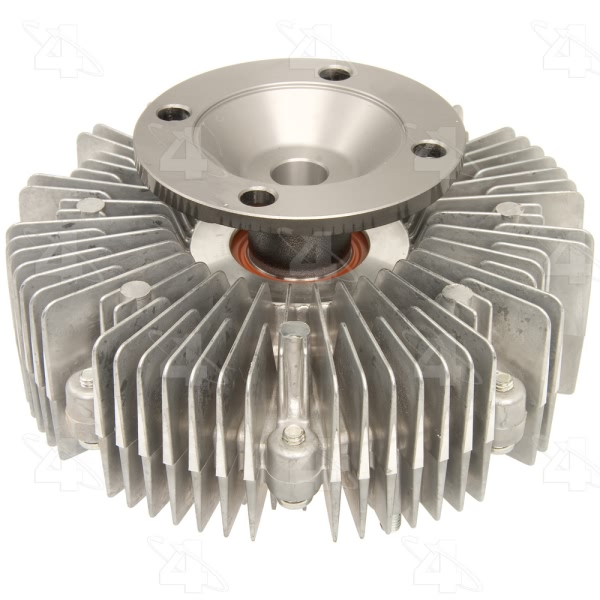

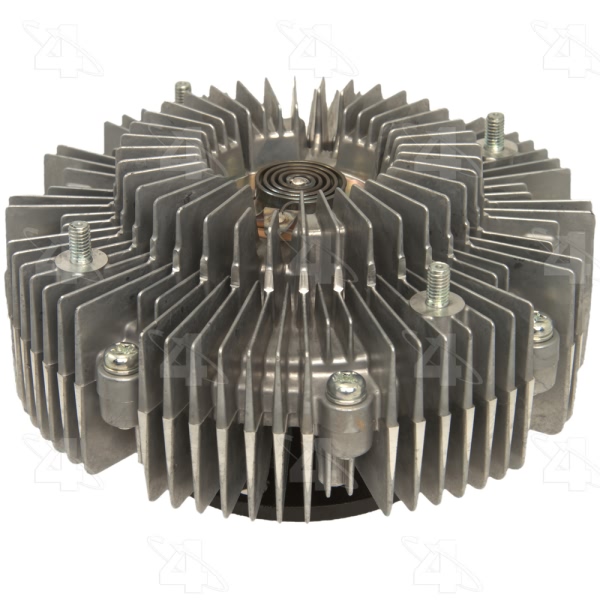

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 STUD |
| Clutch Maximum Diameter | 6.61 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 3.09 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 5.35 |
| Fan Bolt Circle MM | 135.89 or 135.9 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 3.62 |
| Mount Dia. MM | 92 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 167.9 |
| Overall Height IN | 3.77 |
| Overall Height MM | 95.8 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.92 |
| Pilot Depth MM | 23.4 |
| Pilot Dia. IN | .63 to 2.32 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361460607 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2009 Lexus GX470 | All Trims | All Engines |
| 2005-2007 Lexus LX470 | All Trims | All Engines |
| 2004-2009 Toyota 4Runner | All Trims | 8 Cyl 4.7L |
| 2005-2007 Toyota Land Cruiser | All Trims | All Engines |
| 2005-2007 Toyota Sequoia | All Trims | All Engines |
| 2008-2009 Toyota Sequoia | All Trims | 8 Cyl 4.7L |
| 2005-2009 Toyota Tundra | All Trims | 8 Cyl 4.7L |
