Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46070 |

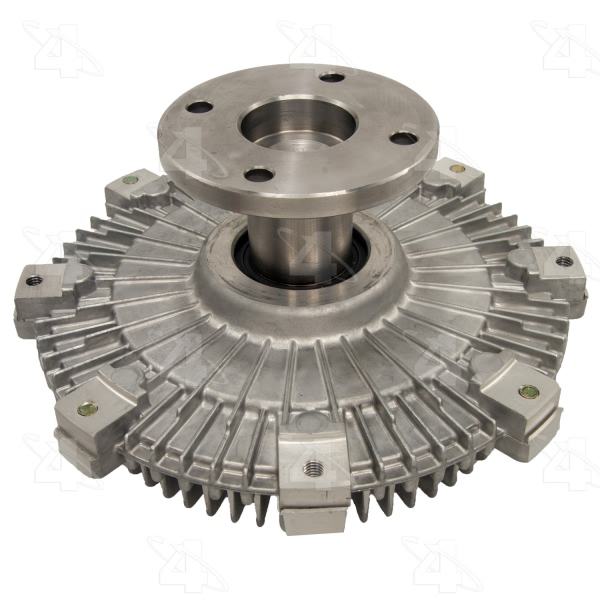

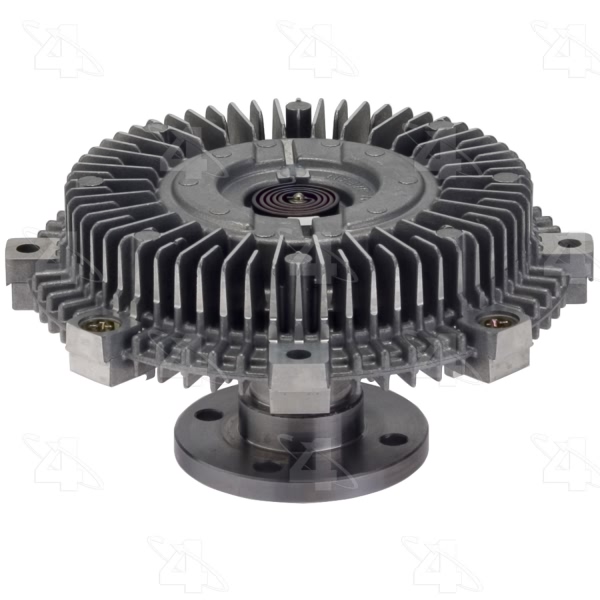

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Maximum Diameter | 7.01 |
| Clutch Type | A - 5" & 6" Import |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 2.66 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 6.48 |
| Fan Bolt Circle MM | 164.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 3.07 |
| Mount Dia. MM | 78 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 178.1 |
| Overall Height IN | 3.56 |
| Overall Height MM | 90.5 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.45 |
| Pilot Depth MM | 11.4 or 11.43 |
| Pilot Dia. IN | 1.25 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Heavy Duty |
| UPC | 096361460706 |
| Use Type | Heavy |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2018 Nissan Frontier | All Trims | 6 Cyl 4.0L |
| 2012-2018 Nissan NV1500 | All Trims | All Engines |
| 2012-2018 Nissan NV2500 | All Trims | 6 Cyl 4.0L |
| 2012-2018 Nissan NV3500 | All Trims | 6 Cyl 4.0L |
| 2005-2007 Nissan Pathfinder | All Trims | All Engines |
| 2008-2012 Nissan Pathfinder | All Trims | 6 Cyl 4.0L |
| 2005 Nissan Xterra | All Trims | 6 Cyl 4.0L |
| 2006-2015 Nissan Xterra | All Trims | All Engines |
| 2009-2012 Suzuki Equator | All Trims | 6 Cyl 4.0L |
