Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46071 |

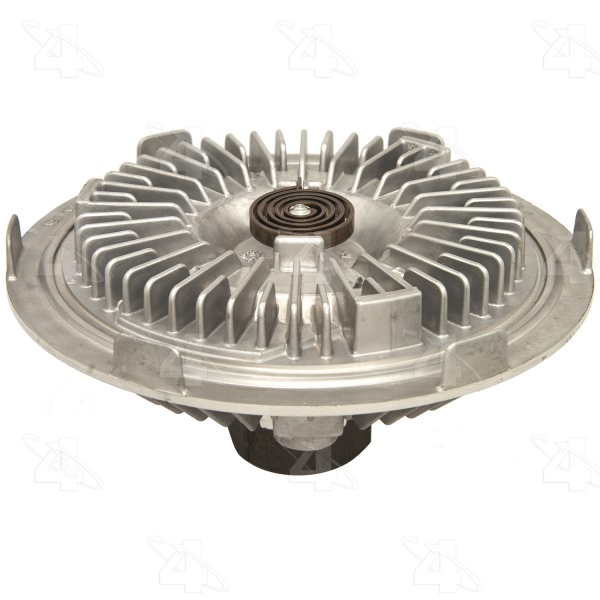

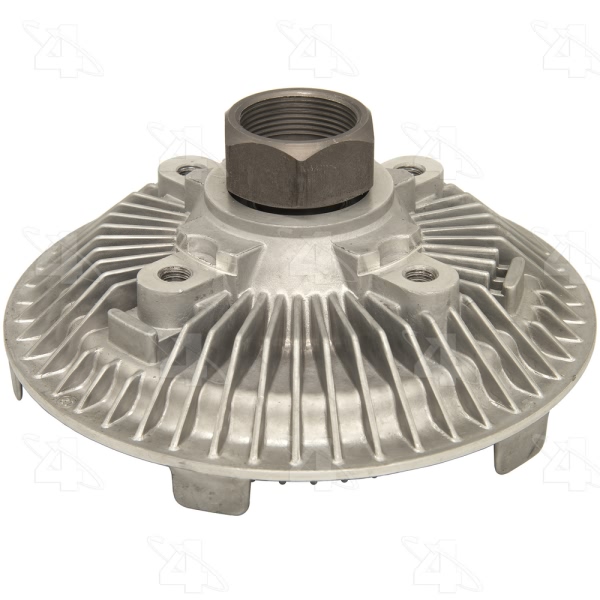

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M8 x 1.25 Hole |
| Clutch Maximum Diameter | 5.000 or 6 |
| Clutch Type | B - Non-Thermal & Std Thermal |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.117 or 1.12 |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.44 HEX |
| Mount Dia. MM | 37 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 152.4 |
| Overall Height IN | 2.84 |
| Overall Height MM | 72.1 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.56 |
| Pilot Depth MM | 14.3 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Standard Duty |
| UPC | 096361460713 |
| Use Type | Standard |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997 Land Rover Defender 90 | All Trims | All Engines |
| 1994-1999 Land Rover Discovery | All Trims | All Engines |
| 1995 Land Rover Range Rover | All Trims | 8 Cyl 3.9L |
| 1995 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
