Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46088 |

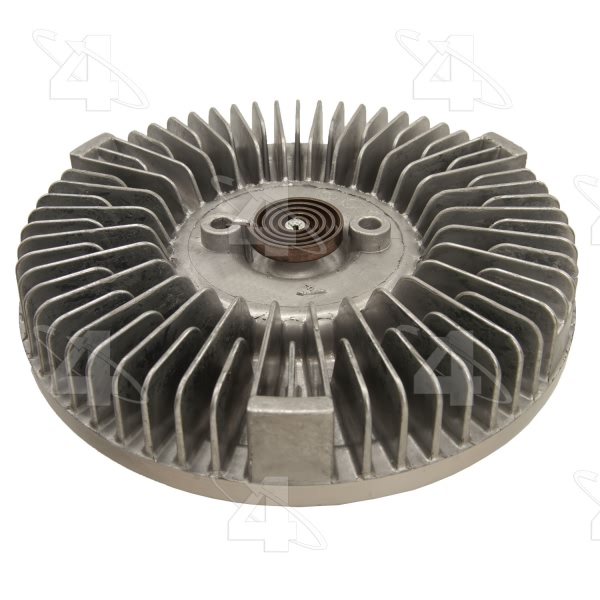

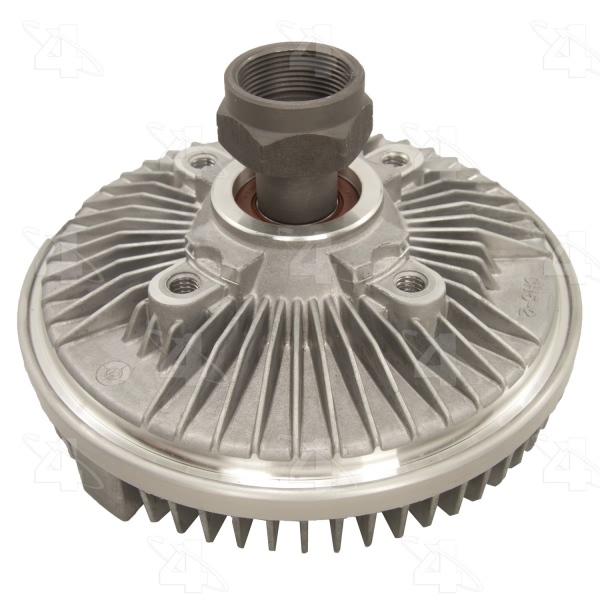

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Maximum Diameter | 6.45 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.75 or 1.753 |
| Electronic Clutch | No |
| Fan Bolt Circle IN | 3.25 |
| Fan Bolt Circle MM | 82.55 or 82.6 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.44 (36mm) HEX |
| Mount Dia. MM | 36 HEX |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| Overall Dia. MM | 188 |
| Overall Height IN | 3.77 |
| Overall Height MM | 95.6 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.78 or 17.8 |
| Rotation | STD |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361460881 |
| Use Type | Severe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2010 Dodge Ram 1500 | All Trims | 8 Cyl 5.7L |
| 2009-2010 Dodge Ram 2500 | All Trims | 8 Cyl 5.7L |
| 2009 Dodge Ram 3500 | All Trims | 8 Cyl 5.7L |
| 2011-2019 Ram 1500 | All Trims | 8 Cyl 5.7L |
| 2016 Ram 1500 | All Trims | 6 Cyl 3.6L |
| 2019 Ram 1500 Classic | All Trims | 8 Cyl 5.7L |
| 2010-2019 Ram 2500 | All Trims | 8 Cyl 5.7L |
| 2011-2018 Ram 3500 | All Trims | 8 Cyl 5.7L |
| 2011-2013 Ram 4000 | All Trims | 8 Cyl 5.7L |
| 2012-2018 Ram 4000 | All Trims | All Engines |
