Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46091 |

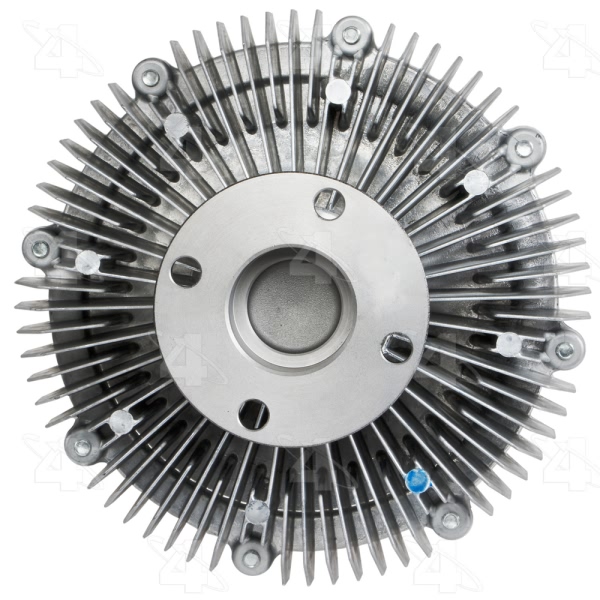

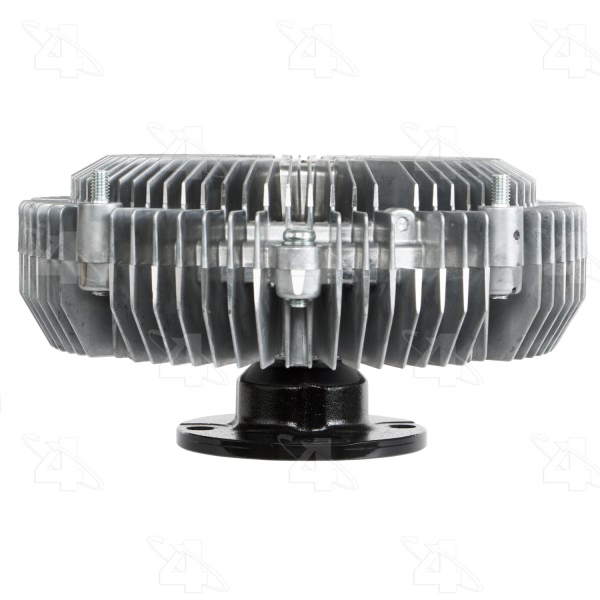

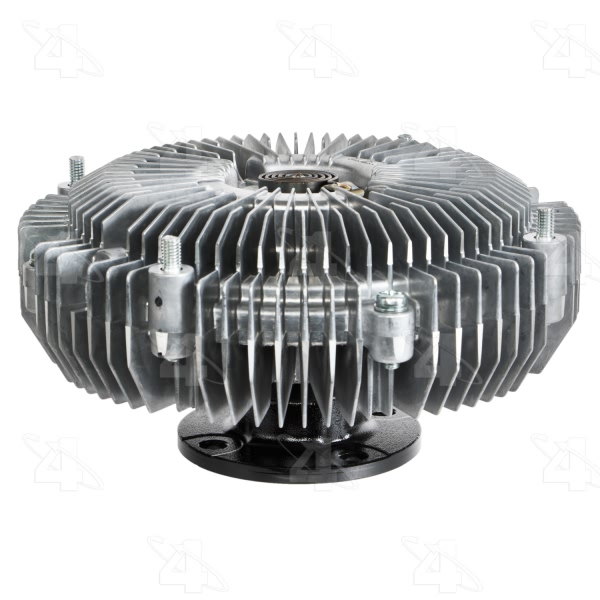

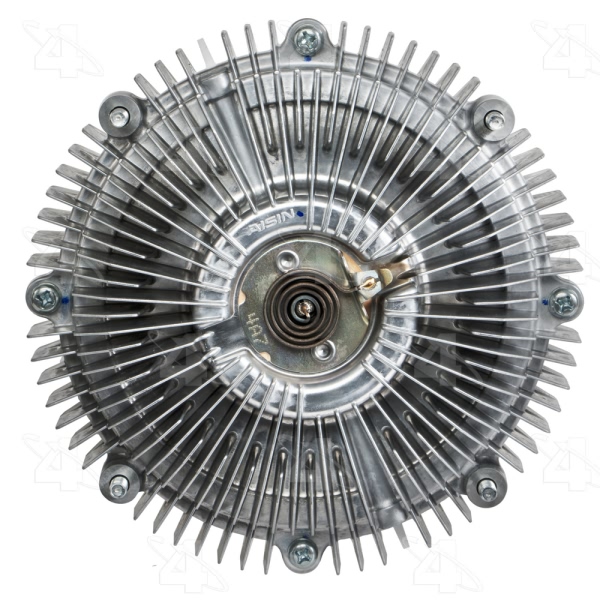

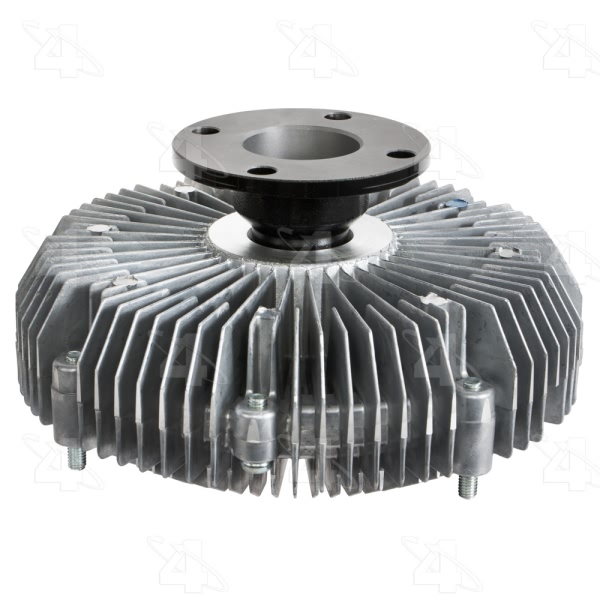

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Quantity | 4 |
| Bolt Thread | M6x1.000 |
| Clutch Maximum Diameter | 7.42 |
| Clutch Type | D - Severe Duty & Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 0.54 |
| Electronic Clutch | No |
| Fan Bolt Circle IN | 6.84 |
| Fan Bolt Circle MM | 173.7 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 3.3 |
| Mount Dia. MM | 83.82 or 84 |
| Mounting Hardware | Not Included |
| Mounting Hole Quantity | 4 |
| Mounting Type | Flange |
| New or Reman | New |
| Overall Dia. MM | 188.5 |
| Overall Height IN | 3.78 or 3.79 |
| Overall Height MM | 96.3 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.64 |
| Pilot Depth MM | 16.3 |
| Pilot Dia. IN | 1.5 |
| Rotation | REV |
| SDS Required | No (135233618) |
| Style | Severe Duty |
| UPC | 096361460911 |
| Use Type | Severe Duty |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2017 Lexus GX460 | All Trims | All Engines |
| 2008-2011 Lexus LX570 | All Trims | All Engines |
| 2013-2018 Lexus LX570 | All Trims | All Engines |
| 2008-2011 Toyota Land Cruiser | All Trims | All Engines |
| 2013-2018 Toyota Land Cruiser | All Trims | All Engines |
| 2008-2009 Toyota Sequoia | All Trims | 8 Cyl 5.7L |
| 2010-2018 Toyota Sequoia | All Trims | All Engines |
| 2007-2014 Toyota Tundra | All Trims | 8 Cyl 5.7L |
| 2010-2014 Toyota Tundra | All Trims | 8 Cyl 4.6L |
| 2015-2016 Toyota Tundra | All Trims | All Engines |
