Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 46118 |

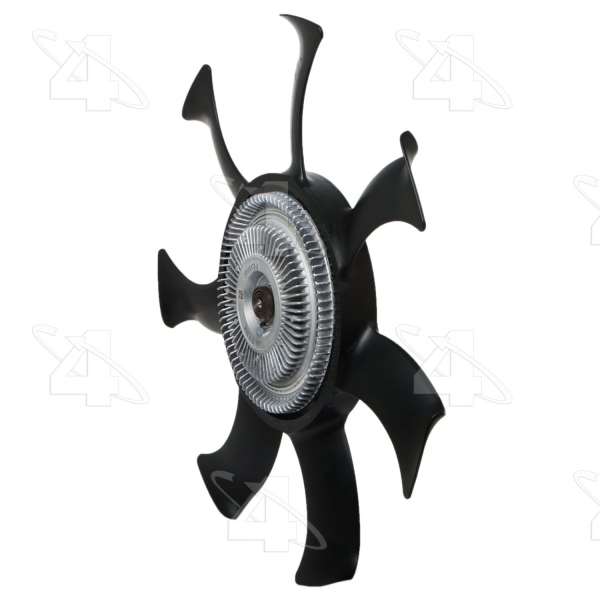

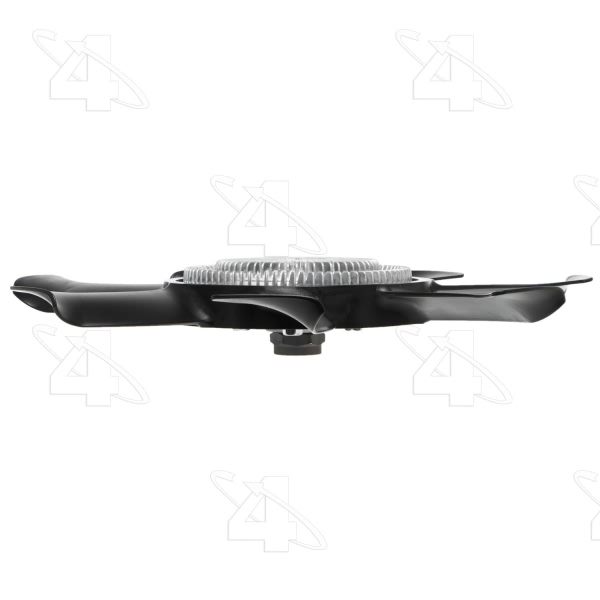

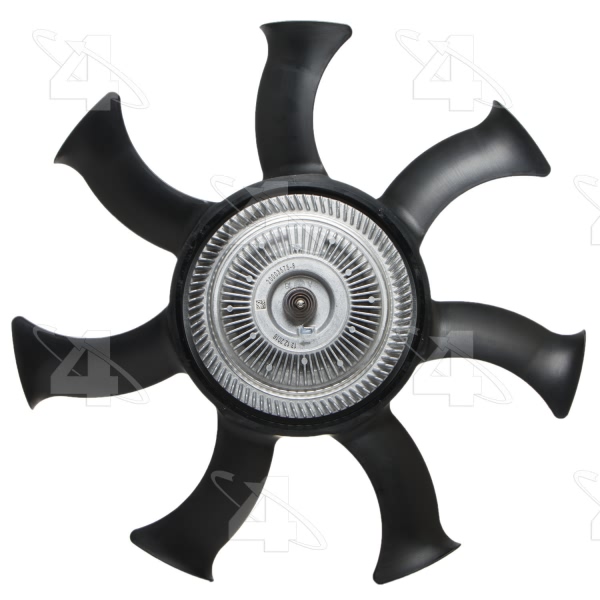

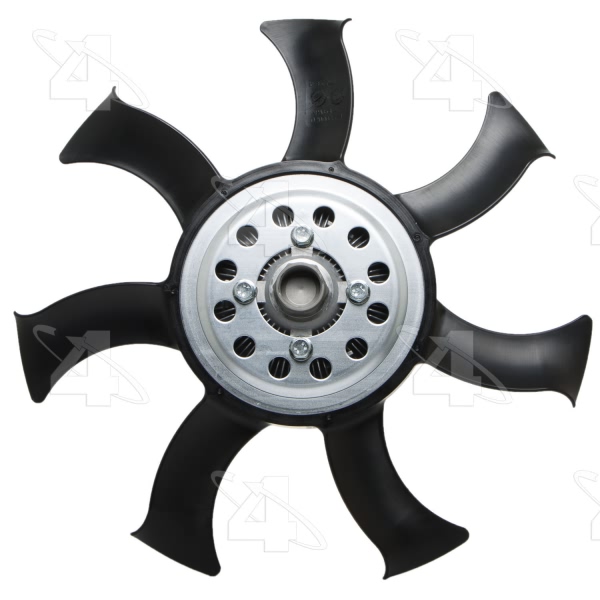

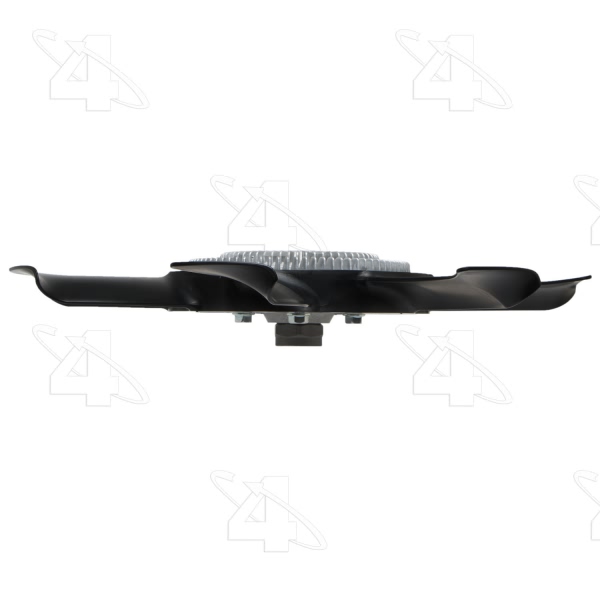

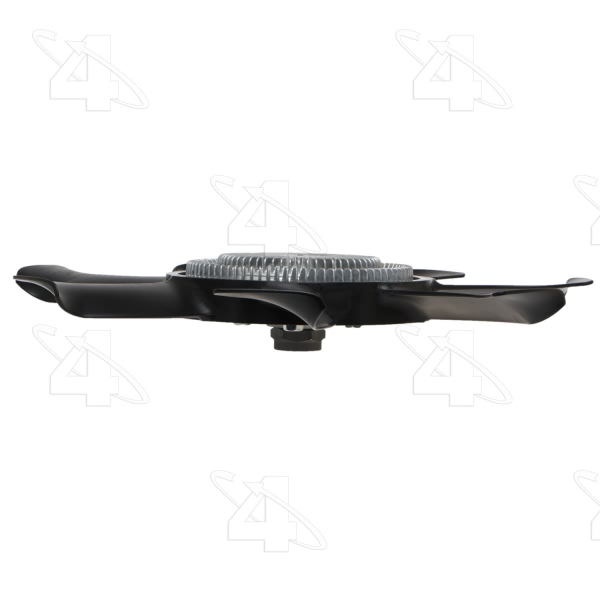

| Part Description | Thermal Engine Cooling Fan Clutch |
| Bolt Comment | Use OE bolts |
| Bolt Hole Quantity | 4 |
| Bolt Thread | M8 x 1.25 Hole |
| Clutch Maximum Diameter | 16.93 |
| Clutch Type | Thermal |
| Color | Raw Aluminum in Color |
| Distance From Clutch To Mounting Flange | 1.06 |
| Drawing Type | C |
| Electronic Clutch | Non Electronic |
| Fan Bolt Circle IN | 3.25 |
| Fan Mount Dia. IN | 2.61 |
| Material | Aluminum |
| Meets / Exceeds OEM | Yes |
| Mount Dia. IN | 1.41 (30mm) HEX |
| Mounting Hardware | Yes |
| Mounting Hole Quantity | 4 |
| Mounting Type | HEX |
| New or Reman | New |
| O.E. Replacement | Yes |
| Overall Height IN | 2.76 |
| Performance Rated | Yes |
| Pilot Depth IN | 0.7 |
| Pilot Depth MM | 17.78 |
| Rotation | STD |
| Style | Heavy Duty |
| UPC | 096361461185 |
| Use Type | Heavy Duty |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2008 Dodge Sprinter 2500 | All Trims | 6 Cyl 3.5L |
| 2007-2008 Dodge Sprinter 3500 | All Trims | 6 Cyl 3.5L |
| 2007-2008 Freightliner Sprinter 2500 | All Trims | 6 Cyl 3.5L |
| 2007-2008 Freightliner Sprinter 3500 | All Trims | 6 Cyl 3.5L |
