Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 39390 |

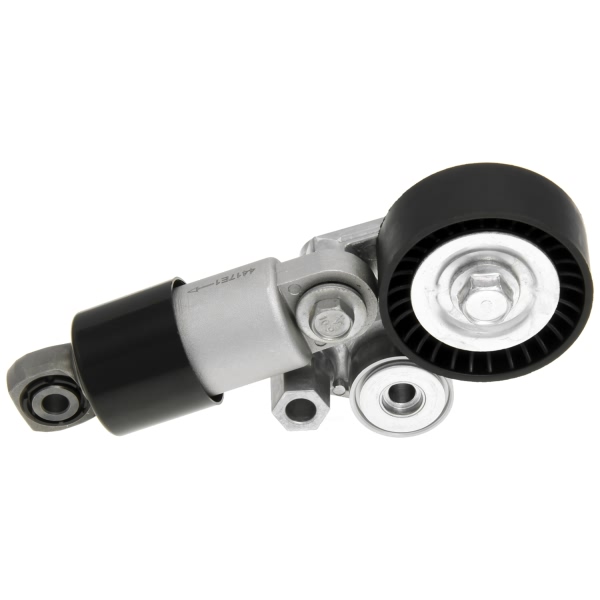

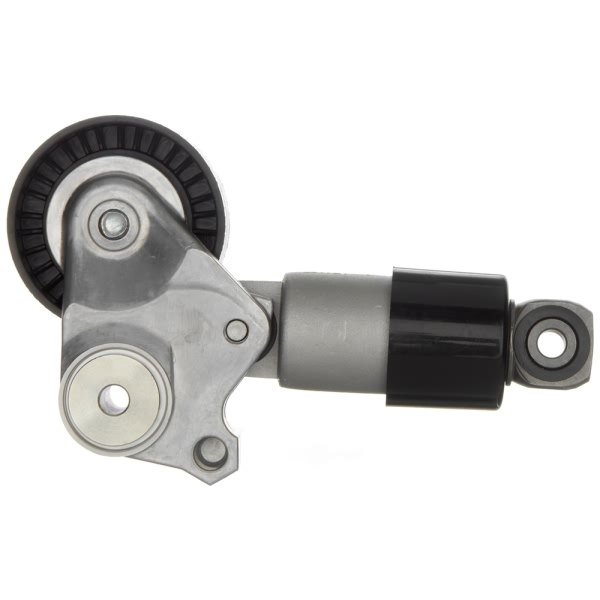

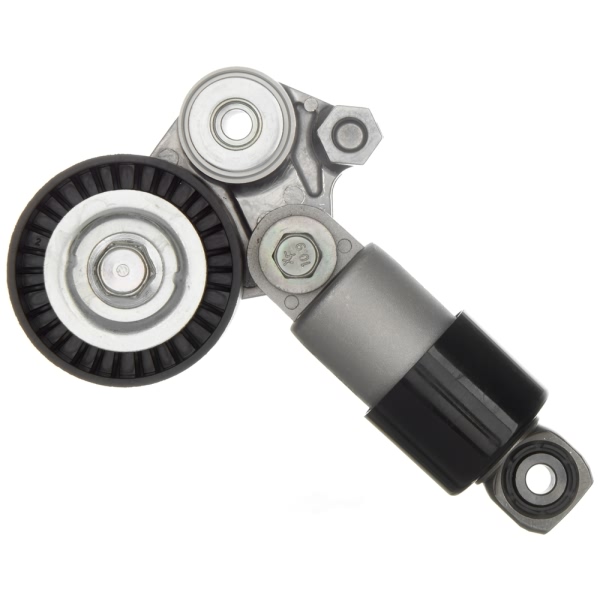

| Part Description | Automatic Belt Tensioner |
| Bearing Bore Inside Diameter 1 | 17 |
| Bearing Bore Inside Diameter 1 (in) | .67 |
| Belt Type | V-Ribbed |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy., Bolt, Hydraulic Damper |
| Material | Thermoplastic |
| Mounting Hole Quantity | 2 |
| OE Comparison Rating | OE Performance |
| Outside Diameter | 2.56 or 65 |
| Pulley 1 Flanged | No |
| Pulley Quantity | 1 |
| UPC | 770075762171 |
| Width | 1 or 25.5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2018 Mazda 3 | All Trims | 4 Cyl 2.0L |
| 2014-2019 Mazda 3 | All Trims | 4 Cyl 2.5L |
| 2012-2018 Mazda 3 Sport | All Trims | 4 Cyl 2.0L |
| 2014-2019 Mazda 3 Sport | All Trims | 4 Cyl 2.5L |
| 2014-2018 Mazda 6 | All Trims | 4 Cyl 2.5L |
| 2016-2018 Mazda CX-3 | All Trims | 4 Cyl 2.0L |
| 2013-2017 Mazda CX-5 | All Trims | 4 Cyl 2.0L |
| 2014-2019 Mazda CX-5 | All Trims | 4 Cyl 2.5L |
| 2016-2018 Mazda CX-9 | All Trims | 4 Cyl 2.5L |
| 2016-2017 Mazda MX-5 | All Trims | 4 Cyl 2.0L |
