Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Gates |
| Part Number | 26223 |

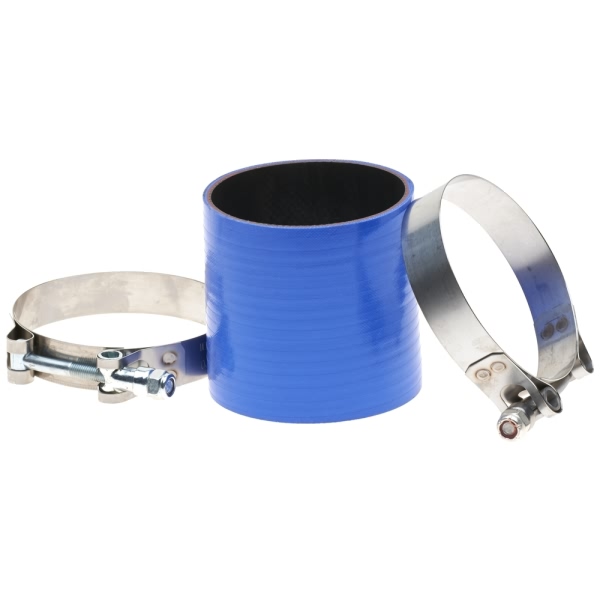

| Part Description | Cold Side OE Improved Turbocharger Hose Kit |
| Centerline Length | 3.1875 |
| Centerline Length (mm) | 81 |
| Clamp 1 - Band Width | 0.75" |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
| Clamp 1 - Clamping Range (in) | 3.125 - 3.4375 |
| Clamp 1 - Clamping Range (mm) | 79.5 - 87.4 |
| Clamp 1 - Nut Type | 0.4375" Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width | 0.75" |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | 0.25" - 28 Plated Steel Male Pipe Thread |
| Clamp 2 - Clamping Range (in) | 3.125 - 3.4375 |
| Clamp 2 - Clamping Range (mm) | 79.5 - 87.4 |
| Clamp 2 - Nut Type | 0.4375" Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Inside Diameter 1 (in) | 3 |
| Inside Diameter 1 (mm) | 76 |
| Inside Diameter 2 (in) | 3 |
| Inside Diameter 2 (mm) | 76 |
| UPC | 770075601722 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Ford E-350 Club Wagon | All Trims | 8 Cyl 6.0L |
| 1998 Ford E-350 Econoline | All Trims | 8 Cyl 7.3L |
| 1998 Ford E-350 Econoline Club Wagon | All Trims | 8 Cyl 7.3L |
| 2004-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 6.0L |
| 2000-2003 Ford Excursion | All Trims | 8 Cyl 7.3L |
| 2003-2005 Ford Excursion | All Trims | 8 Cyl 6.0L |
| 1999-2003 Ford F-250 Super Duty | All Trims | 8 Cyl 7.3L |
| 2003-2004 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
| 2006-2007 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
| 1999-2003 Ford F-350 Super Duty | All Trims | 8 Cyl 7.3L |
