Genuine Lexus 77016-24010
Tube Sub-Assembly, Fuel

Customer Questions & Expert Answers (1)

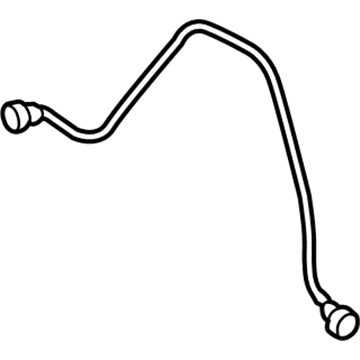

Lexus 77016-24010 Tube Sub-Assembly, Fuel
  • Part Description
    Tube Sub-Assy, Fuel Return Vent
  • Brand
    Lexus
Select vehicle to make sure this part fits
Year
Make
Model
Or
$39.86 MSRP: $51.11
You Save: $11.25 (23%)
Ships in 1-3 Business Days
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 77016-24010 Tube Sub-Assembly, Fuel is Ref No. 26 in the diagram below

    Fuel Supply Tube Sub-Assembly, Fuel Diagram for 7701624010
    The diagram listed above is for your reference. View diagram and OE catalog for your vehicle

    Related Parts for 77016-24010

  • Product Specifications

    BrandGenuine Lexus
    Manufacturer Part Number77016-24010
    Part DescriptionTube Sub-Assy, Fuel Return Vent
    Other DescriptionTube Sub-Assembly, Fuel
    Other NamesReturn Tube; Tube Sub-Assembly, Fuel Return Vent
    Item Weight0.70 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerLexus
    SKU77016-24010
    WarrantyThis genuine Lexus part is guaranteed by Lexus's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim & Engine Important vehicle option details
    2016-2020 Lexus GS F8 Cyl 5.0L2URGSE; URL10L-FEZRHA
    2021-2024 Lexus IS300LUX|8 Cyl 5.0L2URGSE; USE30L-BEZLHA
    2021-2024 Lexus IS350LUX|8 Cyl 5.0L2URGSE; USE30L-BEZLHA
    2022-2024 Lexus IS500LUX|8 Cyl 5.0L2URGSE; USE30L-BEZLHA
    2015-2024 Lexus RC F8 Cyl 5.0L2URGSE; USC10L-FCZRHA

  • Customer Questions & Expert Answers

    Q:
    Please advise if 7701624010 fits my vehicle.
    By Customer
    A:
    Please Select Your Car first if you want to see if 7701624010 is correct.
    By Omar
    Lexus Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Lexus 77016-24010 at AutoPartsPrime, Your Right Choice

  • Unleash the full potential of your Lexus with the OEM Tube Sub-Assembly, Fuel, # 77016-24010! Manufactured by Lexus, this part is designed to the exact specifications and quality of the original component, ensuring the best fitment for your vehicle. Experience the unbeatable reliability and durability that only genuine Lexus parts can offer, with the added peace of mind of a factory warranty and the LOWEST prices guaranteed. It fits Lexus IS300, IS350, RC F.
  • At AutoPartsPrime, we know that your vehicle's performance is essential to your daily life. That's why we've made it easier than ever to get the parts you need! With just a few clicks, you can access our extensive collection of OEM Lexus parts, all packed and shipped from trusted local dealers. You'll receive your parts with exceptional performance at your doorstep within just 3 days! Don't settle for anything less than the best parts for your Lexus. Take advantage of our unbeatable prices and expert customer support. Place your order today and you won't regret it!
